8HY Series

20mm/NEMA8 Bipolar Hybrid 1,8° Stepper (0,018-0,040 Nm)

2 phases 1.8° hybrid stepper motor is the most popular in market and has the most extensive product coverage, as a result of a series of optimizations and improvements, its performance and value has been greatly improved.


  • Phases 2
  • Steps / Revolution 200
  • Step Accuracy ±5%
  • Shaft Load (20,000 Hours at 1000 RPM)
  • Axial 6 N (1.3 Lbs.) Push
  • 25 N (5.6 Lbs.) Pull
  • Radial 18 N (4 Lbs.) At End of Shaft
  • IP Rating 40
  • Approvals RoHS
  • Operating Temp. -20°C to +50°C
  • Insulation Class B, 130°C
  • Insulation Resistance 100 MegOhms

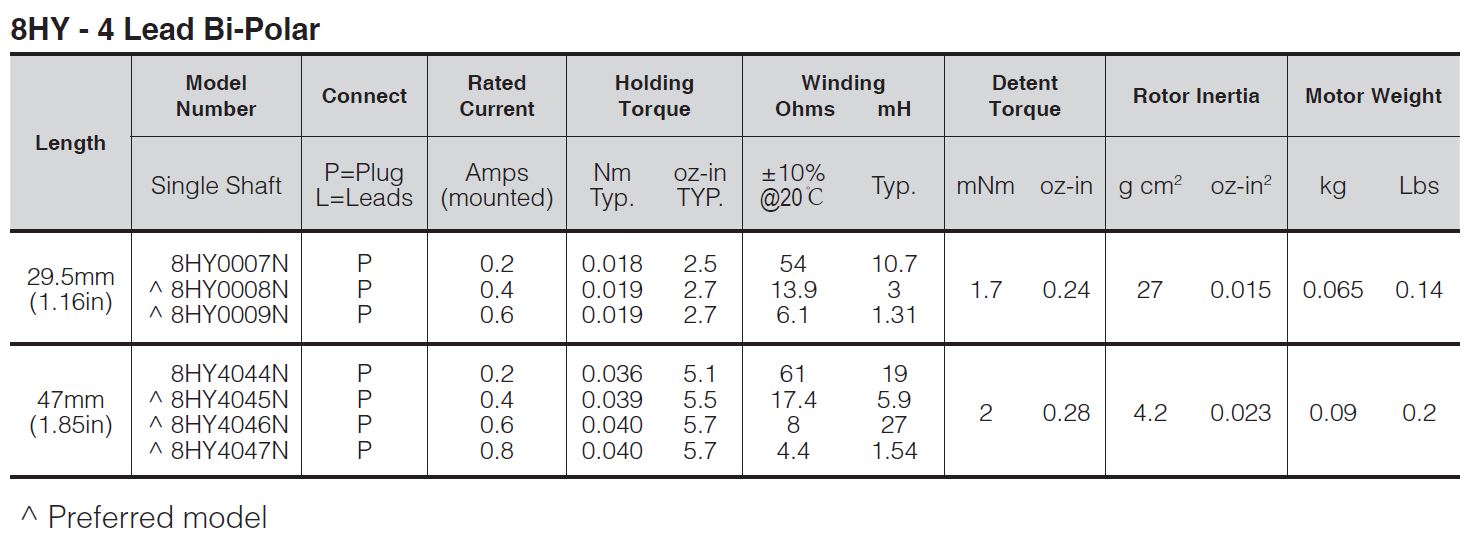

Technical Data

Available Bipolar Models:

  • 8HY0007N
  • 8HY0008N
  • 8HY0009N
  • 8HY4044N
  • 8HY4045N
  • 8HY4046N
  • 8HY4047N


  • 4 Lead Cable: Part Number 4634 1402 03659
