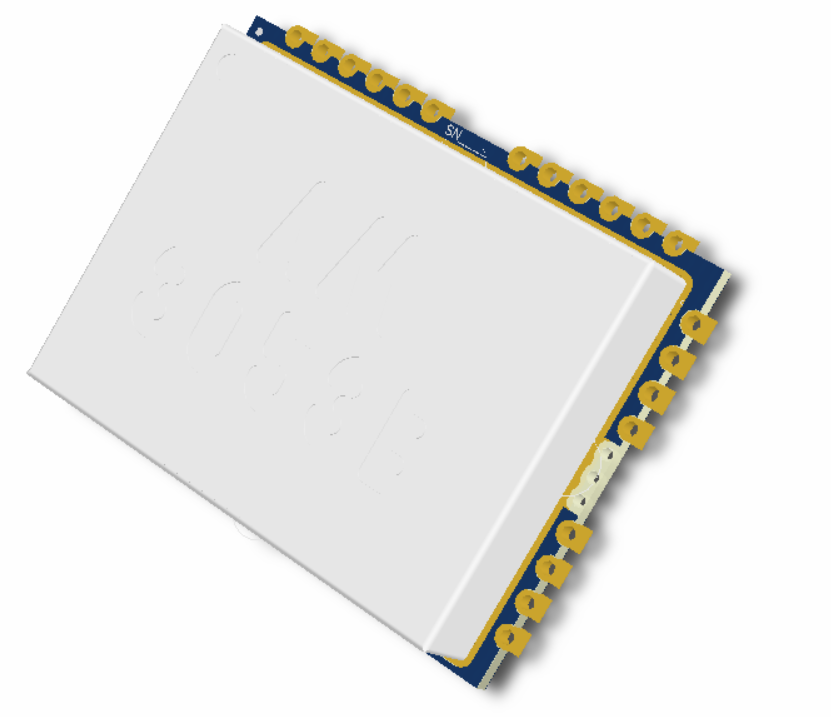

AM3073A is a shielded A/D driver module that provides amplification and anti-aliasing filtering of the 1.0 GHz IF output of the AM9017 tuner module. The AM3073A offers 500 Mhz of bandwidth and 25 dB of gain packaged in a 18mm x 24mm x 4mm package while operating on +5.0V from -40C to +85C.
|
Function |
Freq. (GHz) | NF (dB) | IIP3 (dBm) |
Bandwidth (MHz) |
Output | Power Consumption (W) |
Package |
Package |
| A/D Driver | 0,75 - 1,25 | 7 | 12 |
500 |
1 GHz filtered | 1 | 0.71" x 0.85" x 0.16" |
12.5 mm QFN |
