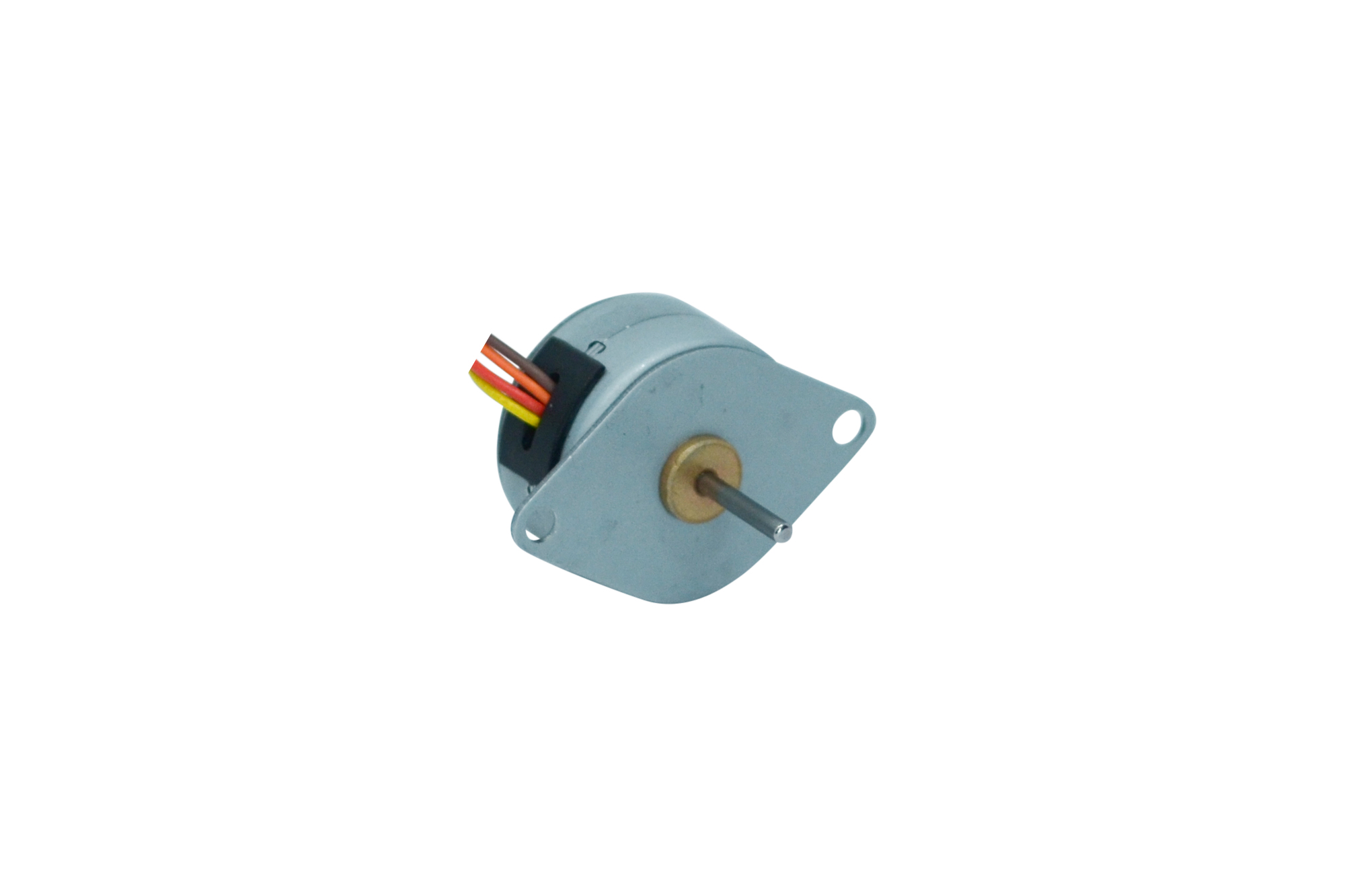

GOOT PM Stepper Motor, 25mm, 0.8Ncm, 1A
Battery-powered devices require a compact solution, including the drive. The GOOT permanent magnet stepper motors offered by Trinamic have a custom motor coil optimized for microstepping at low voltage. With fewer windings of a thicker wire, these small stepper motors deliver excellent performance for improved user experience.
GOOT PM Permanent Magnet Series:
|
PM20S-020-124 |
PM25S-048-314 |
PM35S-048-324F |
PM42L-048-285D |
|
| Size [mm] |
20 |
25 | 35 | 42 |
| Torque [Ncm] |
0.8 |
0.8 |
2.8 |
4 |
|
Phase Current |
0.75 |
1 |
0.75 |
1 |
|
Steps/Rev. |
20 |
48 |
48 |
48 |
|
Width |
31 | 38 |
45 |
52 |
|
Height |
20 | 25 |
35 |
42 |
|
Length |
15 | 15 |
15 |
22 |
|
Weight |
24 | 30 |
63 |
123 |
Downloads:
PM20S-020-124 specification (pdf)
PM25S-048-314 specification (pdf)
PM35S-048-324F specification (pdf)
PM42L-048-285D specification (pdf)
