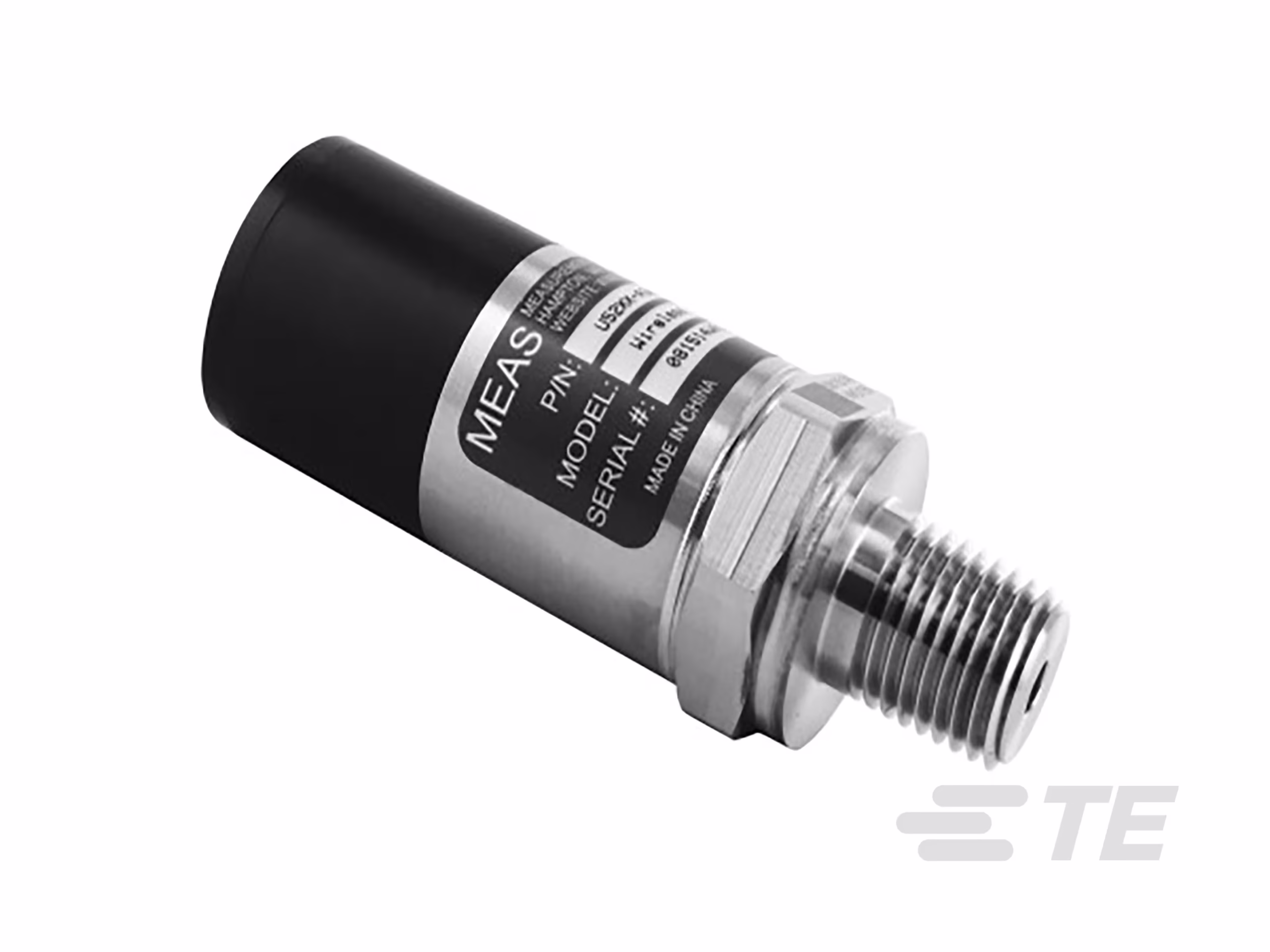

The U5600 series from TE Connectivity’s Sensors Business Unit sets the price and performance standard for wireless pressure transducers used in demanding industrial and smart factory applications. The modular U5600 wireless pressure transducer from our UltraStable line is enclosed in a stainless steel and PBT housing. This high accuracy, 24-bit ADC digital output wireless transducer eliminates hard wiring and provides remote process control and monitoring via Bluetooth® 4.2 Wireless Communication. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The wetted surfaces of the pressure ports are made from 316L stainless steel. The port design uses no internal O-rings or organics exposed to the pressure media which provides excellent durability and long-term performance.
| Product Number | Internal Product Number | Pressure Type | Pressure | Supply Voltage Range | Operating Temperature Range | Port Fitting |
| U5600-000005-015PA | 20008482-00 | Absolute | 1.034 bar | 2.7 V | -20 – 60 °C | 1/4-18 NPT |
| U5600-000005-030PA | 10202022-00 | Absolute | 2 bar | 2.7 V | -20 – 85 °C | 1/4 MNPT |
| U5600-000005-100PA | 10202023-00 | Absolute | 7 bar | 2.7 V | -20 – 85 °C | 1/4 MNPT |
| U5600-000005-300PA | 10202024-00 | Absolute | 20 bar | 2.7 V | -20 – 85 °C | 1/4 MNPT |
| U5600-00000E-007BA | 10202026-00 | Absolute | 7 bar | 2.7 V | -20 – 85 °C | 1/4 MBSPP |
| U5600-00000E-020BA | 10202027-00 | Absolute | 20 bar | 2.7 V | -20 – 85 °C | 1/4 MBSPP |
| U5600-00000U-010BG | 10216264-00 | Gauge | 10 bar | 3 V | -20 – 85 °C | G1/4 DIN3852 Form E Gasket DIN3869-14 NBR |
| U5600-010006-015PC | 20004064-02 | Compound | 1.034 bar | 3 V | -20 – 85 °C | 1/8-27 NPT |
