EB100

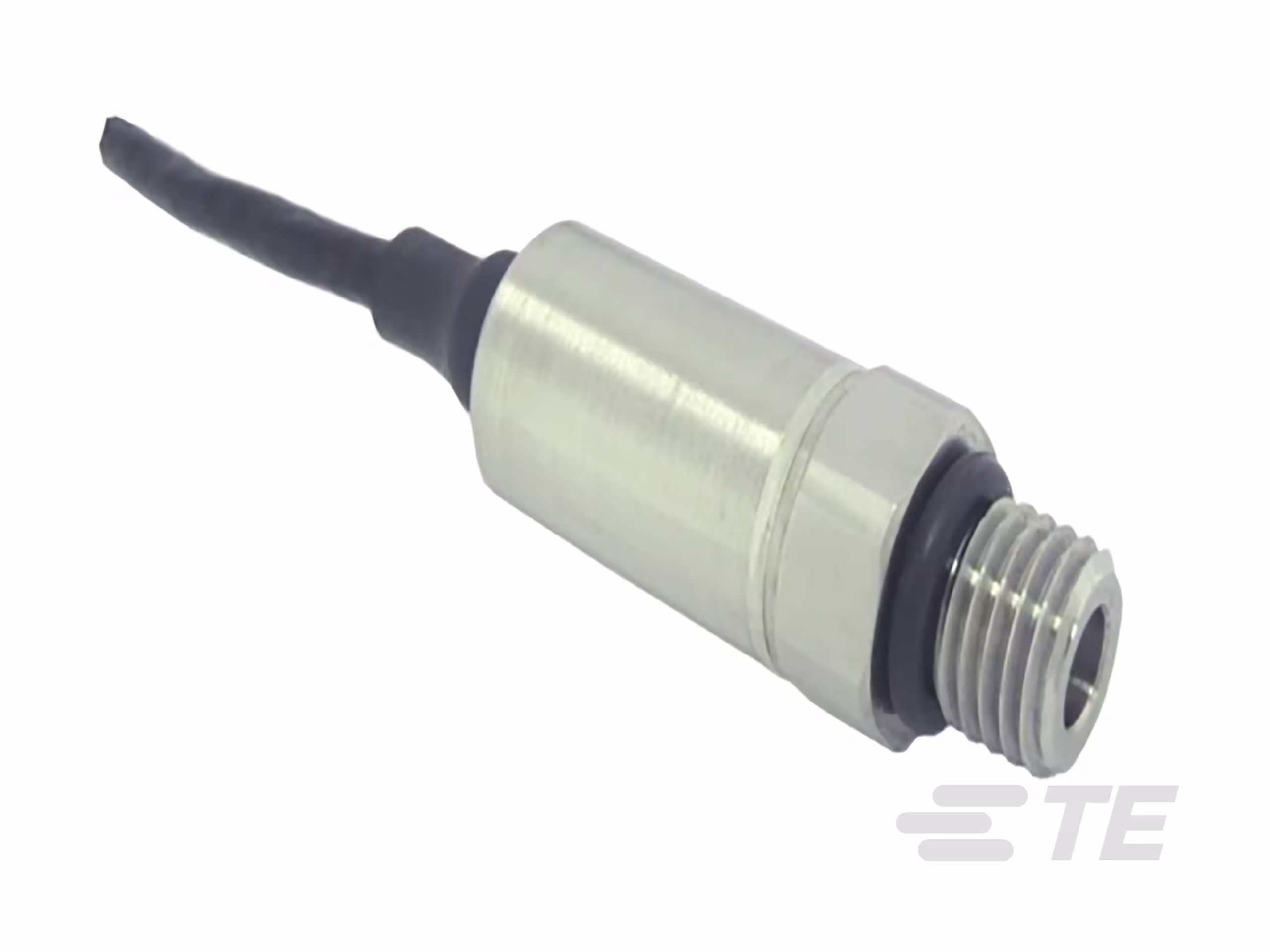

The EB100 pressure transducer is the smallest design proposed by TE Connectivity from the UltraStable line. It sets a new price / performance standard for demanding commercial and heavy industrial applications where high accuracy, small size and low weight are desirable. This series is suitable for measurement of liquid or gas pressure, including difficult media such as contaminated water, steam, and mildly corrosive fluids.

The EB100 uses TE’s UltraStable technology that provides stability over a wide temperature range and performance previously available only in much higher priced sensors. The UltraStable technology employs a silicon-based strain gage, isolated from the media by an oil-filled capsule and a stainless steel diaphragm. The high stability offers excellent repeatability and minimal hysteresis.

The 100% stainless steel media isolation covers all but the most corrosive environments, offering excellent durability. Custom OEM designs are available including various ports and output options.

On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

Technical Data

Key Specifications

Ranges from 20 to 350 bar (300 to 5,000 psi)
Unique pressure reference version Absolute
Operating temperature up to 125 °C (257 °F)
Combined errors of linearity, hysteresis & repeatability ±0.25%
0.5 to 4.5V amplified output

Product Configurations

Product Number	Internal Product Number	Pressure	Pressure Accuracy	Electrical Connection	Port Fitting
EB1US-00000S-350BA	20009225-02	350 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1UM-00000N-020BA	EB1UM-00000N-020BA	20 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1UM-00000N-070BA	EB1UM-00000N-070BA	70 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1UM-00000N-200BA	EB1UM-00000N-200BA	200 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1UM-00000P-020BA	EB1UM-00000P-020BA	20 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1UM-00000P-05KPA	EB1UM-00000P-05KPA	344.73 bar	±0.25% Span	Cable 5 m	M10x1 Male
EB1UM-00000P-200BA	EB1UM-00000P-200BA	200 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1UM-00000Q-03KPA	EB1UM-00000Q-03KPA	200 bar	±0.25% Span	Cable 1 m	5/16-24 UNF Male
EB1UM-00000S-020BA	EB1UM-00000S-020BA	20 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1UM-00000S-03KPA	EB1UM-00000S-03KPA	200 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1UM-00000S-100BA	EB1UM-00000S-100BA	100 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1UM-00000S-1K5PA	EB1UM-00000S-1K5PA	100 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1UM-00000S-200BA	EB1UM-00000S-200BA	200 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1UM-00000V-300PA	EB1UM-00000V-300PA	20 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1UM-00001P-1K5PA	EB1UM-00001P-1K5PA	100 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1UM-00001V-03KPA	20008871-02	200 bar	±0.35% FSO	Cable 1 m	10-32 UNF Male
EB1UM-00001V-300PA	EB1UM-00001V-300PA	20 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1UM-00001V-500PA	20007153-00	35 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1UP-00000N-020BA	EB1UP-00000N-020BA	20 bar	±0.25% Span	Cable 5 m	M5x0.8 Male
EB1UP-00000N-070BA	EB1UP-00000N-070BA	70 bar	±0.25% Span	Cable 5 m	M5x0.8 Male
EB1UP-00000P-03KPA	EB1UP-00000P-03KPA	200 bar	±0.25% Span	Cable 5 m	M10x1 Male
EB1UP-00000S-200BA	EB1UP-00000S-200BA	200 bar	±0.25% Span	Cable 5 m	M8x1 Male
EB1UP-00001N-05KPA	20006890-00	350 bar	±0.25% Span	Cable 5 m	M5x0.8 Male
EB1UP-00001V-05KPA	20008871-00	350 bar	±0.25% Span	Cable 5 m	10-32 UNF Male
EB1UP-00001V-500PA	20008872-00	35 bar	±0.25% Span	Cable 5 m	10-32 UNF Male
EB1US-000001V-020BA	20009225-01	20 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1US-000001V-200BA	20009225-00	200 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1US-00000N-020BA	EB1US-00000N-020BA	20 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1US-00000N-035BA	EB1US-00000N-035BA	35 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1US-00000N-100BA	EB1US-00000N-100BA	100 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1US-00000N-200BA	EB1US-00000N-200BA	200 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1US-00000N-350BA	EB1US-00000N-350BA	350 bar	±0.25% Span	Cable 1 m	M5x0.8 Male
EB1US-00000P-035BA	EB1US-00000P-035BA	35 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1US-00000P-070BA	EB1US-00000P-070BA	70 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1US-00000P-100BA	EB1US-00000P-100BA	100 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1US-00000P-200BA	EB1US-00000P-200BA	200 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1US-00000P-350BA	EB1US-00000P-350BA	350 bar	±0.25% Span	Cable 1 m	M10x1 Male
EB1US-00000S-020BA	EB1US-00000S-020BA	20 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1US-00000S-035BA	EB1US-00000S-035BA	35 bar	±0.25% Span	Cable 1 m	M8x1 Male
EB1US-00000V-01KPA	EB1US-00000V-01KPA	70 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1US-00000V-03KPA	EB1US-00000V-03KPA	200 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1US-00000V-300PA	EB1US-00000V-300PA	20 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1US-00000V-500PA	EB1US-00000V-500PA	35 bar	±0.25% Span	Cable 1 m	10-32 UNF Male
EB1US-00000X-1K5PA	EB1US-00000X-1K5PA	100 bar	±0.25% Span	Cable 1 m	3/8-24 UNF Male
EB1US-00000X-500PA	EB1US-00000X-500PA	35 bar	±0.25% Span	Cable 1 m	3/8-24 UNF Male
EB1US-00001V-1K5PA	10211989-00	100 bar	±0.25% Span	Cable 5 m	10-32 UNF Male
EB1US-00001X-05KPA	EB1US-00001X-05KPA	350 bar	±0.25% Span	Cable 1 m	3/8-24 UNF Male

Applications

Motor Sport: Oil, Coolant, Fuel, Brake Systems
Hydraulic/Pneumatic Systems
Automotive Test Stands
Military/Aerospace Test Stands
