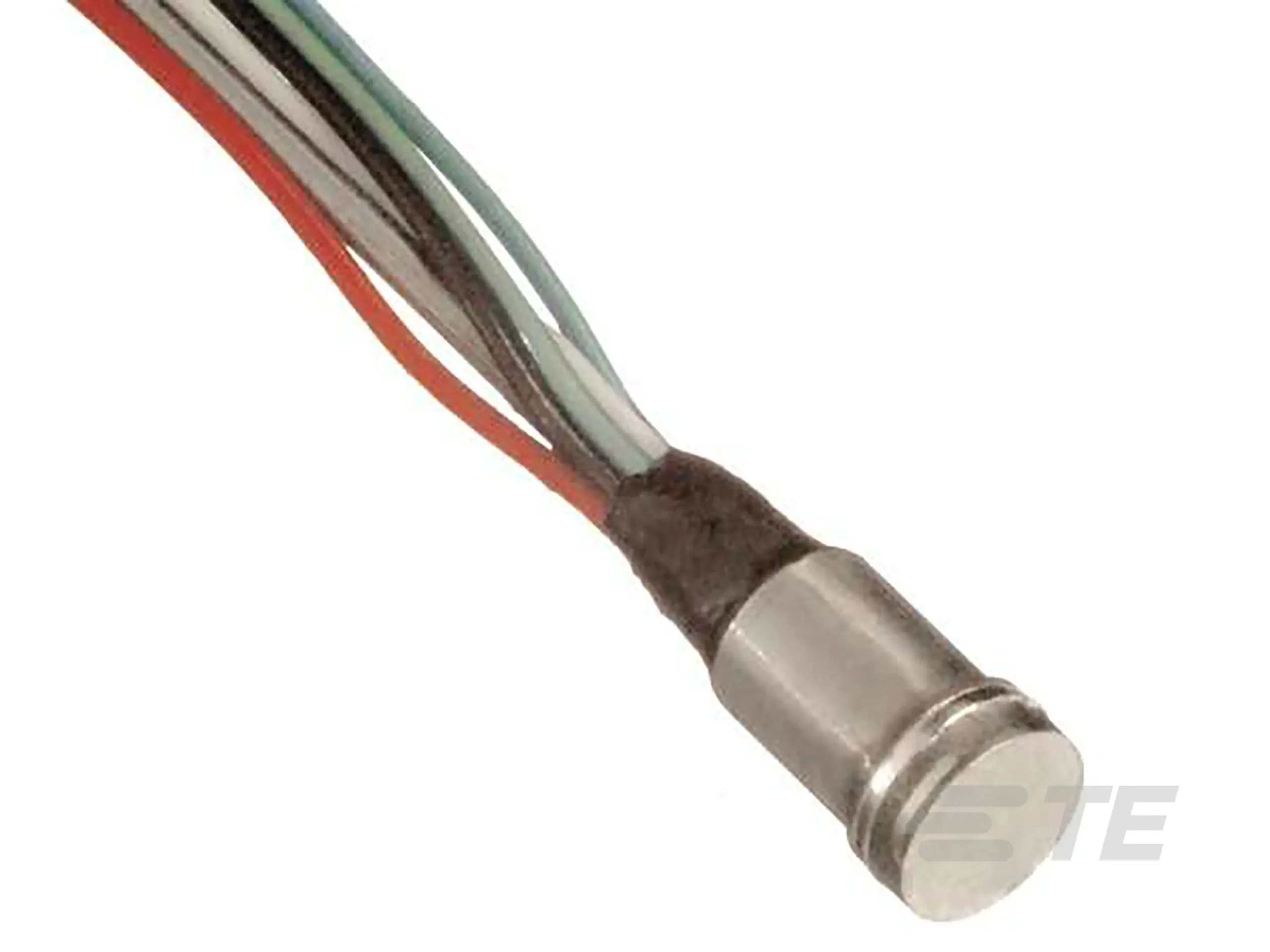

The EPB series are miniature flush mount pressure sensors manufactured of stainless steel for general use applications.
The EPB’s frequency resonance goes from 55 kHz up to 400 kHz and makes it suitable for both static and dynamic measurements.
The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Centre stands ready to provide a custom design as required.
Another version, the EPB-PW has been designed for pore water monitoring.
On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.
| Product Number | Internal Product Number | Pressure Type | Output Signal Type | Pressure | Proof Pressure Range | Electrical Connection |
| EPB-B01-1.5B-/L2M | 20010873-00 | Gauge | 50 mV | 1.5 bar | 2X FS | Cable 2 m |
| EPB-B03-50P-/Z2/L6F | 20011180-00 | Absolute | 75 mV | 3.5 bar | 2X FS | Cable 6 m |
| EPB-C13-0.35B | 11026369-00 | Absolute | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-0.35B-/M0.3M | 11025732-00 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-0.35B-/V5 | 11029451-00 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-0.35B-/Z0 | 11031611-00 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-0.35B-/Z1 | 11030275-00 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-0.35B-/Z2 | 11025733-00 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-C11-0.35B | 11030277-00 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-C11-0.35B-/Z2/V5/L2M | 11016479-00 | Gauge | 10 mV | .35 bar | 10X FS | Cable 2 m |
| EPB-C11-0.35B-/L3M | 10220882-00 | Gauge | 10 mV | .35 bar | 10X FS | Cable 3 m |
| EPB-C12-0.35B | 11025735-00 | Sealed | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B02-0.35B-/Z2/C | 11025829-00 | Sealed | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-C13-0.7B | 11030278-00 | Absolute | 20 mV | .7 bar | 5X FS | No Connector |
| EPB-B02-0.7B | 11030279-00 | Sealed | 20 mV | .7 bar | 5X FS | No Connector |
| EPB-C12-0.7B | 11030960-00 | Sealed | 20 mV | .7 bar | 5X FS | No Connector |
| EPB-B03-1.5B | 11030280-00 | Absolute | 50 mV | 1.5 bar | 2X FS | No Connector |
| EPB-B01-1.5B-/Z2 | 11028825-00 | Gauge | 50 mV | 1.5 bar | 2X FS | No Connector |
| EPB-C11-1.5B | 11026647-00 | Gauge | 50 mV | 1.5 bar | 2X FS | No Connector |
| EPB-B02-1.5B | 11030281-00 | Sealed | 50 mV | 1.5 bar | 2X FS | No Connector |
| EPB-B03-100P | EPB-100PA-C20001 | Absolute | 125 mV | 7 bar | 2X FS | No Connector |
| EPB-B02-100P | EPB-100PS-C20001 | Sealed | 125 mV | 7 bar | 2X FS | No Connector |
| EPB-C12-100P-/L10F | EPB-100PS-C20003 | Sealed | 125 mV | 7 bar | 2X FS | Cable 10 ft |
| EPB-C11-10P | EPB-10PG-C10003 | Gauge | 20 mV | .7 bar | 5X FS | No Connector |
| EPB-B01-10P | EPB-10PG-C20001 | Gauge | 20 mV | .7 bar | 5X FS | No Connector |
| EPB-C13-150B | EPB-150BA-C20004 | Absolute | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-C13-150B-/X | EPB-150BA-C20005 | Absolute | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-B03-150B-/V5/Z4/L1.5M | EPB-150BA-C20008 | Absolute | 125 mV | 150 bar | 2X FS | Cable 1.5 m |
| EPB-C11-150B-/L5M | EPB-150BG-C20005 | Gauge | 125 mV | 150 bar | 2X FS | Cable 5 m |
| EPB-C12-150B-/L2M | 10220312-00 | Sealed | 125 mV | 150 bar | 2X FS | Cable 2 m |
| EPB-C13-15B-/X | EPB-15BA-C20004 | Absolute | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-B03-15B-/Z4/M0.15M/V5 | EPB-15BA-C20006 | Absolute | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-C11-15B | EPB-15BG-C20003 | Gauge | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-C12-15B | EPB-15BS-C20003 | Sealed | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-B02-15B-/Z2 | EPB-15BS-C20009 | Sealed | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-B01-15P | EPB-15PG-C20001 | Gauge | 30 mV | 1 bar | 3.5X FS | No Connector |
| EPB-C12-15P | EPB-15PS-C20003 | Sealed | 30 mV | 1 bar | 3.5X FS | No Connector |
| EPB-B02-15P-/L05M/X | EPB-15PS-C20004 | Sealed | 30 mV | 1 bar | 3.5X FS | Cable 5 m |
| EPB-B03-1B | EPB-1BA-C20001 | Absolute | 30 mV | 1 bar | 3.5X FS | No Connector |
| EPB-B01-1B | EPB-1BG-C20001 | Gauge | 30 mV | 1 bar | 3.5X FS | No Connector |
| EPB-C11-1B-/L4M | EPB-1BG-C20005 | Gauge | 30 mV | 1 bar | 3.5X FS | Cable 4 m |
| EPB-B02-1B-/L3M/X | EPB-1BS-C20005 | Sealed | 30 mV | 1 bar | 3.5X FS | Cable 3 m |
| EPB-B03-1KP | EPB-1KPA-C20001 | Absolute | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-B01-1KP | EPB-1KPG-C20001 | Gauge | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-B02-1KP | EPB-1KPS-C20001 | Sealed | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-C12-1KP | EPB-1KPS-C20003 | Sealed | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-B03-2.5KP | 11026370-00 | Absolute | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-C13-2.5KP | 11025766-00 | Absolute | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-B03-2.5KP-/M0.2M | 11016402-00 | Absolute | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-B02-2.5KP | 11026209-00 | Sealed | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-C12-2.5KP | 11029455-00 | Sealed | 125 mV | 150 bar | 2X FS | No Connector |
| EPB-C13-250P | EPB-250PA-C20003 | Absolute | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-B03-250P-/Z1/V5/X/L50FM49F | EPB-250PA-C20004 | Absolute | 125 mV | 15 bar | 2X FS | Cable 50 ft |
| EPB-B02-250P | EPB-250PS-C20001 | Sealed | 125 mV | 15 bar | 2X FS | No Connector |
| EPB-B01-25P | EPB-25PG-C20001 | Gauge | 50 mV | 1.5 bar | 2X FS | No Connector |
| EPB-B03-3.5B | 11029456-00 | Absolute | 75 mV | 3.5 bar | 2X FS | No Connector |
| EPB-B03-3.5B-/Z2/X/L10F/M3F | 11029457-00 | Absolute | 75 mV | 3.5 bar | 2X FS | Cable 10 ft |
| EPB-B03-3.5B-/Z3/RS/L3M | 11016423-00 | Absolute | 75 mV | 3.5 bar | 2X FS | Cable 3 m |
| EPB-C11-3.5B-/M3M/L4M/Z2 | 11031612-00 | Gauge | 75 mV | 3.5 bar | 2X FS | Cable 4 m |
| EPB-B02-3.5B-/Z2/V5/L5M/M4M | 11033000-00 | Sealed | 75 mV | 3.5 bar | 2X FS | Cable 5 m |
| EPB-B03-350B | EPB-350BA-C20001 | Absolute | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-C13-350B | EPB-350BA-C20003 | Absolute | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-C13-350B-/Z2/X | EPB-350BA-C20006 | Absolute | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-C13-350B-/L3M | EPB-350BA-C20009 | Absolute | 125 mV | 350 bar | 2X FS | Cable 3 m |
| EPB-B03-350B-/Z0/V5/L1F/M0.25F | EPB-350BA-C20010 | Absolute | 125 mV | 350 bar | 2X FS | Cable 1 ft |
| EPB-B03-350B-/Z4 | EPB-350BA-C20012 | Absolute | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-C12-350B | EPB-350BS-C20003 | Sealed | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-C12-350B-/Z2/L2M/X | EPB-350BS-C20004 | Sealed | 125 mV | 350 bar | 2X FS | Cable 2 m |
| EPB-B03-35B | EPB-35BA-C20001 | Absolute | 125 mV | 35 bar | 2X FS | No Connector |
| EPB-C13-35B-/Z2/X | EPB-35BA-C20006 | Absolute | 125 mV | 35 bar | 2X FS | No Connector |
| EPB-C11-35B | EPB-35BG-C20003 | Gauge | 125 mV | 35 bar | 2X FS | No Connector |
| EPB-B01-35B-/Z4/V5/L2M/C | EPB-35BG-C20004 | Gauge | 125 mV | 35 bar | 2X FS | Cable 2 m |
| EPB-C12-35B-/Z1/V05 | EPB-35BS-C20004 | Sealed | 125 mV | 35 bar | 2X FS | No Connector |
| EPB-C13-500P | EPB-500PA-C20003 | Absolute | 125 mV | 35 bar | 2X FS | No Connector |
| EPB-C13-500P-/L6F | EPB-500PA-C20004 | Absolute | 125 mV | 35 bar | 2X FS | Cable 6 ft |
| EPB-C12-500P-/X | EPB-500PS-C20004 | Sealed | 125 mV | 35 bar | 2X FS | No Connector |
| EPB-C13-50P-/Z0/V5 | EPB-50PA-C20004 | Absolute | 75 mV | 3.5 bar | 2X FS | No Connector |
| EPB-C11-50P | EPB-50PG-C20003 | Gauge | 75 mV | 3.5 bar | 2X FS | No Connector |
| EPB-C12-50P | EPB-50PS-C20003 | Sealed | 75 mV | 3.5 bar | 2X FS | No Connector |
| EPB-C11-5KP | EPB-5KPG-C20003 | Gauge | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-B02-5KP | EPB-5KPS-C20001 | Sealed | 125 mV | 350 bar | 2X FS | No Connector |
| EPB-C13-5P | EPB-5PA-C20003 | Absolute | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-5P | EPB-5PG-C20001 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-5P-/M04F | EPB-5PG-C20005 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-C11-5P-/Z2/L03M | EPB-5PG-C20006 | Gauge | 10 mV | .35 bar | 10X FS | Cable 3 m |
| EPB-B01-5P-/L02F | EPB-5PG-C20007 | Gauge | 10 mV | .35 bar | 10X FS | Cable 2 ft |
| EPB-C11-5P-/Z1 | EPB-5PG-C20008 | Gauge | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B01-5P-/Z2/L3M/M2M | 10201775-00 | Gauge | 10 mV | .35 bar | 10X FS | Cable 3 m |
| EPB-C12-5P | EPB-5PS-C20004 | Sealed | 10 mV | .35 bar | 10X FS | No Connector |
| EPB-B03-70B-/Z4/L02M/M1.5M/X | EPB-70BA-C20005 | Absolute | 125 mV | 70 bar | 2X FS | Cable 2 m |
| EPB-B03-70B-/Z2/V5/L1M/M0.10M | EPB-70BA-C20008 | Absolute | 125 mV | 70 bar | 2X FS | Cable 1 m |
| EPB-B01-70B | EPB-70BG-C20001 | Gauge | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-C11-70B-/L4M | EPB-70BG-C20003 | Gauge | 125 mV | 70 bar | 2X FS | Cable 4 m |
| EPB-B02-70B | EPB-70BS-C20001 | Sealed | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-B02-70B-/Z4 | EPB-70BS-C20005 | Sealed | 125 mV | 70 bar | 2X FS | No Connector |
| EPB-C13-7B-/Z2/L5M/X | EPB-7BA-C20005 | Absolute | 125 mV | 7 bar | 2X FS | Cable 5 m |
| EPB-B01-7B | EPB-7BG-C20001 | Gauge | 125 mV | 7 bar | 2X FS | No Connector |
| EPB-C11-7B | EPB-7BG-C20003 | Gauge | 125 mV | 7 bar | 2X FS | No Connector |
| EPB-B02-7B | EPB-7BS-C20001 | Sealed | 125 mV | 7 bar | 2X FS | No Connector |
| EPB-C12-7B-/Z2/V5/L5M/X | EPB-7BS-C20009 | Sealed | 125 mV | 7 bar | 2X FS | Cable 5 m |
