The AST4520 Flush Submersible liquid level sensor is the cost effective solution for level monitoring of turbulent tanks with viscous media. Approved to UL/cUL913 Class 1 Division 1 IS, Groups C and D with an approved barrier, the product ensures a safe, reliable source for level measurement. The AST4520 is also certified to ATEX / IECEx Class I Zone 0 Exia IIB T4 Ga (Ta = -40°C to +80°C).

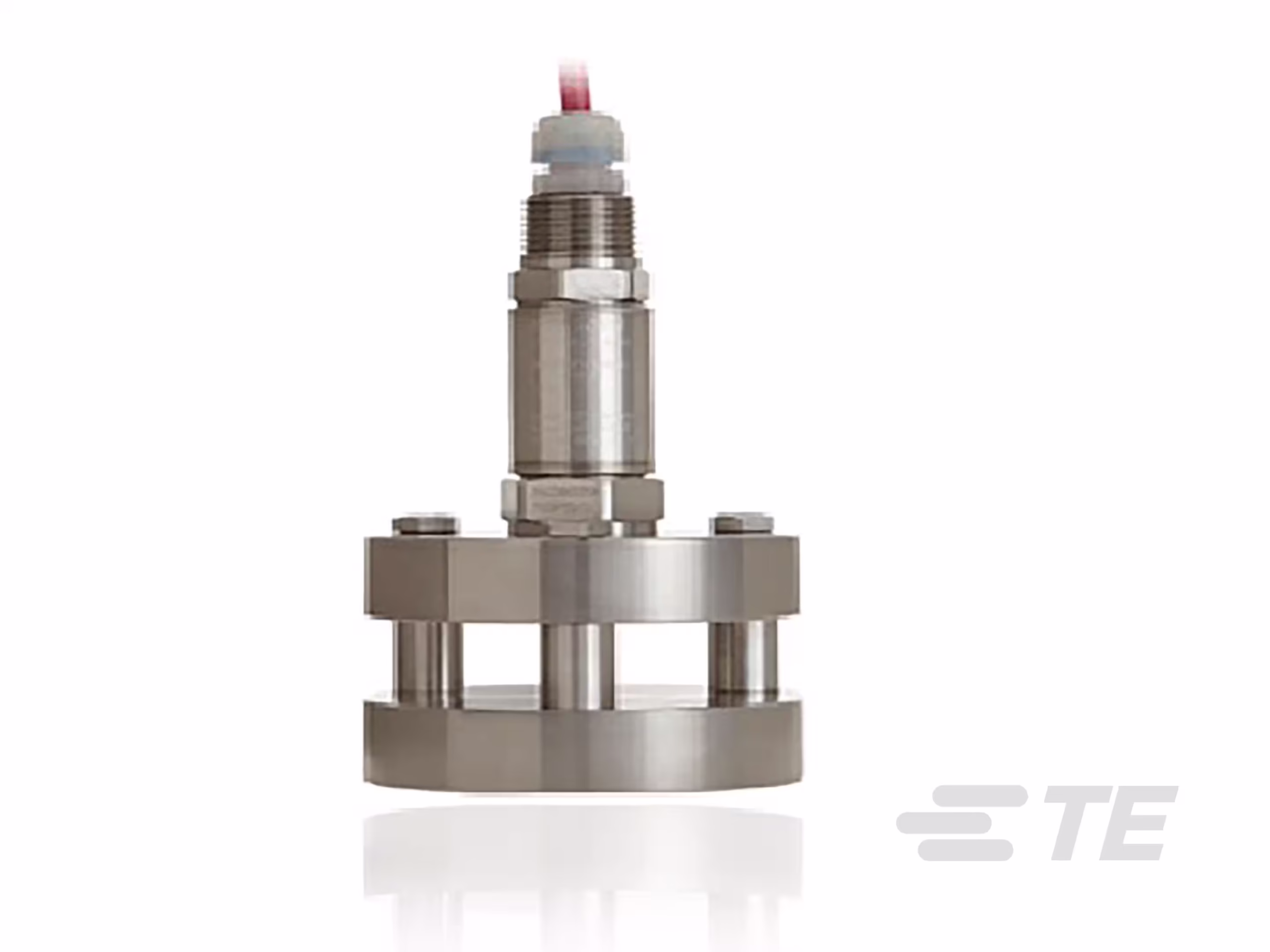

The AST4520 is offered with pressure ranges from 0-2.5 to 0-15 PSIG. The AST4520 steel cage front end design allows for proper flow of liquids while keeping the sensor at the bottom of the tank or well. With an engraved stainless steel housing and Kynar PVDF cable, this sensor is built to handle the toughest environments.
| Product Number | Internal Product Number | Pressure | Electrical Connection | Port Fitting |
| AST4520T00208H4X1353 | 11108482-00 | 14.34 bar | Cable 25 ft | G1/2 Flush Diaphragm With Steel Cage |
| AST4520Y00005P4X1353 | TA6833479 | .344 bar | Conduit 25 ft | Steel Cage |
| AST4520Y00005P4X1353-SS | 11192448-00 | 1.034 bar | Cable 2 ft | G1/2 With Steel Cage |
| AST4520Y00005P4X1353-SS | 11108487-00 | .344 bar | Cable 25 ft | G1/2 With Steel Cage |
| AST4520Y00010P4X1354-SS | 11108499-00 | .68 bar | Cable 50 ft | G1/2 With Steel Cage |
| AST4520Y00010P4X1355 | 11108500-00 | .68 bar | Cable 75 ft | G1/2 With Steel Cage |
| AST4520Y00015P4X1354 | 11108506-00 | 1.034 bar | Cable 50 ft | G1/2 With Steel Cage |
| AST4520Y00015P4X1355-SS | 11108509-00 | 1.034 bar | Cable 75 ft | G1/2 With Steel Cage |
| AST4520Y00208H4X1354 | 11108524-00 | 14.34 bar | Cable 50 ft | G1/2 With Steel Cage |
