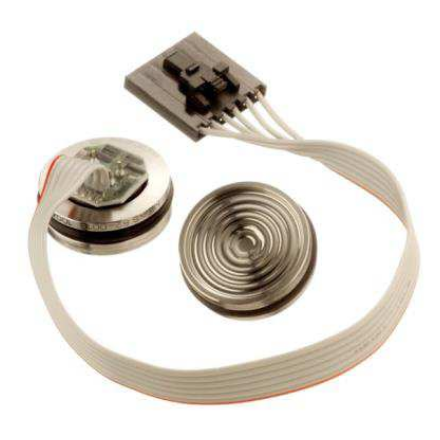

The 82 compensated is a 19 mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 82 compensated can be configured for o-ring mounting or threaded process fittings and is designed for OEM applications where compatibility with corrosive media is required.
The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains lasertrimmed resistors for temperature compensation and offset correction. An additional laser-trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%.
Please refer to the 82 uncompensated and constant voltage datasheets for more information on different features of the 82.
| Product Number | Pressure Type | Pressure | Port Fitting | Sensor Package |
| 82-001G-A2994 | Gauge | .068 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-001G-C | Gauge | .068 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-001G-P | Gauge | .068 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-005A-C | Absolute | .344 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-005G-2RT | Gauge | .344 bar | 1/8-27 NPT | O-Ring Mount, Threaded Process Fittings |
| 82-005G-C | Gauge | .344 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-005G-CT | Gauge | .344 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-005G-R | Gauge | .344 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-005G-RT | Gauge | 34.47 bar | Weldable (No Thread) | O-Ring Mount |
| 82-015A-1R | Absolute | 1.03 bar | 1/4 18 NPT | O-Ring Mount, Threaded Process Fittings |
| 82-015A-C | Absolute | 1.03 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-015A-R | Absolute | 1.03 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-015G-C | Gauge | 34.47 bar | Weldable (No Thread) | O-Ring Mount |
| 82-015G-CT | Gauge | 1.03 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-015G-RT | Gauge | 1.03 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-030A-C | Absolute | 34.47 bar | Weldable (No Thread) | O-Ring Mount |
| 82-030A-P | Absolute | 2.06 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-030A-R | Absolute | 2.06 bar | None | O-Ring Mount, Threaded Process Fittings |
| 82-030G-C | Gauge | 2.06 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-030G-R | Gauge | 2.06 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-030G-RT | Gauge | 2.06 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-050A-C | Absolute | 3.44 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-050A-R | Absolute | 3.44 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-050G-C | Gauge | 3.44 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-050G-R | Gauge | 3.44 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-100A-C | Absolute | 6.89 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-100A-R | Absolute | 6.89 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-100G-C | Gauge | 34.47 bar | Weldable (No Thread) | O-Ring Mount |
| 82-100G-R | Gauge | 6.89 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-100G-RT | Gauge | 6.89 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-300A-C | Absolute | 34.47 bar | Weldable (No Thread) | O-Ring Mount |
| 82-300A-R | Absolute | 20.68 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-300G-C | Gauge | 20.68 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-300G-R | Gauge | 20.68 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-300G-RT | Gauge | 20.68 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-500A-C | Absolute | 34.47 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-500A-P | Absolute | 34.47 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-500A-R | Absolute | 34.47 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-500G-1R | Gauge | 34.47 bar | 1/4 18 NPT | O-Ring Mount, Threaded Process Fittings |
| 82-500G-C | Gauge | 34.47 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
| 82-500G-R | Gauge | 34.47 bar | Weldable (No Thread) | O-Ring Mount, Threaded Process Fittings |
