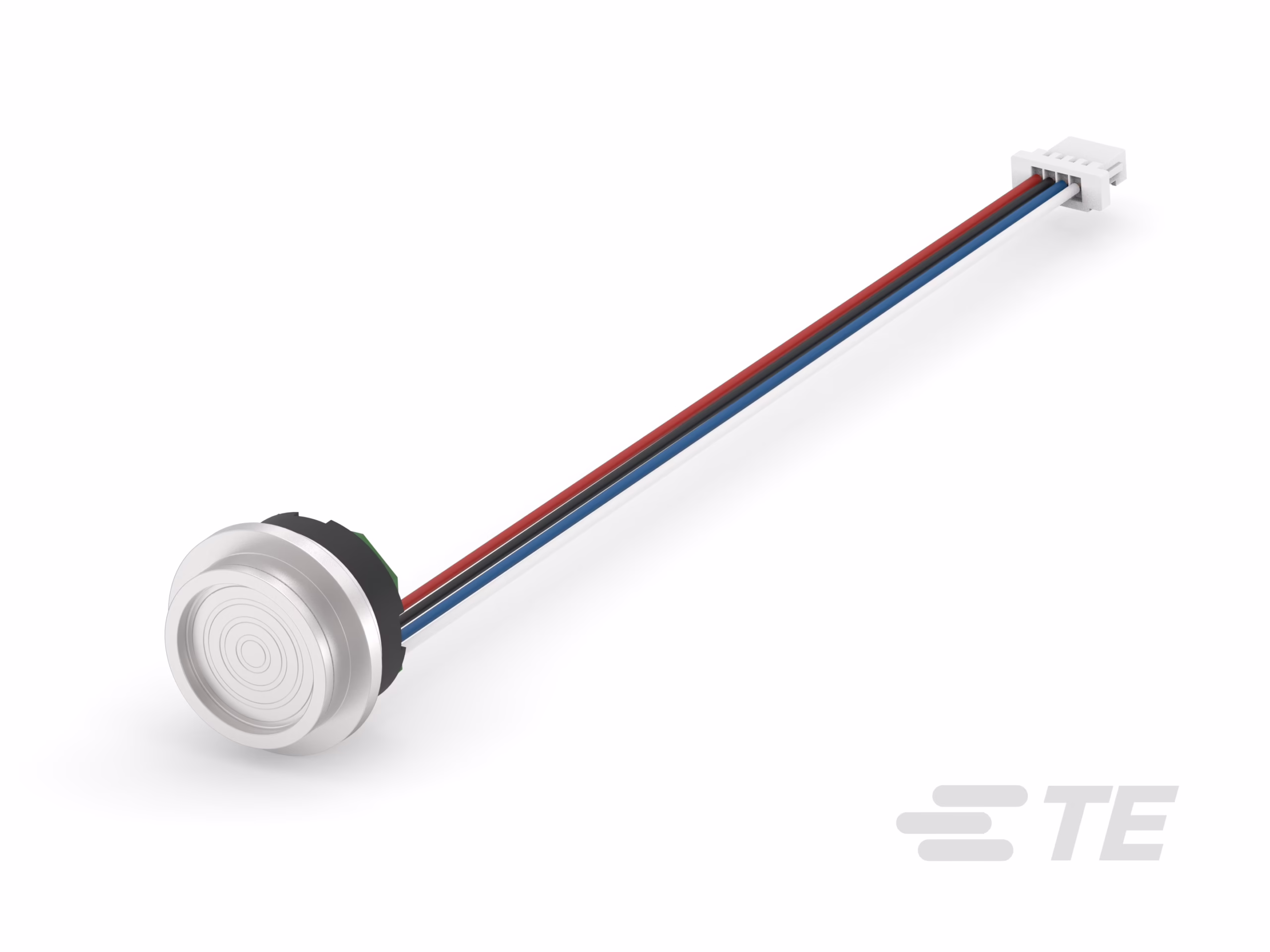

Model 85UHP is a weldable compact profile, media compatible, pressure sensor, a MEMS piezo-resistive chip integrated in a 316L stainless steel or alloy C276 module with silicone oil filled which transfer pressure from a thin corrugated diaphragm in the front face.
It was designed and manufactured for OEM where customer seeking a semiconductor application process duration that is greater than TE standard 85 ISO capsule, it offers wetted material options and surface roughness optimized for ultra-high purity and ultra-high vacuum scenarios, harnessing TE’s advanced MEMS capabilities to deliver unparalleled precision and stability.
| Product Number | Internal Product Number | Pressure | Output Signal Type | Supply Voltage Range | Series |
| 85UHP-015A-US1 | 20032150-00 | 1.03 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-030A-US1 | 20032150-01 | 2.07 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-050A-US1 | 20032150-02 | 3.45 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-100A-US1 | 20032150-03 | 6.89 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-015A-UC1 | 20032150-04 | 1.03 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-030A-UC1 | 20032150-05 | 2.07 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-050A-UC1 | 20032150-06 | 3.45 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-100A-UC1 | 20032150-07 | 6.89 bar | Sensitivity = 12 – 27mV/V | 5 – 9.5 V | 85UHP |
| 85UHP-015A-VS1C | 20032150-10 | 1.03 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-030A-VS1C | 20032150-11 | 2.07 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-050A-VS1C | 20032150-12 | 3.45 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-100A-VS1C | 20032150-13 | 6.89 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-015A-VC1C | 20032150-14 | 1.03 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-030A-VC1C | 20032150-15 | 2.07 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-050A-VC1C | 20032150-16 | 3.45 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-100A-VC1C | 20032150-17 | 6.89 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-015A-CS1C | 20032150-30 | 1.03 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-030A-CS1C | 20032150-31 | 2.07 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-050A-CS1C | 20032150-32 | 3.45 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-100A-CS1C | 20032150-33 | 6.89 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-015A-CC1C | 20032150-34 | 1.03 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-030A-CC1C | 20032150-35 | 2.07 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-050A-CC1C | 20032150-36 | 3.45 bar | 100mV | 5 – 14 V | 85UHP |
| 85UHP-100A-CC1C | 20032150-37 | 6.89 bar | 100mV | 5 – 14 V | 85UHP |
