87N Compensated

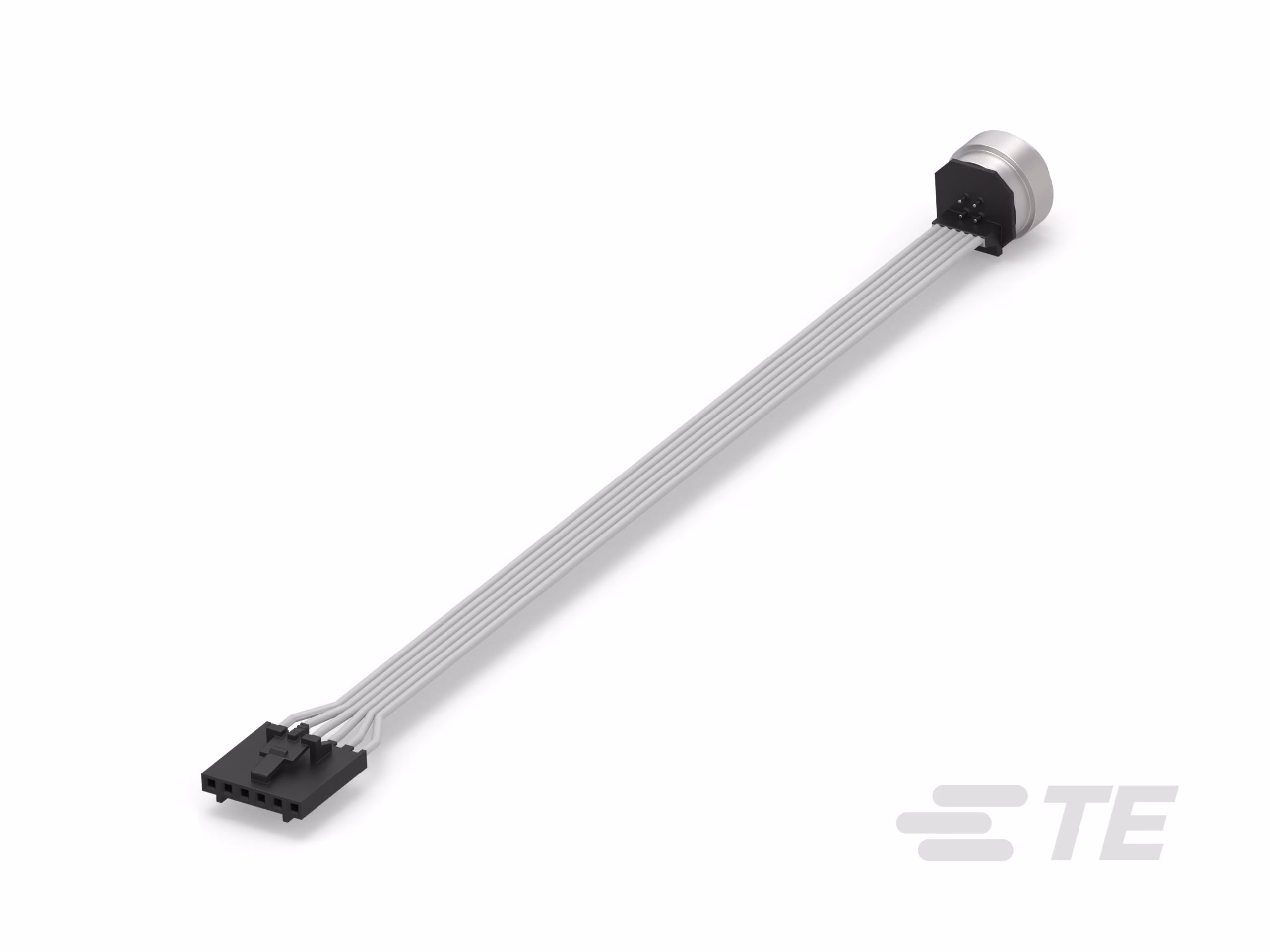

This is a micro machined piezoresistive silicon pressure sensor.

It is designed for OEM applications where compatibility with corrosive media must be maintained. The sensor chip is mounted in a 316L stainless steel package, sealing a small volume of silicon oil between the diaphragm and the sensor chip.

The ISO pressure housing utilizes the oil column to couple the piezoresistive sensor to the isolation diaphragm.

A thick-film ceramic compensation board with laser trimmed resistors, and additional gain set resistor to normalize pressure sensitivity are an integral part of the sensor package. A variety of threaded process fittings are available. Fittings include standards like 1/4 and 1/8 NPT as well as custom process fittings.

Electrical options include cable and connector.

Technical Data

Key Specifications

316L SS Pressure Sensor
High Performance, Small Profile
0-100 mV Output
Temperature Compensated
Absolute and Sealed Gage
Weldable, Optional Process Fittings
±0.25% Pressure Non-linearity
±0.75% Temperature Performance
Solid State Reliability
Low Power

Product Configuration

Product Number	Pressure	Pressure Type	Port Fitting	Sensor Package
87N-1000A-0C	69 bar	Absolute	None	Weldable
87N-1000A-0R	69 bar	Absolute	None	Weldable
87N-1000A-8R	69 bar	Absolute	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-1000S-0C	69 bar	Sealed Gauge	None	Threaded Process Fittings
87N-1000S-0P	69 bar	Sealed Gauge	None	Weldable
87N-1000S-0R	69 bar	Sealed Gauge	None	Weldable
87N-1000S-4R	69 bar	Sealed Gauge	1/4-18 NPT (5/8 Hex)	Threaded Process Fittings
87N-1000S-8C	69 bar	Sealed Gauge	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-1000S-8R	69 bar	Sealed Gauge	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-10KS-4R	689.4 bar	Sealed Gauge	1/4-18 NPT (5/8 Hex)	Threaded Process Fittings
87N-10KS-8R	689.4 bar	Sealed Gauge	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-3000A-0C	206 bar	Absolute	None	Weldable
87N-3000A-0R	206 bar	Absolute	None	Weldable
87N-3000A-4R	206 bar	Absolute	1/4-18 NPT (5/8 Hex)	Threaded Process Fittings
87N-3000A-8C	206 bar	Absolute	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-3000A-8R	206 bar	Absolute	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-3000S-0C	206 bar	Sealed Gauge	None	Weldable
87N-3000S-0R	206 bar	Sealed Gauge	None	Weldable
87N-5000A-0R	344 bar	Absolute	None	Weldable
87N-5000A-4R	344 bar	Absolute	1/4-18 NPT (5/8 Hex)	Threaded Process Fittings
87N-5000A-8R	344 bar	Absolute	1/8-27 NPT (5/8 Hex)	Threaded Process Fittings
87N-5000S-0C	344 bar	Sealed Gauge	None	Weldable
87N-5000S-0P	344 bar	Sealed Gauge	None	Weldable
87N-5000S-0R	344 bar	Sealed Gauge	None	Weldable
