CQS290 | LTE Cat 4 Android Smart Modules

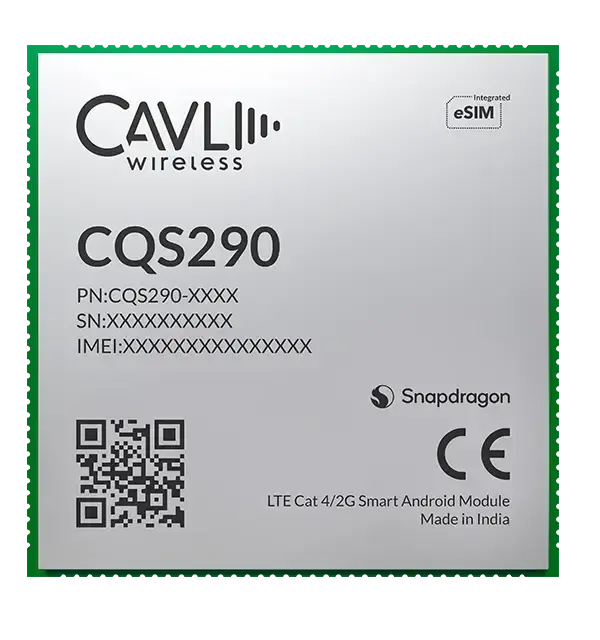

Cavli CQS290 LTE Cat 4 Android Smart Modules

Description

Cavli debuted the CQS290 as a flagship series of LTE Cat 4 Android smart modules with 2G fallback capability. The module is powered by ARM™ Cortex A53 quad-core CPU architecture and built-in Adreno™ 702 GPU that delivers stronger graphics capabilities, better image quality, and excellent battery efficiency. CQS290 supports versatile features such as USB 2.0 with OTG function, Bluetooth 5.0, FM & Wi-Fi 5 making it ideal for a wide range of applications such as POS terminals, Smart Vending Machines, Smart Kiosks etc.

With extensive SDK support powered by AOSP, the module’s functionalities can be customised and tailored to suite an OEM’s solution requirements. Available in global variants with various memory configurations, CQS290 supports multi-constellation GNSS, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS powered by the Qualcomm Location Suite Gen 9VT. The module comes with optional integrated eSIM with global connectivity powered by the Cavli Hubble platform.

Technical Data

Cellular Bands Supported: WW :B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 /B38 /B40 /B41 /B66 /B71* | GSM – 900/1800 MHz

Supported Location Services: GPS / BDS / GLONASS / Galileo QZSS / SBAS Ranging Support CQS290: L1

OS: Android / Linux OS

Cellular Connectivity Download & Uplink Speed (* Peak Values): LTE Cat 4 :150Mbps (DL) & 50 Mbps (UL),  GSM 2G :236.8Kbps (DL) & 236.8 Kbps (UL)

Packaging:  40.5 x 40.5 x TBD mm, LCC+LGA Package

Interfaces: 1xLCD (DSI)**, 2xCamera (CSI)**, 2xCCI I2C, 2xAnalog Audio Out**, 2xAnalog Audio In, 2xDigital Audio In, 1xUSB 2.0(OTG Support), 1xUSIM, 3xUART, 1xJTAG, 37xGPIO**, 1xSDC 3.0, 1xADC**, 2xI2C**, 1xI3C**, 1xSPI**, 1xTouch Interface (I2C), 1xVIB_DRV, 1xWi-FI & Bluetooth ANT, 1xMain ANT, 1xDIV ANT, 1xGNSS ANT

*Optional feature | **Requires SDK
