CQS292 | LTE Cat 4 IoT Modules

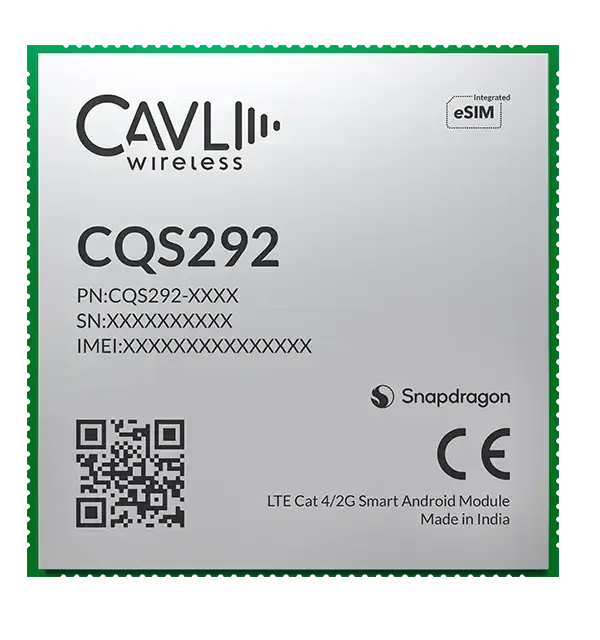

Cavli CQS292 LTE Cat 4 IoT Modules

Description

The CQS292 is a part of Cavli’s C-Series module family, featuring LTE Cat 4 IoT modules that support data rates of up to 150 Mbit/s downlink and 50 Mbit/s uplink, with 2G fallback. These Android smart modules are equipped with a Cortex A53 quad-core CPU and a built-in Adreno™ 702 GPU, delivering superior graphics, exceptional image quality, and powerful compute performance. Available in global variants with various memory configurations, the series supports multi-constellation GNSS, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS. Additional features such as USB 3.1 Type-C/Micro USB, Wi-Fi, Bluetooth, and FM. CQS292 offers an optional integrated eSIM, providing global connectivity through the Cavli Hubble IoT platform for seamless deployments across various applications.

Designed for four-wheel vehicles, the CQS292 also uses the QWM2290 chipset and includes Qualcomm’s LA2.1 Automotive Middleware. It stands out with its L1+L5 GNSS support, including NavIC, providing superior positioning precision and accuracy. While retaining the high-performance CPU and GPU found in other models, it focuses on the advanced needs of four-wheel automotive applications, offering robust connectivity and precise navigation capabilities.

Technical Data

Cellular Bands Supported: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 /B38 /B40 /B41 /B66 /B71* | GSM – 900/1800 MHz

Supported Location Services: GPS / BDU / GLONASS / Galileo QZSS / SBAS Ranging Support NavIC CQS292: L1+L5

OS: Android 12 + Service packs up to Android 14

Cellular Connectivity Download & Uplink Speed (* Peak Values): LTE Cat 4 :150Mbps (DL) & 50 Mbps (UL),  GSM 2G :236.8Kbps (DL) & 236.8 Kbps (UL)

Packaging:  40.5 x 40.5 x TBD mm, LCC+LGA Package

Interfaces: 1xLCD (MIPI-DSI)**, 2xCamera (MIPI-CSI)**, 2xCCI I2C, 2xAnalog Audio Out**, 2x DMIC, 1xUSB 3.1(OTG Support), 1xUSIM, 3xUART, 37xGPIO**, 1xSDC 3.0, 1xADC**, 2xI2C**, 1xI3C**, 1xSPI**, 1xTouch Interface (I2C), 1xVIB_DRV, 1xWi-FI + BLE + FM ANT, 1xMain ANT, 1xDIV ANT, 1xGNSS ANT

*Optional feature | **Requires SDK
