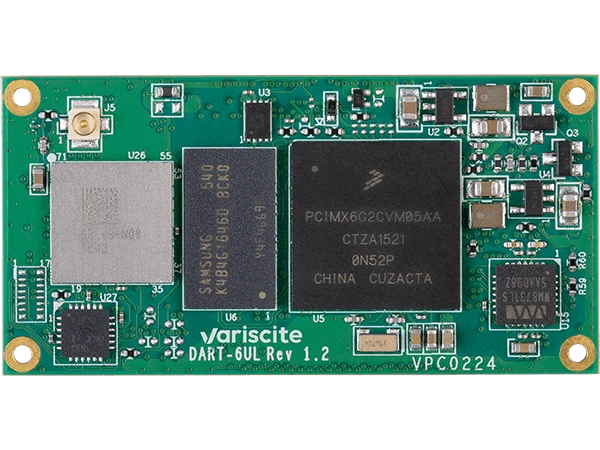

Measuring only 50mm x 25mm, the DART-6UL is a highly flexible System on Module (SoM) / Computer on Module (CoM) based on NXP/Freescale’s iMX6UL / iMX6ULL / iMX6ULZ ARM Cortex-A7™ processor, up to 900MHz CPU Clock. The DART-6UL provides a variety of interfaces and connectivity options – all packaged at an optimized power, size and cost. The DART-6UL highly integrated connectivity includes a certified dual-band WiFi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4, Bluetooth/BLE 5.4, dual Ethernet, dual USB, audio, camera in, display with touch panel and serial interfaces. In addition, the system supports -40 to 85°C temperature range and long longevity commitment targeting embedded products in various industrial segments and applications.
Additional ultra cost-efficient variant of the DART-6UL, powered by NXP’s 900MHz i.MX 6ULZ processor. The new variant is pin-compatible with the i.MX 6UL and i.MX 6ULL based variants of the DART-6UL SoM, offering our customers a highly scalable product at the best cost-effective price.
