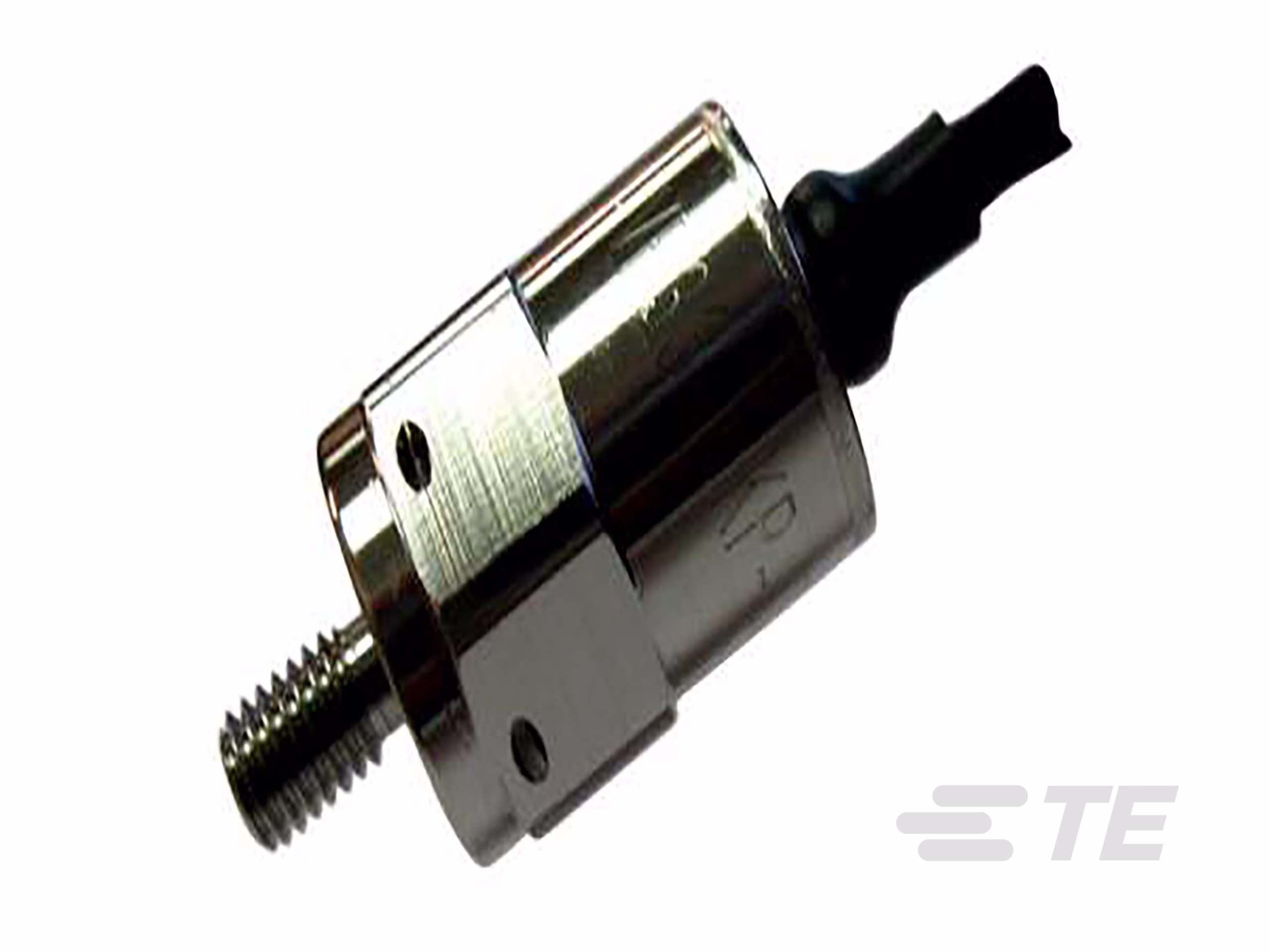

EPRB-2 is an ultra-miniature pressure transducer using stainless steel material. It is designed for harsh environments where minimum size and light weight are required.
Multiple interfaces such as pressure ports, electrical outputs, connection thru cables and connectors have been designed to offer a wide range of adaptability to meet customer requirements.
EPRB-2 models have amplified output, either 5VDC regulated, 8-30VDC or 4-20 mA for use in a variety of applications.
On request, instruction documents can be provided to assist with the selection and use of our sensors.
| Product Number | Internal Product Number | Pressure Type | Output Signal Type | Pressure | Supply Voltage Range | Electrical Connection | Port Fitting |
| EPRB-2-VU63-10P-/Z35 | 20006370-00 | Absolute | 0 – 5 V | .6 bar | 8 – 32 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-NU63-20B-/Z35 | 20007671-00 | Absolute | 0 – 5 V | 20 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-XR33-30P | 20008258-00 | Absolute | .5 – 4.5 V | 2 bar | 5 V | Cable 1 m | 3/8-24 UNF |
| EPRB-2-VR31-300P | 20008650-00 | Gauge | .5 – 4.5 V | 20 bar | 5 V | Cable 1 m | 10-32 UNF |
| EPRB-2-XU33-100P-/CM1 | 20008895-00 | Absolute | .5 – 4.5 V | 6 bar | 8 – 32 V | Integral connector | 3/8-24 UNF Male |
| EPRB-2-XU33-3KP-/CM1 | 20008896-00 | Absolute | .5 – 4.5 V | 200 bar | 8 – 32 V | Integral connector | 3/8-24 UNF Male |
| EPRB-2-XU33-5KP-/CM1 | 20008897-00 | Absolute | .5 – 4.5 V | 350 bar | 8 – 32 V | Integral connector | 3/8-24 UNF Male |
| EPRB-2-YU33-150P | 20009223-00 | Absolute | .5 – 4.5 V | 10 bar | 8 – 32 V | Cable 1 m | 1/4-18 NPT |
| EPRB-2-VU63-100P | 20009898-00 | Absolute | 0 – 5 V | 6 bar | 8 – 32 V | Cable 1 m | 10-32 UNF |
| EPRB-2-XU33-1.5KP-/CM1 | 20011050-00 | Absolute | .5 – 4.5 V | 100 bar | 8 – 32 V | Integral connector | 3/8-24 UNF Male |
| EPRB-2-XU33-10KP-/CM1 | 20011051-00 | Absolute | .5 – 4.5 V | 700 bar | 8 – 32 V | Integral connector | 3/8-24 UNF Male |
| EPRB-2-XU33-300P-/CM1 | 20011052-00 | Absolute | .5 – 4.5 V | 20 bar | 8 – 32 V | Integral connector | 3/8-24 UNF Male |
| EPRB-2-VI51-100P-/L3M | 20011244-00 | Gauge | 4 – 20 mA | 6 bar | 10 – 30 V | Cable 3 m | 10-32 UNF Male |
| EPRB-2-VU63-15P | 20011745-00 | Absolute | 0 – 5 V | 1 bar | 8 – 32 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-PU33-200B-/CM2 | 20012425-00 | Absolute | .5 – 4.5 V | 200 bar | 8 – 32 V | Integral connector | M10x1 Male |
| EPRB-2-QI53-1.5KP-/Z1/CM2 | 20015301-00 | Absolute | 4 – 20 mA | 100 bar | 10 – 30 V | Integral connector | 5/16-24 UNF Male |
| EPRB-2-EI53-100P-/Z35/CM3/ATP1 | 20026399-00 | Absolute | 4 – 20 mA | 6 bar | 10 – 30 V | Integral connector | AS4395E02 |
| EPRB-2-EI53-1.5KP-/Z35/CM3/ATP1 | 20026402-00 | Absolute | 4 – 20 mA | 100 bar | 10 – 30 V | Integral connector | AS4395E02 |
| EPRB-2-EI53-6KP-/Z35/CM3/ATP1 | 20026403-00 | Absolute | 4 – 20 mA | 414 bar | 10 – 30 V | Integral connector | AS4395E02 |
| EPRB-2-PU33-6B | 20026464-00 | Absolute | 4 – 20 mA | 6 bar | 8 – 32 V | Cable 1 m | M10x1 Male |
| EPRB-2-XU33-15P-/Z1 | 20027810-00 | Absolute | .5 – 4.5 V | 1.034 bar | 8 – 32 V | Cable 1 m | 3/8-24 UNF Male |
| EPRB-2-XU33-30P-/Z1 | 20027814-00 | Absolute | .5 – 4.5 V | 2 bar | 8 – 32 V | Cable 1 m | 3/8-24 UNF Male |
| EPRB-2-VU63-100P-/Z1 | 20031298-00 | Absolute | .5 – 4.5 V | 6 bar | 8 – 32 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-SU33-6B-/Z35/ATR/L3M | 20032899-00 | Absolute | .5 – 4.5 V | 6 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-SU33-350B-/Z35/ATR/L3M | 20032900-00 | Absolute | .5 – 4.5 V | 350 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-NU33-0.6B-/Z35/L3M | 10212842-00 | Absolute | .5 – 4.5 V | .6 bar | 8 – 32 V | Cable 3 m | M5x0.8 Male |
| EPRB-2-SU33-0.6B-/Z35/L3M | 10212862-00 | Absolute | .5 – 4.5 V | .6 bar | 8 – 32 V | Cable 3 m | M8x1 Male |
| EPRB-2-NU61-0.6B | 11024284-00 | Gauge | 0 – 5 V | .6 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-VR33-1.5KP-/Z35/CM1 | 11033059-00 | Absolute | .5 – 4.5 V | 100 bar | 5 V | Integral connector | 10-32 UNF Male |
| EPRB-2-QR33-1.5KP-/Z35/CM1 | 11020905-00 | Absolute | .5 – 4.5 V | 100 bar | 5 V | Integral connector | 5/16-24 UNF Male |
| EPRB-2-VI53-1.5KP-/Z1/CM2 | 10215939-00 | Gauge | 4 – 20 mA | 100 bar | 10 – 30 V | Integral connector | 10-32 UNF Male |
| EPRB-2-NU33-100B | 10219017-00 | Absolute | .5 – 4.5 V | 100 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-PU33-100B-/Z35/L5M | 10226232-00 | Absolute | .5 – 4.5 V | 100 bar | 8 – 32 V | Cable 5 m | M10x1 Male |
| EPRB-2-XU33-100P-/Z35 | EPRB2-100PA-C20002 | Absolute | .5 – 4.5 V | 6 bar | 8 – 32 V | Cable 1 m | 3/8-24 UNF Male |
| EPRB-2-VR33-100P-/ATR | EPRB2-100PA-C20003 | Absolute | .5 – 4.5 V | 6 bar | 5 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-YU33-100P | EPRB2-100PA-C20004 | Absolute | .5 – 4.5 V | 6 bar | 8 – 32 V | Cable 1 m | 1/4-18 NPT |
| EPRB-2-VR33-100P | EPRB2-100PA-C20007 | Absolute | .5 – 4.5 V | 6 bar | 5 V | Cable 1 m | 10-32 UNF |
| EPRB-2-YU63-100P-/Z1/ATR/L3M | 10221025-00 | Absolute | 0 – 5 V | 6 bar | 8 – 32 V | Cable 3 m | 1/4 MNPT |
| EPRB-2-PU33-10B | EPRB2-10BA-C00003 | Absolute | .5 – 4.5 V | 10 bar | 8 – 32 V | Cable 1 m | M10x1 Male |
| EPRB-2-VU61-10B | EPRB2-10BG-C00001 | Gauge | 0 – 5 V | 10 bar | 8 – 32 V | Cable 1 m | 10-32 UNF |
| EPRB-2-NU31-10B | EPRB2-10BG-C00003 | Gauge | .5 – 4.5 V | 10 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-PU31-10B-/Z35/L5M | EPRB2-10BG-C00004 | Gauge | .5 – 4.5 V | 10 bar | 8 – 32 V | Cable 5 m | M10x1 Male |
| EPRB-2-ZU63-10KP-/Z35 | 10211502-00 | Absolute | 0 – 5 V | 700 bar | 8 – 32 V | Cable 1 m | 7/16-20 UNF Male |
| EPRB-2-VI53-10P | 10214491-00 | Absolute | 4 – 20 mA | .68 bar | 10 – 30 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-VU63-10P | 10214492-00 | Absolute | 0 – 5 V | .68 bar | 8 – 32 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-NU61-10P-/Z1/ATR | 10215579-00 | Gauge | 0 – 5 V | .6 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-VU63-150P-/Z1 | EPRB2-150PA-C00001 | Absolute | 0 – 5 V | 10 bar | 8 – 32 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-EI53-150P-/Z35/CM3 | EPRB2-150PA-C00004 | Absolute | 4 – 20 mA | 10 bar | 10 – 30 V | Integral connector | AS4395E02 |
| EPRB-2-YU63-150P-/Z1/CM2 | 10203280-00 | Absolute | 0 – 5 V | 10 bar | 8 – 32 V | Integral connector | 1/4 MNPT |
| EPRB-2-VU33-150P | 10207484-00 | Absolute | .5 – 4.5 V | 10 bar | 8 – 32 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-VU61-150P | EPRB2-150PG-C00001 | Gauge | 0 – 5 V | 10 bar | 8 – 32 V | Cable 1 m | 10-32 UNF |
| EPRB-2-VR33-15P-/ATR | EPRB2-15PA-C00001 | Absolute | .5 – 4.5 V | 1 bar | 5 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-SR33-1B-/Z1/ATR/L3M | EPRB2-1BA-C00003 | Absolute | .5 – 4.5 V | 1 bar | 5 V | Cable 3 m | M8x1 Male |
| EPRB-2-NU33-1B | EPRB2-1BA-C00004 | Absolute | .5 – 4.5 V | 1 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-NR33-1B/Z35/ATR/L3M | EPRB2-1BA-C00006 | Absolute | .5 – 4.5 V | 1 bar | 5 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-SU63-1B-/Z35 | EPRB2-1BA-C00007 | Absolute | 0 – 5 V | 1 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-PU31-1B | EPRB2-1BG-C00002 | Gauge | .5 – 4.5 V | 1 bar | 8 – 32 V | Cable 1 m | M10x1 Male |
| EPRB-2-NU61-1B | EPRB2-1BG-C00003 | Gauge | 0 – 5 V | 1 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-EI53-1KP-/Z35/CM3 | EPRB2-1KPA-C00002 | Absolute | 4 – 20 mA | 60 bar | 10 – 30 V | Integral connector | AS4395E02 |
| EPRB-2-XR33-1KP-/Z35 | 10214795-00 | Absolute | .5 – 4.5 V | 60 bar | 5 V | Cable 1 m | 3/8-24 UNF Male |
| EPRB-2-PU63-200B | EPRB2-200BA-C00002 | Absolute | 0 – 5 V | 200 bar | 8 – 32 V | Cable 1 m | M10x1 Male |
| EPRB-2-PU33-20B-/Z35/L5M | EPRB2-20BA-C00002 | Absolute | .5 – 4.5 V | 20 bar | 8 – 32 V | Cable 5 m | M10x1 Male |
| EPRB-2-PU31-20B-/Z35/L5M | EPRB2-20BG-C00001 | Gauge | .5 – 4.5 V | 20 bar | 8 – 32 V | Cable 5 m | M10x1 Male |
| EPRB-2-NU63-2B | EPRB2-2BA-C00002 | Absolute | 0 – 5 V | 2 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-NU63-2B-/CM2 | EPRB2-2BA-C00003 | Absolute | 0 – 5 V | 2 bar | 8 – 32 V | Integral connector | M5x0.8 Male |
| EPRB-2-SU63-2B-/Z1 | EPRB2-2BA-C00004 | Absolute | 0 – 5 V | 2 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-PI53-2B-/Z35/CM3 | EPRB2-2BA-C00005 | Absolute | 4 – 20 mA | 2 bar | 10 – 30 V | Integral connector | M10x1 Male |
| EPRB-2-PI53-2B-/Z35/L4M | EPRB2-2BA-C00006 | Absolute | 4 – 20 mA | 2 bar | 10 – 30 V | Cable 4 m | M10x1 Male |
| EPRB-2-NU33-2B | 10219019-00 | Absolute | .5 – 4.5 V | 2 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-PU33-3.5B-/Z35/L5M | 10226234-00 | Absolute | .5 – 4.5 V | 3.5 bar | 8 – 32 V | Cable 5 m | M10x1 Male |
| EPRB-2-SU33-3.5B | 11025774-00 | Absolute | .5 – 4.5 V | 3.5 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-PI53-3.5B-/L5M | 10221385-00 | Absolute | 4 – 20 mA | 3.5 bar | 10 – 30 V | Cable 5 m | M10x1 Male |
| EPRB-2-NU61-3.5B | 11020886-00 | Gauge | 0 – 5 V | 3.5 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-NU31-3.5B | 11020887-00 | Gauge | .5 – 4.5 V | 3.5 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-YU31-300P-/CM2 | 10200696-00 | Gauge | .5 – 4.5 V | 20 bar | 8 – 32 V | Integral connector | 1/4 MNPT |
| EPRB-2-YU61-300P-/CM1 | 10206384-00 | Gauge | 0 – 5 V | 20 bar | 8 – 32 V | Integral connector | 1/4 MNPT |
| EPRB-2-XU63-30P-/Z1 | EPRB2-30PA-C20002 | Absolute | 0 – 5 V | 2 bar | 8 – 32 V | Cable 1 m | 3/8-24 UNF Male |
| EPRB-2-NU63-30P-/Z1/ATR | 10215580-00 | Absolute | 0 – 5 V | 2 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-SU63-350B-/Z35/ATR | EPRB2-350BA-C00001 | Absolute | 0 – 5 V | 350 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-PR33-350B | EPRB2-350BA-C00002 | Absolute | .5 – 4.5 V | 350 bar | 5 V | Cable 1 m | M10x1 Male |
| EPRB-2-WU33-350B | 10221575-00 | Absolute | .5 – 4.5 V | 350 bar | 8 – 32 V | Cable 1 m | G1/4A |
| EPRB-2-NU63-35B | EPRB2-35BA-C00001 | Absolute | 0 – 5 V | 35 bar | 8 – 32 V | Cable 1 m | M5x0.8 Male |
| EPRB-2-YU63-3KP-/Z1/ATR/L3M | 10220735-00 | Absolute | 0 – 5 V | 200 bar | 8 – 32 V | Cable 3 m | 1/4 MNPT |
| EPRB-2-ZU33-500P-/CM2 | 10201859-00 | Absolute | .5 – 4.5 V | 35 bar | 8 – 32 V | Integral connector | 7/16-20 UNF Male |
| EPRB-2-VU63-50P | EPRB2-50PA-C20001 | Absolute | 0 – 5 V | 3.5 bar | 8 – 32 V | Cable 1 m | 10-32 UNF |
| EPRB-2-VU33-50P | EPRB2-50PA-C20002 | Absolute | .5 – 4.5 V | 3.5 bar | 8 – 32 V | Cable 1 m | 10-32 UNF |
| EPRB-2-VU63-50P-/Z2/CM2 | EPRB2-50PA-C20003 | Absolute | 0 – 5 V | 3.5 bar | 8 – 32 V | Integral connector | 10-32 UNF Male |
| EPRB-2-VR33-50P-/ATR | EPRB2-50PA-C20005 | Absolute | .5 – 4.5 V | 3.5 bar | 5 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-QU63-50P-/Z35 | EPRB2-50PA-C20006 | Absolute | 0 – 5 V | 3.5 bar | 8 – 32 V | Cable 1 m | 5/16-24 UNF Male |
| EPRB-2-VI53-50P-/Z1 | 10213638-00 | Absolute | 4 – 20 mA | 3.5 bar | 10 – 30 V | Cable 1 m | 10-32 UNF Male |
| EPRB-2-SU31-50P | EPRB2-50PG-C00002 | Gauge | .5 – 4.5 V | 3.5 bar | 8 – 32 V | Cable 1 m | M8x1 Male |
| EPRB-2-VR33-5KP-/Z35/CM1 | EPRB2-5KPA-C20001 | Absolute | .5 – 4.5 V | 350 bar | 5 V | Integral connector | 10-32 UNF Male |
| EPRB-2-QR33-5KP-/Z35/CM1 | EPRB2-5KPA-C20002 | Absolute | .5 – 4.5 V | 350 bar | 5 V | Integral connector | 5/16-24 UNF Male |
| EPRB-2-YU33-5KP-/L6F | EPRB2-5KPG-C00001 | Absolute | .5 – 4.5 V | 350 bar | 8 – 32 V | Cable 6 m | 1/4 MNPT |
| EPRB-2-VU61-5P | EPRB2-5PG-C00001 | Gauge | 0 – 5 V | .35 bar | 8 – 32 V | Cable 1 m | 10-32 UNF |
| EPRB-2-YU63-60B | EPRB2-60BA-C20001 | Absolute | 0 – 5 V | 60 bar | 8 – 32 V | Cable 1 m | 1/4-18 NPT |
| EPRB-2-PU33-60B-/Z35/L5M | EPRB2-60BA-C20004 | Absolute | .5 – 4.5 V | 60 bar | 8 – 32 V | Cable 5 m | M10x1 Male |
| EPRB-2-NU63-60B-/L5M | 10204048-00 | Absolute | 0 – 5 V | 60 bar | 8 – 32 V | Cable 5 m | M5x0.8 Male |
| EPRB-2-WI53-60B-/CM3 | 10221066-00 | Absolute | 4 – 20 mA | 60 bar | 10 – 30 V | Integral connector | G1/4 Male |
| EPRB-2-WU33-60B | 10221576-00 | Absolute | .5 – 4.5 V | 60 bar | 8 – 32 V | Cable 1 m | G1/4A |
