EVM5700

Evaluation Kit for KTH5701

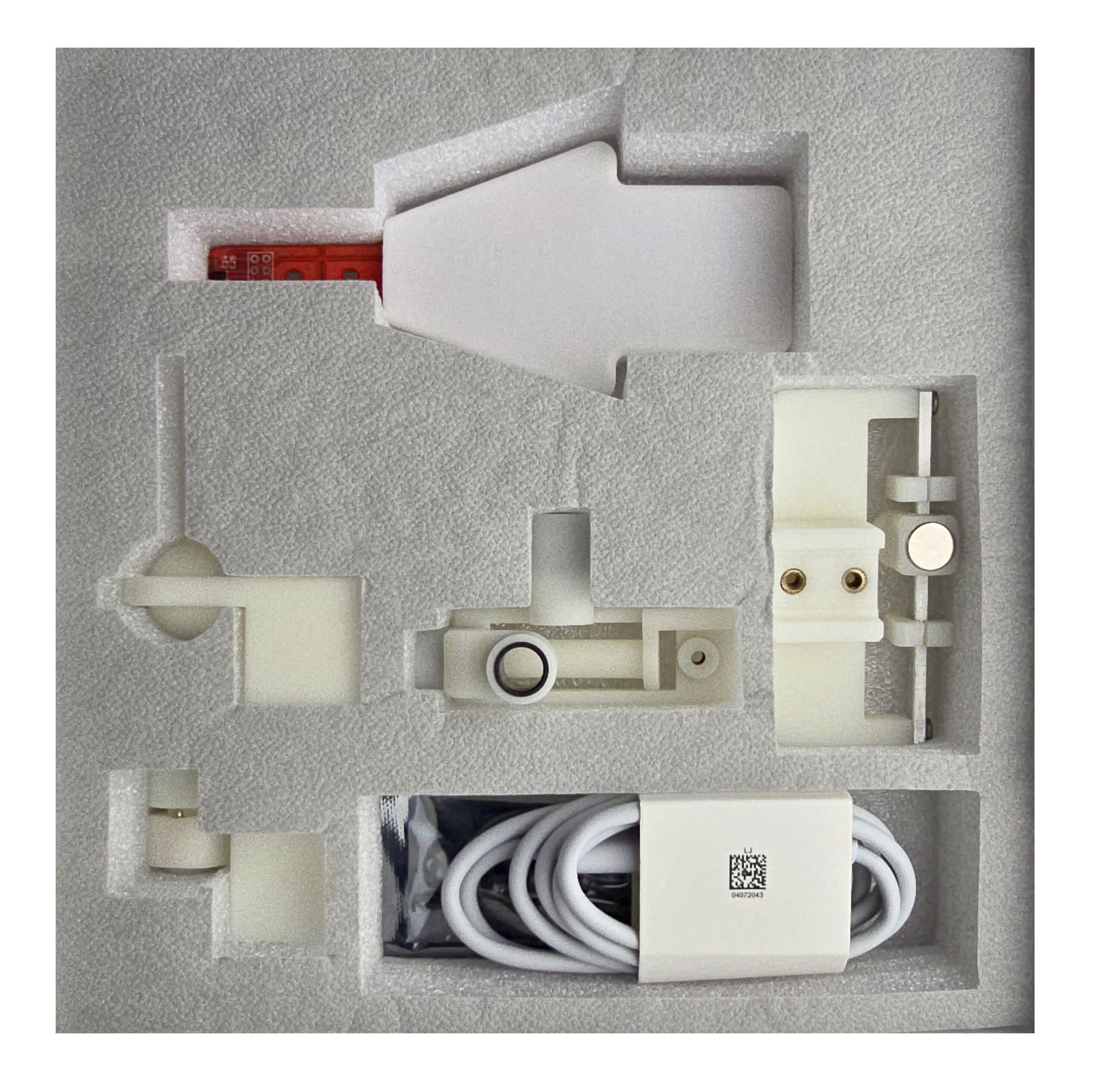

The KTH5701 EVM KIT contains all parts that are needed to evaluate the Low Power, High Precision 3D Hall Sensor IC KTH5701.

KTH5701 Evaluation Board
Off-axis knob
On-axis knob
Linear displacement kit
Joystick kit
6x screws
Hex screwdriver
USB-Micro cable

Technical Data

Downloads

KTH5701 datasheet (PDF)

KTH5701 EVB-KIT User Manual (PDF)

KTH5701 EVM Kit Software and Manual (ZIP)

Conntek Product Catalog (PDF)

Low Power, High Precision 3D Hall Sensor

KTH5701
Read more

Back
