EVM7801

Evaluation Kit for KTH7801

The EVM7801 contains all parts that are needed to evaluate the 16-bit programmable non-contact Hall magnetic encoder KTH7801.

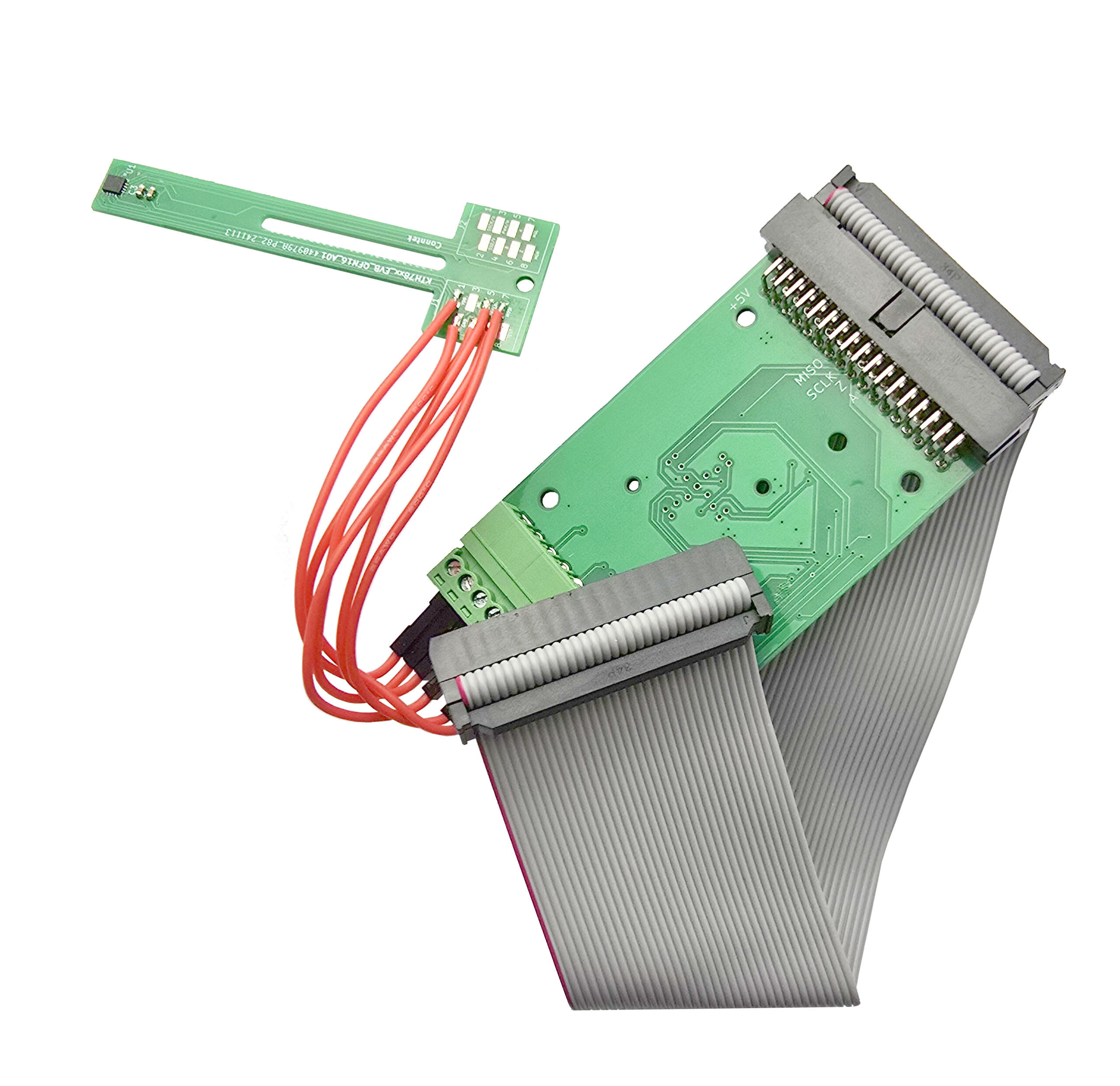

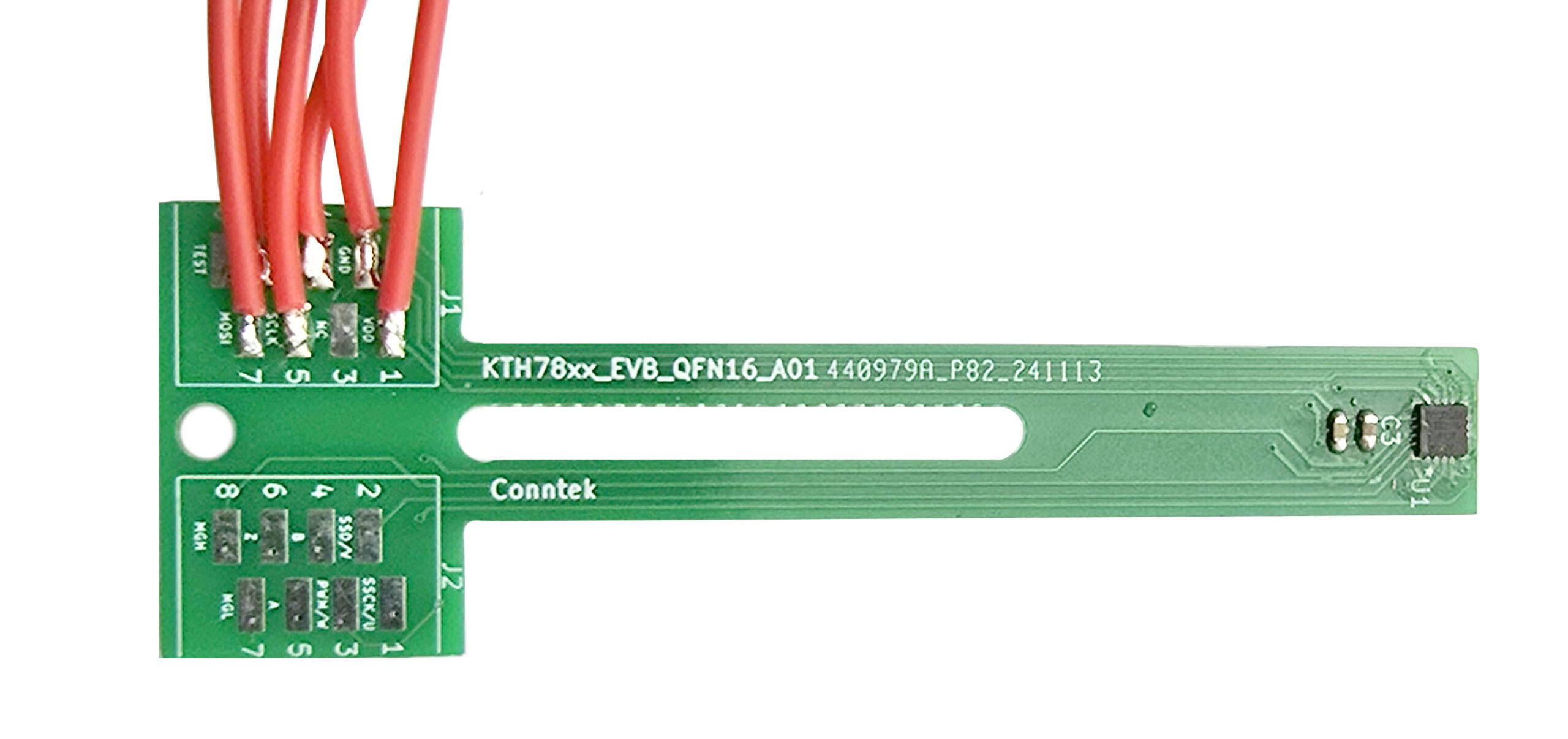

KTH7801 Evaluation Board

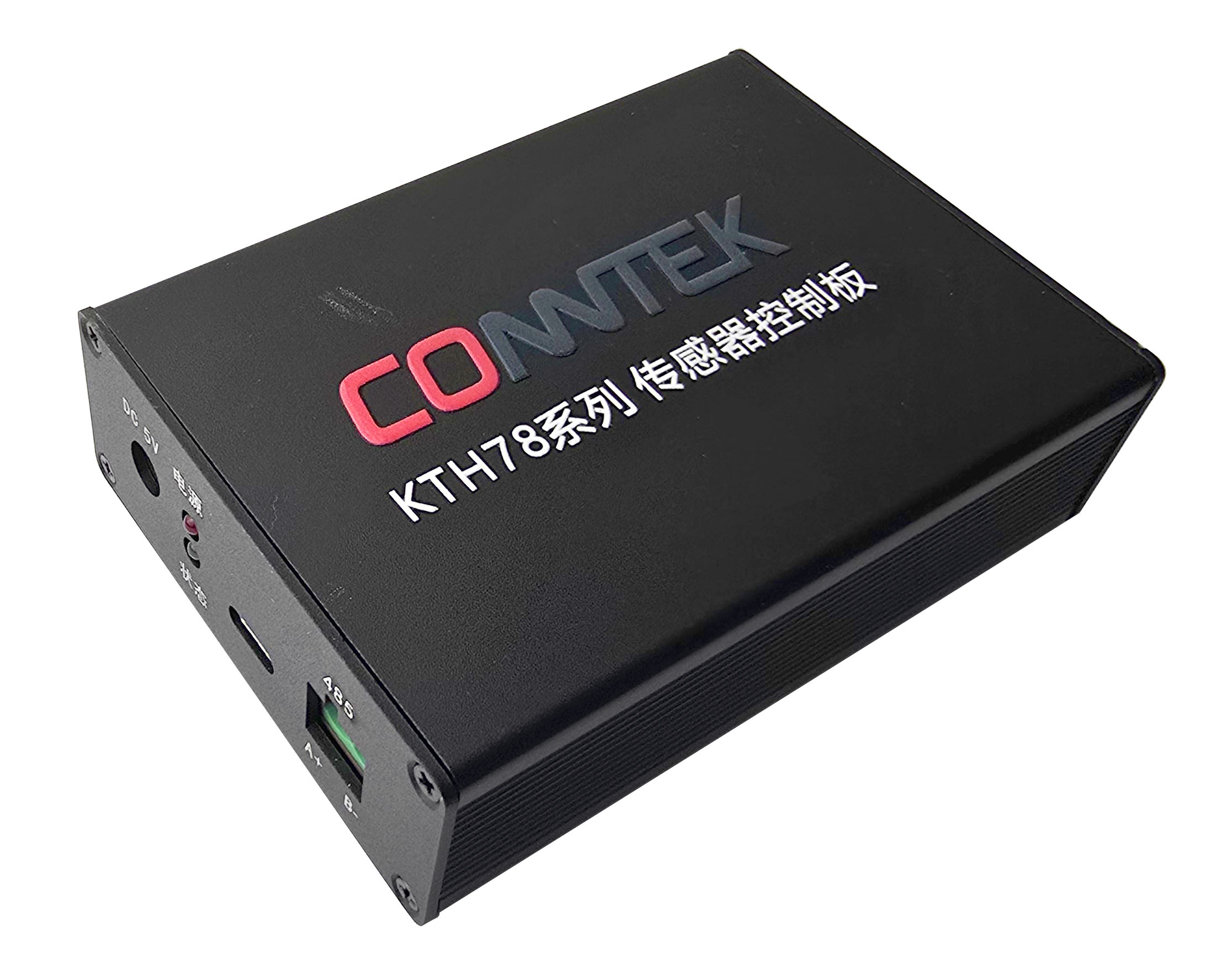

Sensor Control Board with metal housing
Flat track connecting cable
USB-C cable
Cardboard box

158,00 €

Technical Data

Downloads

KTH7801 datasheet (PDF)

EVM7801 User Manual (PDF)

KTH78-EVM-Kit-Software-and-Manual (ZIP)

Conntek Product Catalog (PDF)

Programmable non-contact Hall Magnetic Encoder, 16-bit, ABZ and PWM output

KTH7801
Read more
