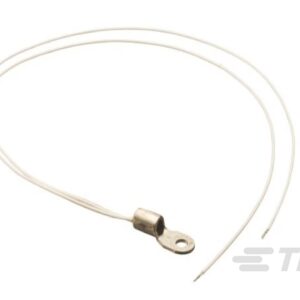

This probe consists of a NTC thermistor soldered to a 24 AWG stranded TPE cable and potted in a copper housing. The assembly is over molded leaving the copper housing exposed for fast time response. A metal clip is supplied with the assembly for easy attachment.
Customized configurations available on request for volume applications. Options include:
| Part Number | Resistance at +25°C |
Beta Value (25-85) |
Length (mm) (Dimension A) |
| 20027935-01 | 5000 Ω | 3976 | 1000 |
| 20027935-02 | 3000 | ||
| 20027935-03 | 10000 | ||
| 20027935-11 | 10000 Ω | 1000 | |
| 20027935-12 | 3000 | ||
| 20027935-13 | 10000 | ||
| GA10K3D1217 | 3435 | 1000 | |
| GA10K3D1271 | 3000 | ||
| GA10K3D1303 | 10000 | ||
| 20027935-31 | 30000 Ω | 3942 | 1000 |
| 20027935-32 | 3000 | ||
| 20027935-33 | 10000 | ||
| 20027935-41 | 100000 Ω | 4000 | 1000 |
| 20027935-42 | 3000 | ||
| 20027935-43 | 10000 |
PT or NTC sensor options t
using thermally conductive epoxy resin for improved time response.
