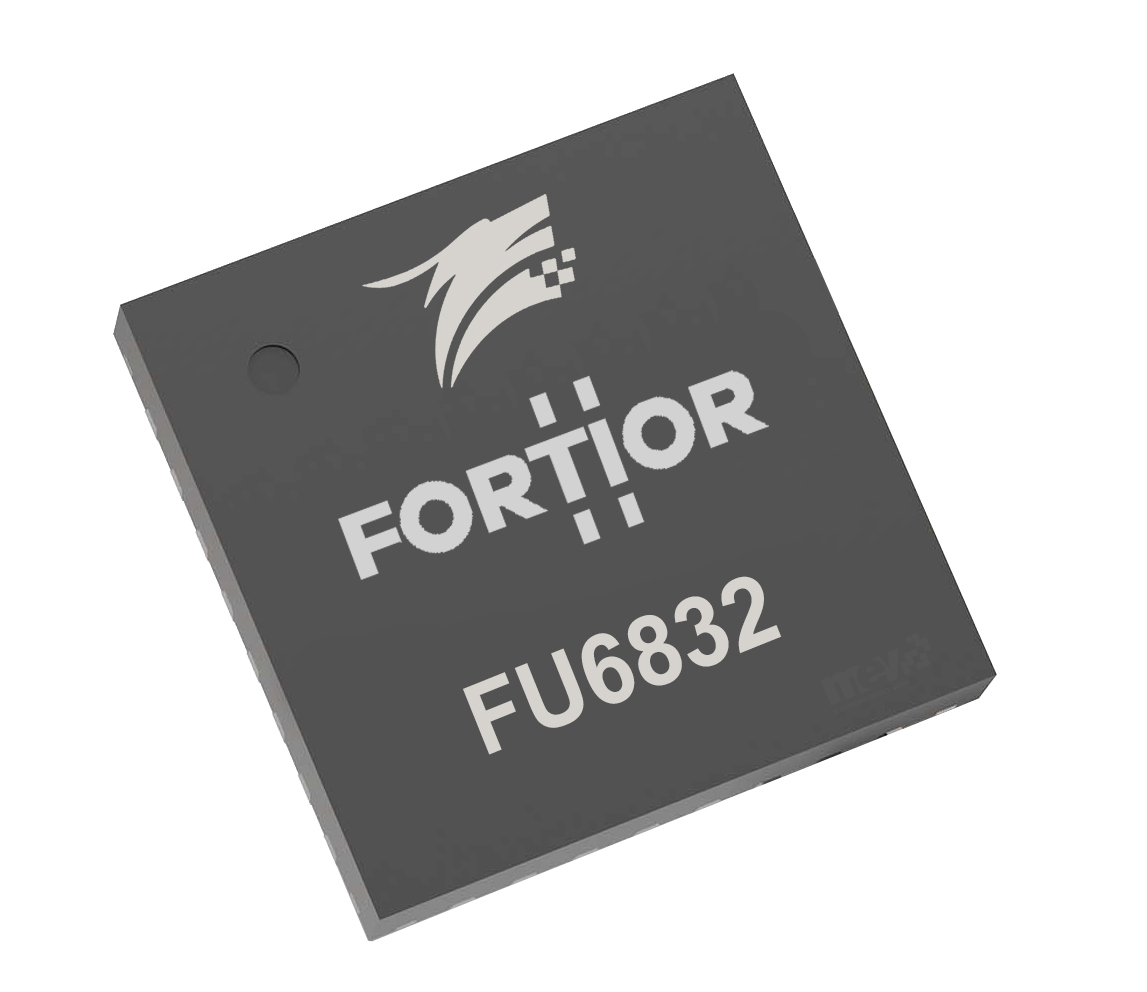

The high-performance motor drive chip incorporates MotionEngine ME core and 8051 core with 16k FLASH and 1k RAM.
ME core integrates FOC, MDU, LPF, PID and SVPWM modules that allow for automatic calculation of FOC or square-wave control by the hardware for sensored/sensorless BLDC/PMSM motors. 8051 core is used for parameter configuration and routine processing. Most of 8051 core instruction cycle takes 1T or 2T clock cycle(s).
The dual cores work in parallel to achieve high-performance motor control. The chip integrates high-speed operational amplifiers, comparators, pre-driver, high-speed ADC, multiplier/divider, CRC, SPI, I2C, UART, LIN, Timers, PWM module and high-voltage LDO, which are suitable for FOC or square-wave based BLDC/PMSM motors.
>
| P/N: | FU6832L | FU6832 N | FU6832 S | FU6832 F |
| Package | LQFP48 7×7 | QFN32 4×4 | SSOP24 | QFN24 4×4 |
| Motion Engine ME | x | x | x | x |
| FOC Hardware | x | x | x | x |
| SVPWM Hardware | x | x | x | x |
| BLDC Hardware | x | x | x | x |
| Single Phase | – | – | – | – |
| PI/PID | 4 | 4 | 4 | 4 |
| LPF | 4 | 4 | 4 | 4 |
| MDU | 4 | 4 | 4 | 4 |
| Sin/Cos/Atan | 4 | 4 | 4 | 4 |
| PFC Hardware | – | – | – | – |
| MCU core | 8051 | 8051 | 8051 | 8051 |
| MIPS [MHz] | 24 | 24 | 24 | 24 |
| Flash [kB] | 16 | 16 | 32 | 32 |
| RAM [kB] | 1 | 1 | 4 | 4 |
| GPIO | 20 | 20 | 22 | 24 |
| I²C | 1 | 1 | 1 | 1 |
| UART | 2 | 2 | 2 | 2 |
| SPI | 1 | 1 | 1 | 1 |
| CAN | – | – | – | – |
| LIN | 1 | 1 | 1 | 1 |
| DMA | 2 | 2 | 2 | 2 |
| Timer | 6 | 6 | 6 | 6 |
| WDT | 1 | 1 | 1 | 1 |
| PreDriver | 3P3N | 3P3N | 3P3N | 3P3N |
| Driver Voltage [V] | 5 … 36 | 5 … 36 | 5 … 36 | 5 … 36 |
| Drive Current, max. + [A] | 0,15 | 0,15 | 0,15 | 0,15 |
| Drive Current, max. – [A] | 0,18 | 0,18 | 0,18 | 0,18 |
| Sensor/Sensorless Square Wave | x | x | x | x |
| Sensor SVPWM | x | x | x | x |
| Sensor FOC | x | x | x | x |
| Sensorless FOC | x | x | x | x |
| ADC | 1 | 1 | 1 | 1 |
| ADC channels | 14 | 11 | 7 | 7 |
| ADC resolution [bit] | 12 | 12 | 12 | 12 |
| DAC | 2 | 2 | 2 | 2 |
| DAC resolution [bit] | 9/6 | 9/6 | 9/6 | 9/6 |
| OP | 3 | 3 | 1 | 1 |
| Comparator | 4 | 4 | 4 | 4 |
| Temp. Range (5-28/36V) | -40…85°C | -40…85°C | -40…85°C | -40…85°C |
| Temp. Range (5-15/28V) | -40…105°C | -40…105°C | -40…105°C | -40…105°C |
