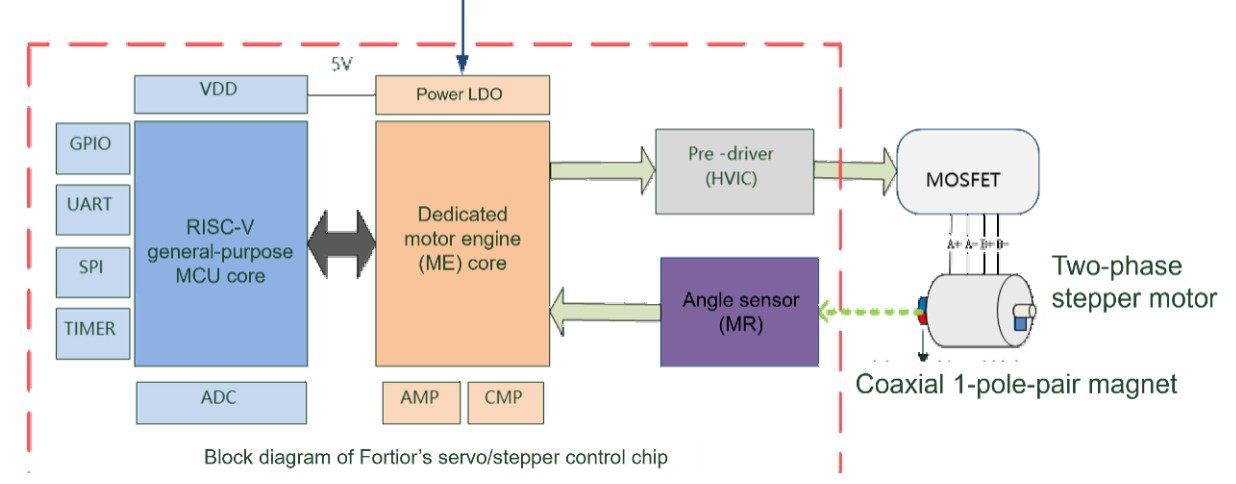

The FU7371 is a highly integrated dual-core motor control MCU combining Fortior’s dedicated Motor Engine (ME) with a 32-bit RISC-V core. The ME core integrates hardware-based FOC and CORDIC functions, while the RISC-V core handles parameter configuration, communication and application-specific processing. This parallel architecture enables high-performance real-time control while keeping sufficient processing resources available for the customer application.

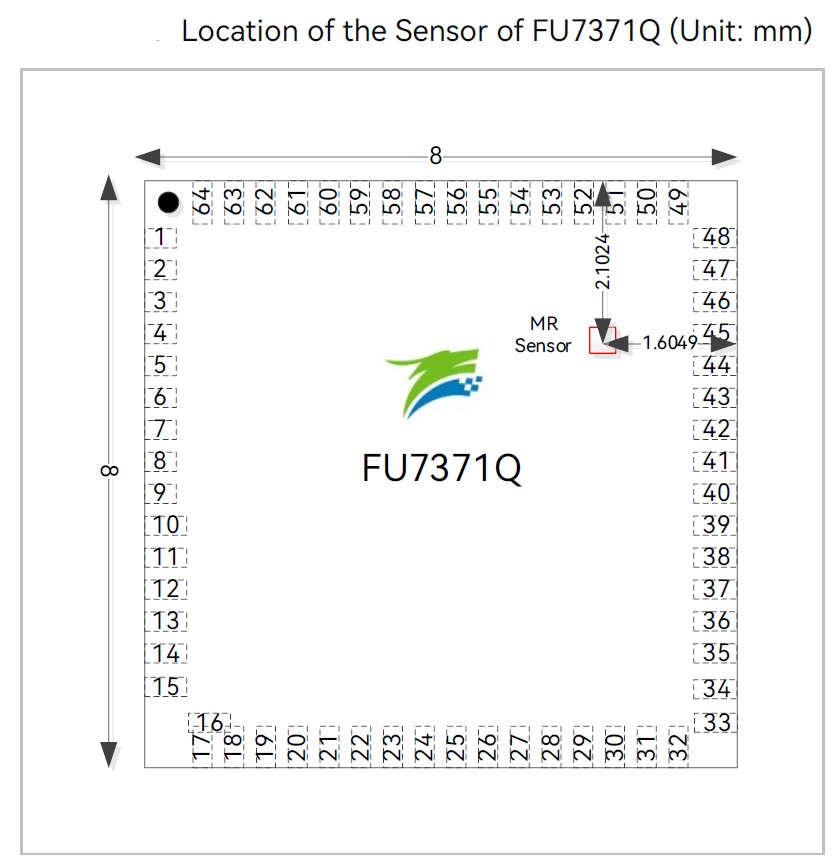

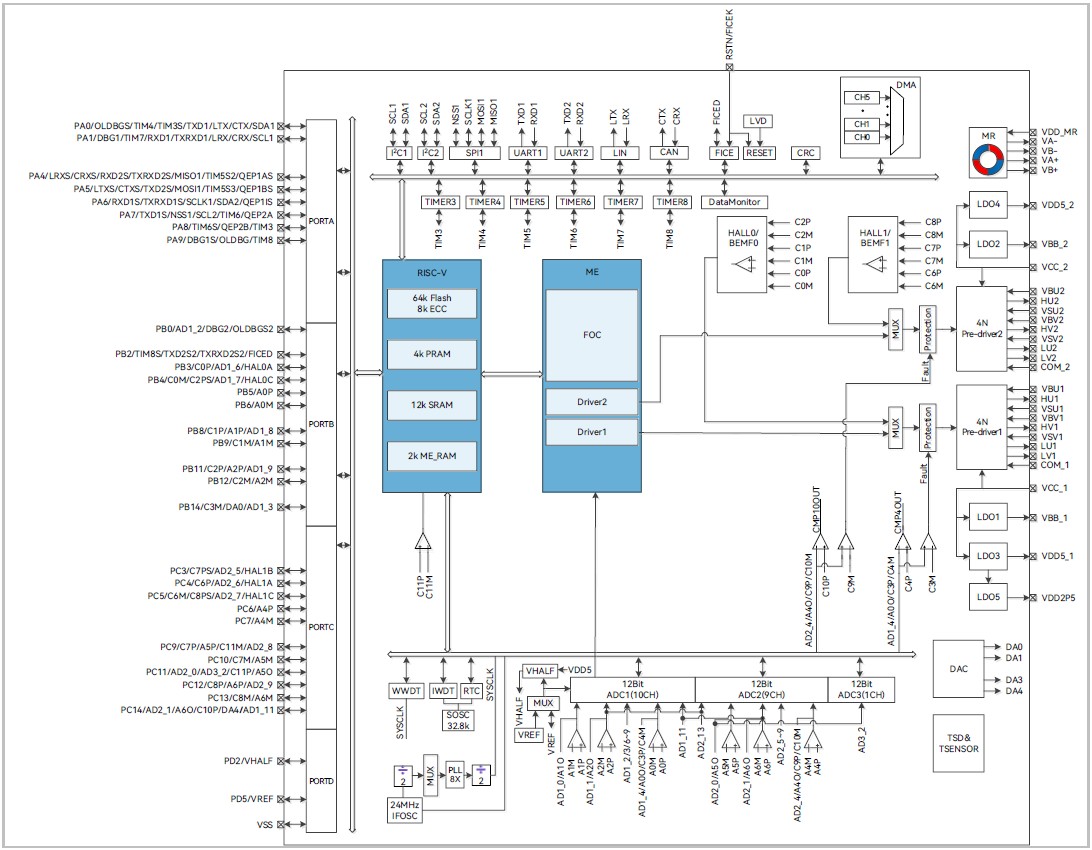

Designed especially for compact closed-loop motor drives, the FU7371 integrates a 180° AMR position sensor, three 12-bit ADCs, six configurable operational amplifiers, seven comparators and two 4N MOSFET pre-drivers with a high-side floating voltage of up to 100 V. External position feedback can be connected via QEP interfaces, while CAN/CAN-FD, UART, LIN, SPI and I²C provide flexible system connectivity. With its high level of integration, the FU7371 is particularly suited for compact two-phase FOC stepper drives and other space- and cost-sensitive servo applications.
| P/N: | FU7371 Q |

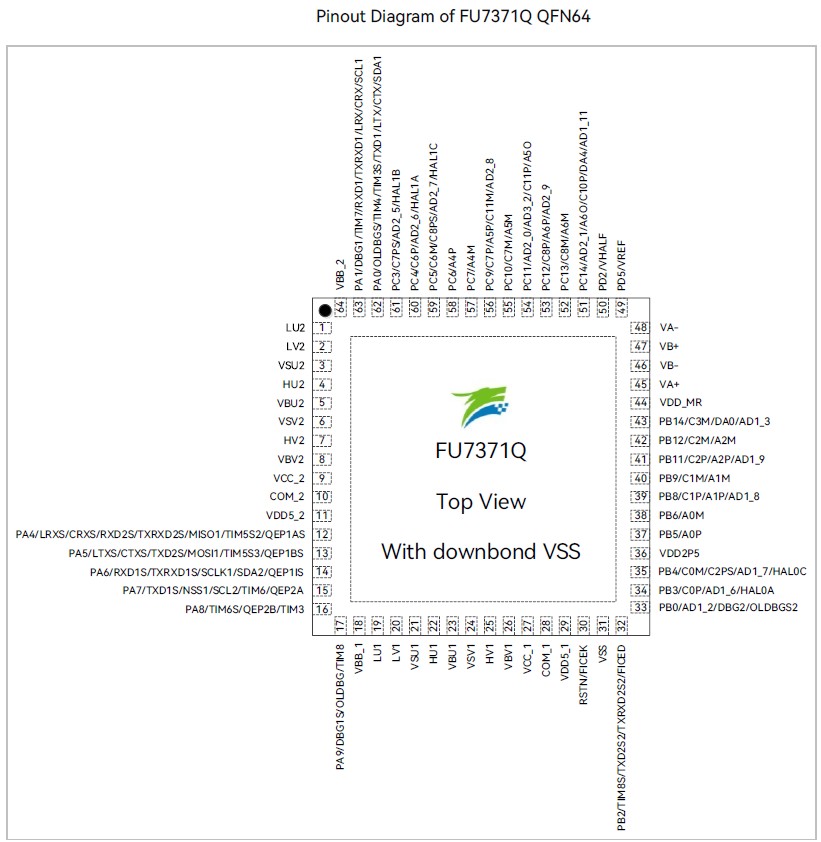

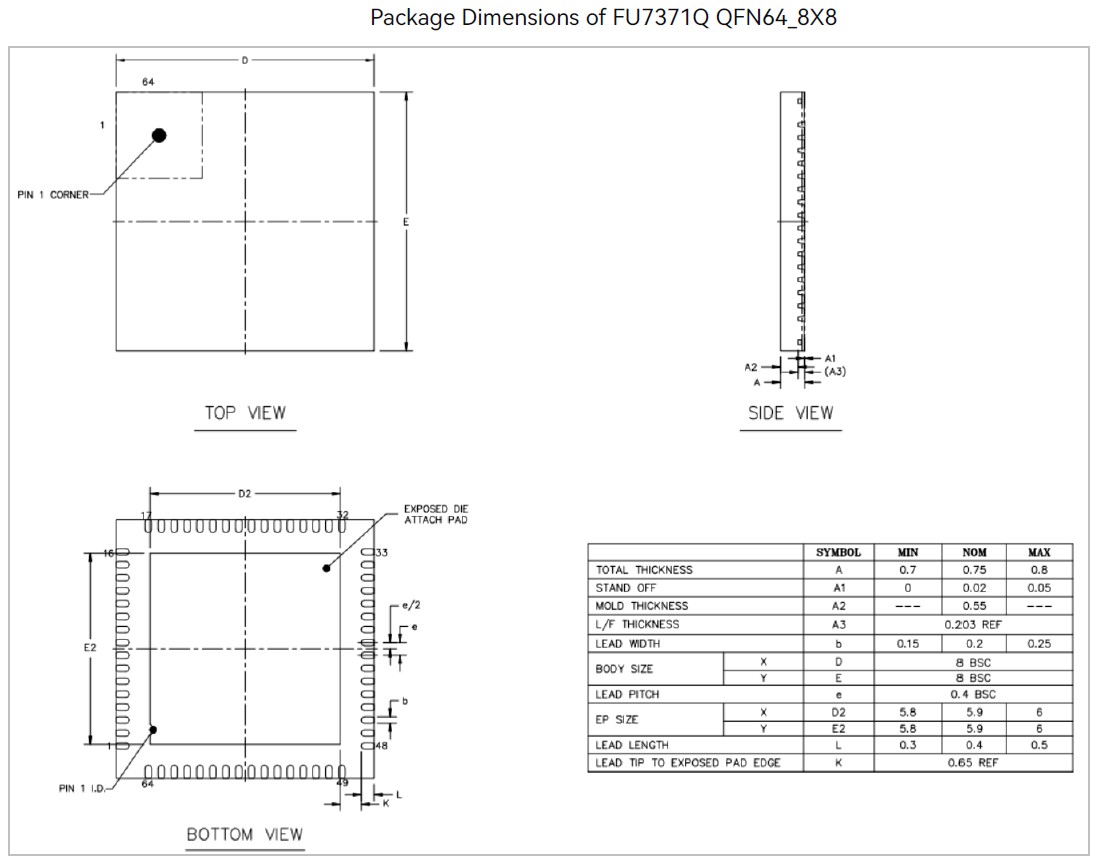

| Package | QFN64 8×8 |
| Motion Engine ME | x |
| Dual Motor | – |
| FOC Hardware | x |
| PFC Hardware | – |
| MCU core | RISC-V |
| System clock [MHz] | 48/24 |
| Flash [kB] | 64 |
| SRAM [kB] | 12 |
| PRAM [kB] | 4 |
| GPIO | 32 |
| I²C | 2 |
| UART | 2 |
| SPI | 1 |
| CAN-FD | 1 |
| LIN | 1 |
| BiSS | – |
| DMA | 6 |
| Timer | 6 + SysTick + RTC |
| WDT | 2 (IWDT + WWDT) |

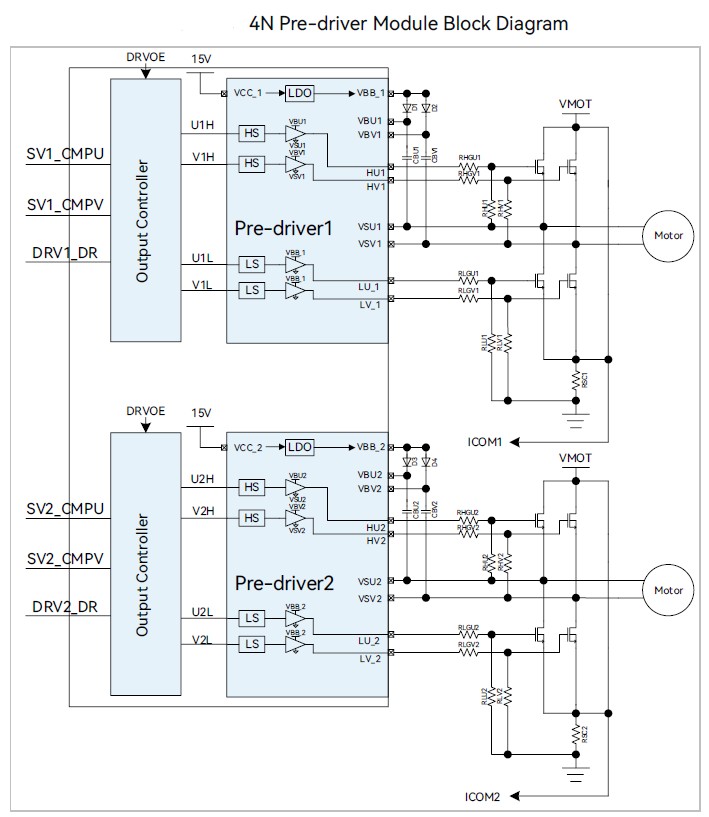

| PreDriver | 2x 4N |
| Driver Voltage, max. [V] | 100 |
| Drive Current, max. + [A] | 0,8 |
| Drive Current, max. – [A] | 0,8 |
| Sensor/Sensorless Square Wave | – |
| Sensor SVPWM | x |
| Sensor FOC | x |
| Sensorless FOC | – |
| ADC | 3 |
| ADC channels | 20 |
| ADC resolution [bit] | 12 |
| DAC | 4 |
| DAC resolution [bit] | 9/9/6/6 |
| OP | 6 |
| Comparator | 7 |
| Temp. Range | -40…85°C |
