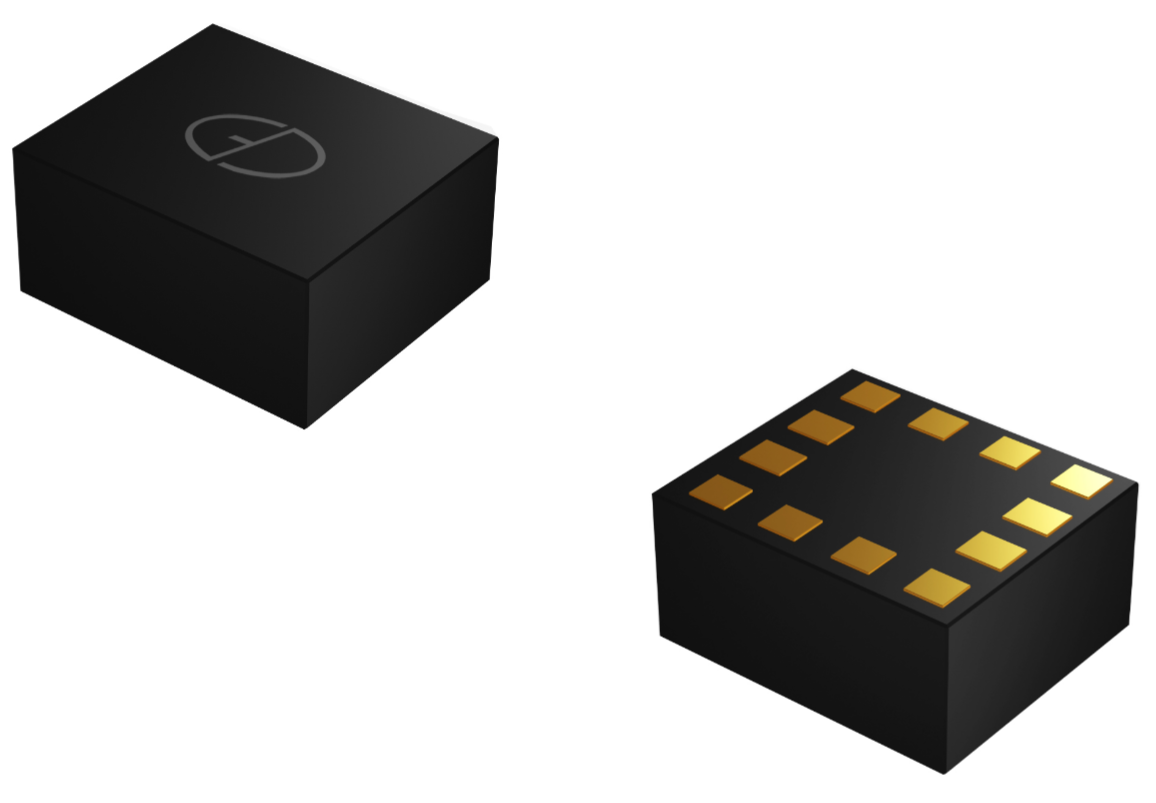

The GSDC213 is a system-in-package (SiP) featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor. The module has linear acceleration full scales of ±2g / ±4g / ±8g / ±16g and a magnetic field full scale of ±48 gauss. It also includes an I2C serial bus interface that supports standard and fast mode (100kHz and 400 kHz) . The system can be configured to generate an interrupt signal for free-fall, motion detection and magnetic field detection. Thresholds and timing of interrupt generators are programmable by the end user. Magnetic and accelerometer blocks can be enabled or put into power-down mode separately. Packaged in 2x2x1.1mm land grid array (LGA), the GSDC213 has an outstanding operating temperature range of -40°C to +85°C.
Key Features and Specifications
Accelerometer
Magnetometer
Applications
