High reliability epoxy coated NTC temperature sensors for Space Applications

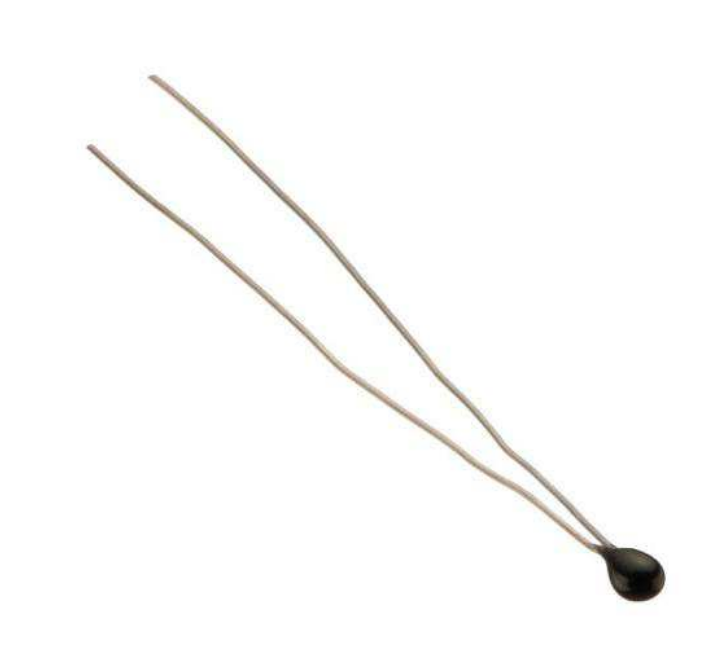

Epoxy coated discrete NTC Thermistor chip soldered to 30AWG Tin/Lead (63/37) plated copper wires. The construction is based on TE Connectivity’s established ESA Qualified NTC Thermistor probe which has been used in the industry for over 25 years offering proven performance and outstanding reliability.

Technical Data

Key Specifications

Manufacturing and testing based on ESCC (European Space Components Coordination) Generic Specification No. 4006: This specification defines the general requirements for the qualification, procurement and delivery of NTC Thermistors for space applications.
ESCC Detail Specification No. 4006013: This specification details the ratings, physical and electrical characteristics and test and inspection data. It supplements the requirements of, and shall be read in conjunction with, ESCC Generic Specification No. 4006
Operating temperatures ranging from -55°C to +115°C
Storage temperatures ranging from -55°C to +115°C
1000Ω to 100KΩ nominal resistances at 25°C
ESA qualified.
ESCC Detail Specification
Epoxy coated.
30AWG Tin/Lead (63/37) plated copper wires
Operating temperature range: -55°C to + 115°C

Product Configurations

TE Connectivity Part Number	ESCC No.	Dimension A (mm)	Dimension B (mm)	Dimension C (mm)	Dimension D (mm)	Dimension d (mm)	Dimension E (mm)
GA100K6A441LEVB	400601307	50.8 Min	2.0 Max	2.0 Max	3.50 Max	0.23-0.28	1.6 Max
GA10K3A739LEVB	400601306	50.8 Min	2.54 Max	2.54 Max	3.50 Max	0.23-0.28	1.6 Max
GA1K3A351	400601301	50.8 Min	4.87 Max	4.87 Max	6.35 Max	0.23-0.28	2.0 Max
GA2K3A352LEVB	400601302	50.8 Min	3.43 Max	3.43 Max	4.40 Max	0.23-0.28	2.0 Max
GA3K3A353LEVB	400601303	50.8 Min	2.81 Max	2.81 Max	3.68 Max	0.23-0.28	1.6 Max
GA4K3A354LEVB	400601304	50.8 Min	2.54 Max	2.54 Max	3.50 Max	0.23-0.28	1.6 Max
GA5K3A355LEVB	400601305	50.8 Min	2.54 Max	2.54 Max	3.50 Max	0.23-0.28	1.6 Max
