KTM5900 is an 24-bit absolute angle encoder with 4096 pole pairs subdivision. It works with magneto-resistive sensors (TMR) to create a precise non-contact magnetic encoder. It reads sine and cosine signals from the sensor rapidly, enabling angle calculation through its high-speed digital circuit.
KTM5900 supports versatile angle output modes, including a 36Mbps SPI absolute angle output, programmable ABZ quadrature pulse incremental output (up to 65536 lines), programmable UVW incremental output (up to 256 pole pairs), and PWM absolute angle output. Additional features of KTM5900 include automatic linear and non-linear calibration, Z signal calibration, absolute position synchronization for multi-pole applications, automatic TMR matching for orthogonal signal calculation, and programmable operational amplifier gain.
KTM5900 has made some optimizations to its functional safety, such as the SPI angle output communication with an 8-bit CRC verification and the integration of many self diagnostic alarm functions, such as TMR Input Sine/Cosine Amplitude Anomaly，Input Undervoltage Detection，Excessive Filter Lag，etc.

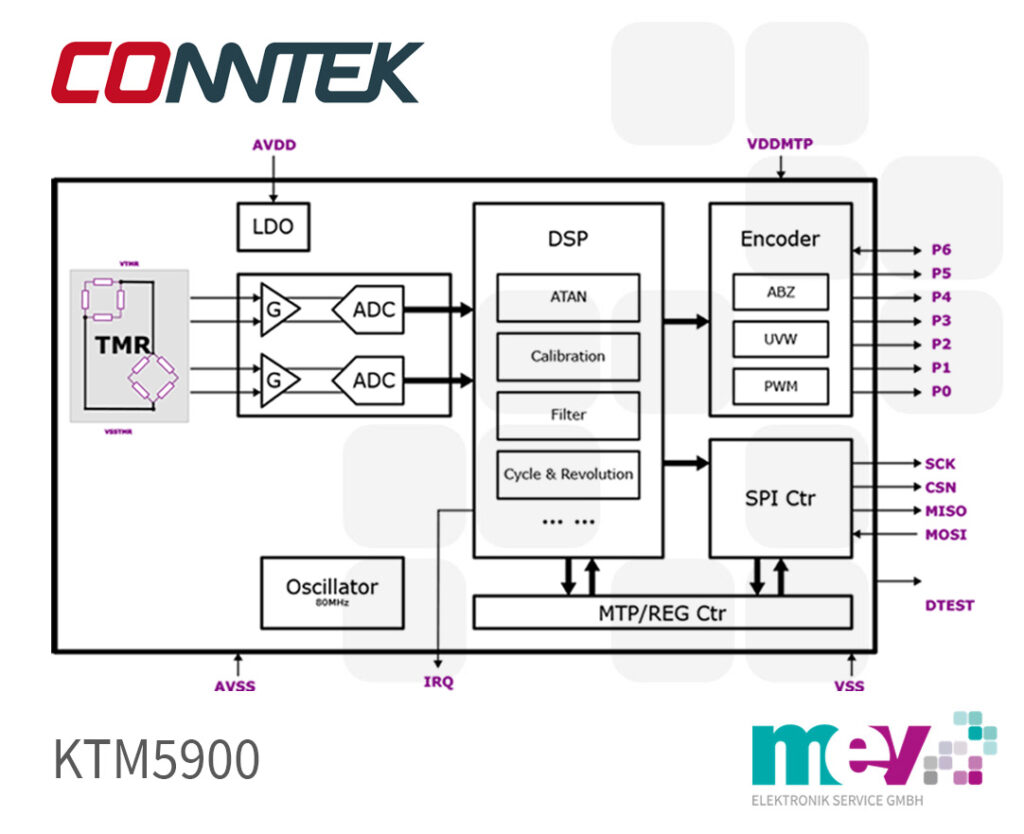

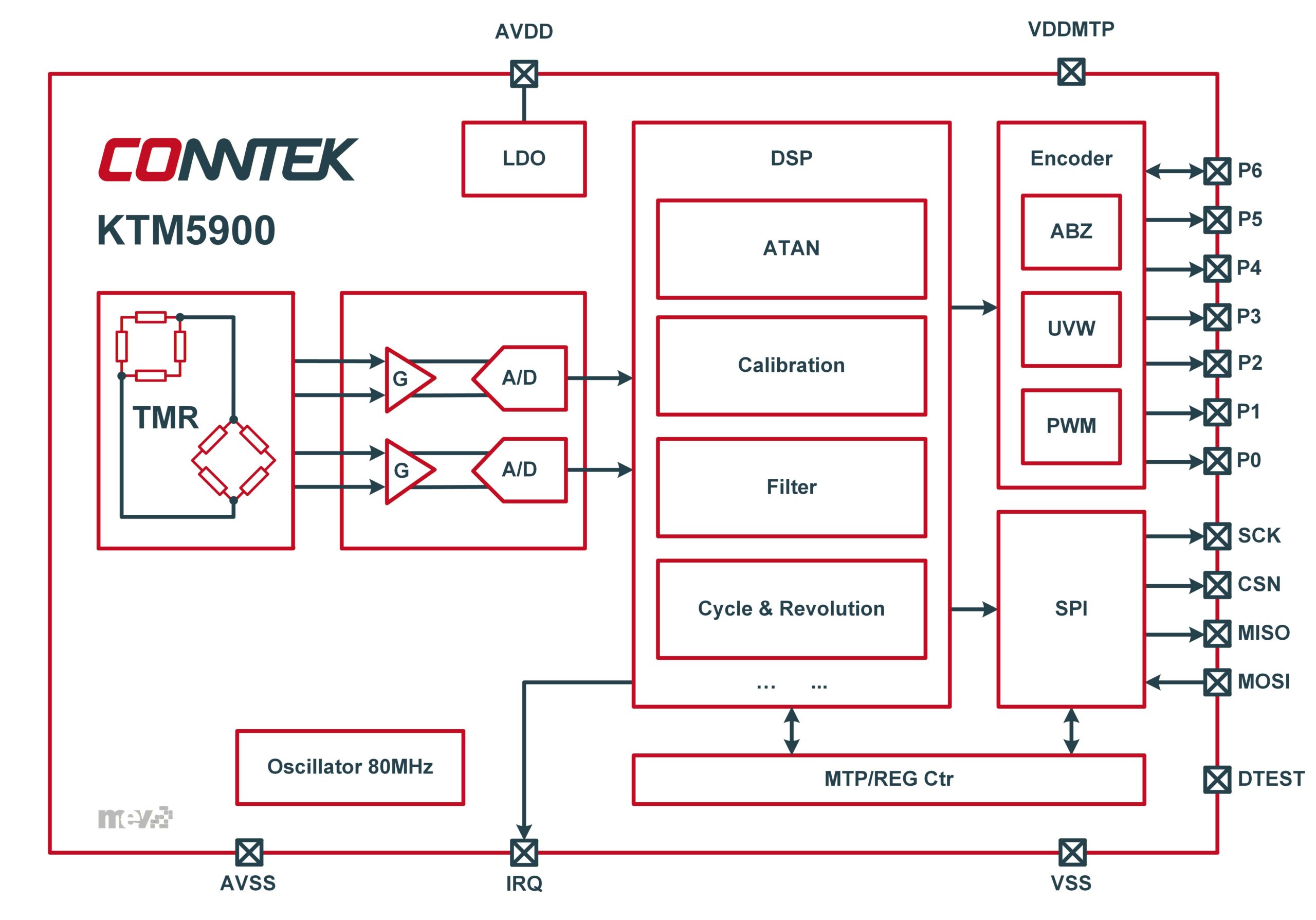

KTM5900 is a 24bit TMR Magnetic Encoder. It includes several functional modules, such as a 12-bit (4096 pole pairs) multipole pair counter, and an optimized filter, which can be configured through registers for the desired encoder resolution. This SoC offers a wide range of output options, including ABZ/UVW/PWM/SPI interfaces.
The system is equipped with automatic calibration and adaptive functions to correct sensor offset, sine/cosine amplitude matching, and phase orthogonality, ensuring minimal angle error and jitter. Additionally, the KTM5900 SoC features an industry leading 2MHz 16-bit SAR ADC to enhance performance and precision.
A significant advantage of KTM5900 is its ability to automatically detect and correct non-linear errors during normal operation, with just a button press or an SPI command. Furthermore, KTM5900 integrates a 256-point error lookup table, allowing customers to improve absolute accuracy by writing nonlinear error corrections from optical encoders into KTM5900.
When connected to AMR/TMR sensors and a single-pole magnet combination, both one-button self-calibration and the 256-point error lookup table can achieve INL≤0.025°.
