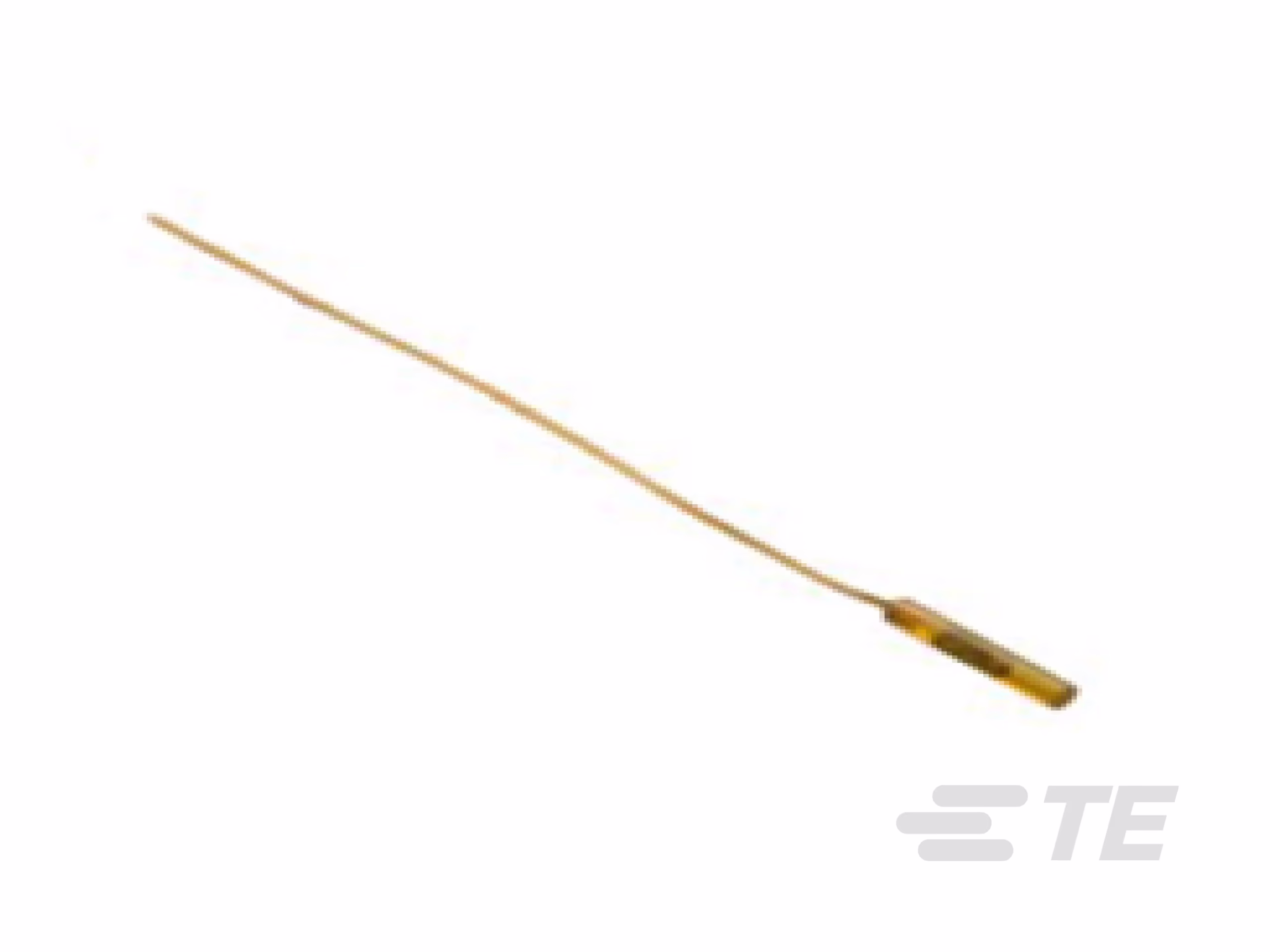

Micro BetaCHIP (MCD) Thermistor Probes

Micro BetaCHIP (MCD) thermistor probes are suited for applications that require rapid temperature response and where space is limited. These NTC thermistors are potted in a polyimide tube with a thermally conductive epoxy.

Technical Data

Key Specifications

2K to 100K Ohms Resistance @25ºC
0.2ºC Tolerance @ 25ºC
Thermally Conductive Epoxy Coating
38 AWG Solid Nickel Bifilar with Polyester Type Insulation
Fast Time Response
Small Tip Diameter
±0.2ºC tolerance @ +25ºC
Custom tolerances available
Smaller than miniature BetaCURVE devices
Rapid time response (200 milliseconds in liquids)
Temperature range -40ºC to +125ºC

Product Configurations

Product Description	Part Number	Resistance (at 25°C)	β-Value(25/85)	Series
MCD PROBE, 100K OHMS,+/- 0.2C @ 25C	GA100K6MCD1	100 kΩ	4261 K	MEAS MCD
MCD PROBE, 10K OHMS,+/- 0.2C @ 25C	GA10K3MCD1	10 kΩ	3976 K	MEAS MCD
MCD PROBE, 2K OHMS,+/- 0.2C @ 25C	GA2K7MCD1	2 kΩ	3499 K	MEAS MCD
