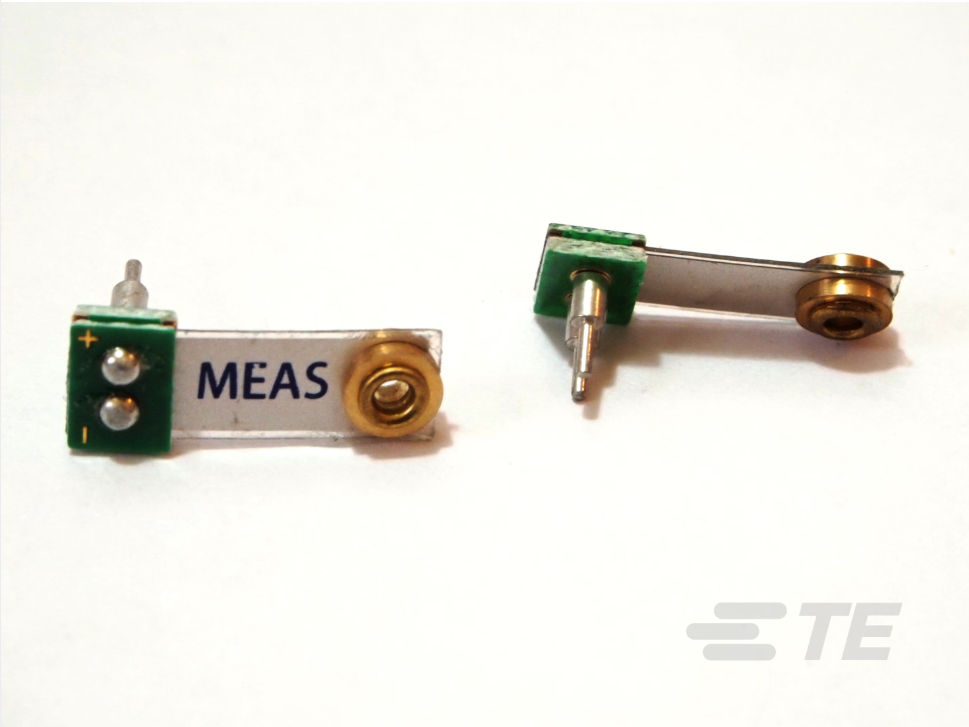

The MiniSense 100NM is a low-cost cantilevertype
vibration sensor offering moderate sensitivity over a
useful frequency band up to 200 Hz. Pins are designed for
easy installation and are solderable. Horizontal and
vertical mounting options are offered. The active sensor
area is shielded for improved RFI/EMI rejection. Rugged,
flexible PVDF sensing element withstands high shock
overload. Sensor has excellent linearity and dynamic
range, and may be used for detecting either continuous
vibration or impacts.
Features:
· High Voltage Sensitivity (65 mV/g)
· Over 6 V/g at Resonance
· Horizontal or Vertical Mounting
· Shielded Construction
· Solderable Pins, PCB Mounting
· 1% Linearity
· Up to 200 Hz (12,000 rpm) Operation Below Resonance
Applications:
· Low Cost Vibration Sensing
· Car Alarms
· Body Movement
· Medical Applications
· Security Systems
