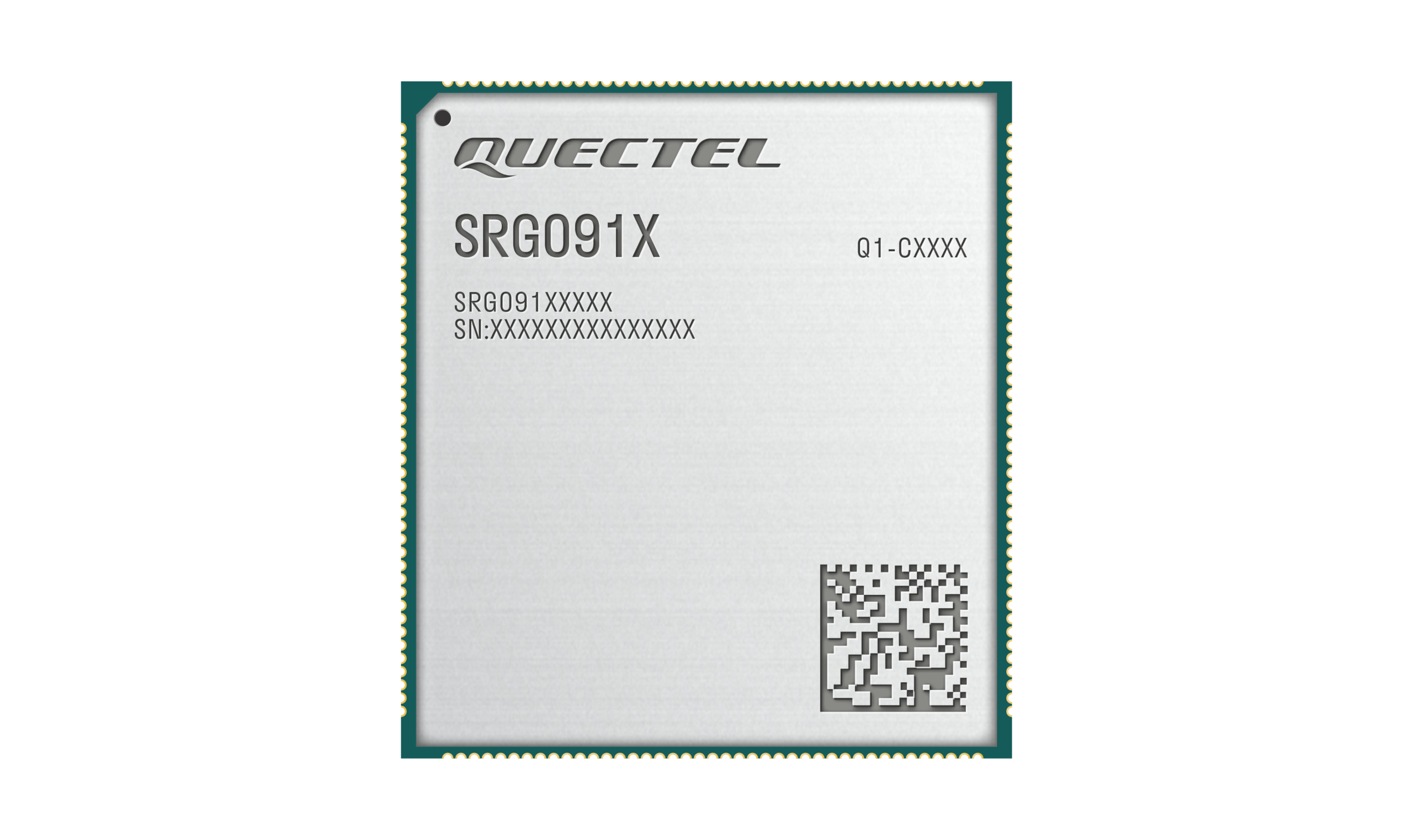

The SRG091X series is a Quectel short-range module series featuring NXP’s IoT chip MIMX9131CVVXJAB as its core. This chip integrates a high-performance Arm Cortex-A55 CPU core with a maximum operating frequency of up to 1.4GHz. With embedded 1GByte LPDDR4, 8GByte eMMC memory, Wi-Fi 6, and Bluetooth 5.4, 802.15.4 (Thread/ Zigbee), the module is ideal for industrial applications requiring high-level automation and consumer applications requiring high data rates and multimedia functions.
The SRG091X series integrates a comprehensive set of peripheral interfaces, including RGB interface supporting LCD screen display, ethernet ports, SPI, UARTs, I2C, I3C, USB 2.0, CAN-FD interfaces, ADC, and SPDIF. Equipped with a programmable image sensor interface supporting resolutions up to 2K, the module is capable of running deep learning algorithms to meet the demands of smart terminals and industrial edge devices.
Furthermore, with support for Linux/Zephyr operating systems and frameworks such as QT, the module can be paired with Quectel Wi-Fi HaLow and Wi-Fi modules, extending its applicability to a wide range of applications, including industrial HMIs, gateways, scanners, printers, energy meters, EV charging stations, smart speakers, POS systems, smart doorbells, and smart locks.
