Standard Epoxy NTC Thermistors

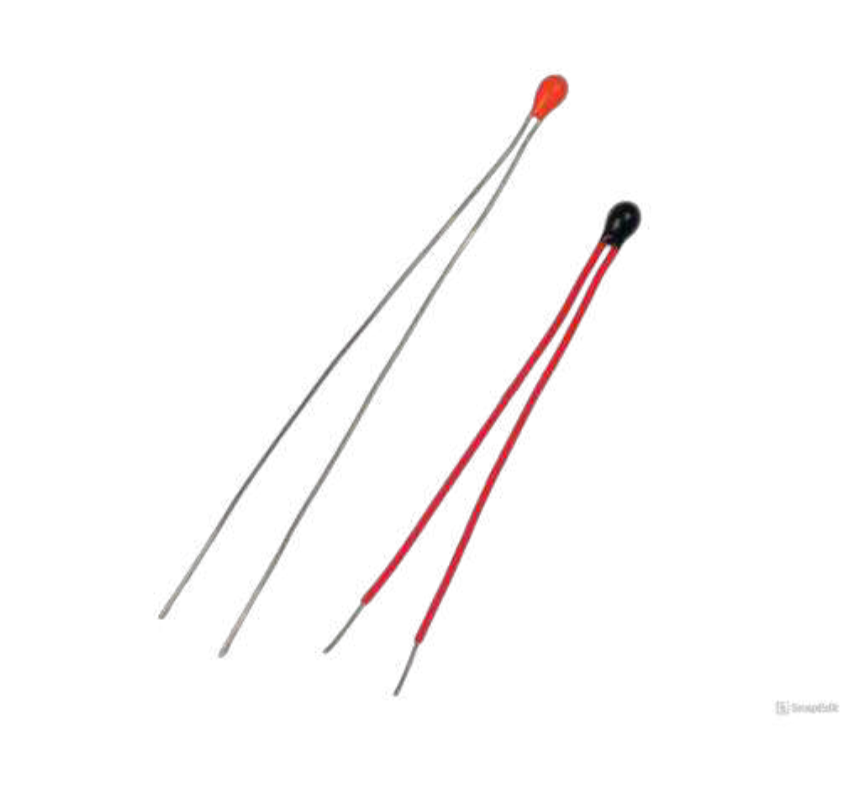

TE Connectivity offers a comprehensive range of epoxy coated NTC thermistors with tin plated or PTFE insulated leads. The sensors are available in different sizes from 2.4 to 2.8 mm bead diameters and 32 AWG to 28 AWG wire sizes. They offer a choice of precision temperature tolerance classifications for a wide variety of customer applications, such as temperature measurements, temperature indication, temperature control, and thermal compensation. Thermistor interchangeability is an important factor for cost efficiency as the need for expensive individual calibrations are not necessary as each device will match the published Resistance -Thermistor characteristics for a given thermistor and will be within the specified deviation limits at a single point or over a specific temperature range.

Technical Data

Key Specifications

Interchangeability
Proven stability and reliability
Temperature range -40°C to +125°C
Rapid time response
Thermally conductive epoxy coating
Insulated or uninsulated leads

Product Overview Table

Type	Part Description	Wire Gauge (AWG)	Wire length (mm)	Bead size (mm)	Resistance Range (Ω)	Tolerance Range	Dissipation Constant in Still Air @ +25ºC	Time Response (Stirred Oil)
I	Bare tin-plated copper alloy lead NTC (Uninsulated type)	32	76	2.4	2.2K → 100K	±0.2ºC from 0 to +70ºC	0.75 mW/°C	<1.0 s
II	Insulated silver-plated copper lead NTC (PTFE)	30	76	2.4	2.2K → 100K	±0.2ºC from 0 to +70ºC	0.85 mW/°C	<1.0 s
III	Bare tin-plated copper lead NTC 2 mW DC type	30	46	2.4	2.2K → 100K	±0.2ºC from 0 to +70ºC	2.0 mW/°C	<1.3 s
IV	Bare tin-plated copper lead NTC 3 mW DC type	28	46	2.8	2.2K → 100K	±0.2ºC from 0 to +70ºC	3.0 mW/°C	<1.5 s
V	Bare tin-plated copper alloy lead NTC Low ohmic <1KΩ	32	76	2.4	0.1K → 1K	±0.2ºC from 0 to +25ºC	0.75 mW/°C	<1.0 s
VI	Bare tin-plated copper alloy lead NTC Medical Tolerance	32	76	2.4	2.2K → 10K	±0.05ºC from 32 to +44ºC	0.75 mW/°C	<1.0 s
VII	Bare tin-plated copper alloy- lead NTC Single point tolerance	32	76	2.4	0.1K → 1M	±1% at +25ºC	0.75 mW/°C	<1.0 s

Product Configurations

Thermistor design	Spalte1	Internal Product Number	Lead Wire Length	Resistance (at 25°C)	Resistance Tolerance (at 25°C)	β-Value(25/85)	Tolerance β-Value	Operating Temperature Range
I	GA100K6A1A	GA100K6A1A	76 mm	100 kΩ	± .25 %	4261 K	±.5 %	-40 – 125 °C
I	GA100K6A1B	GA100K6A1B	76 mm	100 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
I	GA100K6A1C	GA100K6A1C	76 mm	100 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
I	GA100K6A1D	GA100K6A1D	76 mm	100 kΩ	± 2 %	4261 K	±.5 %	-40 – 125 °C
I	GA10K3A1A	GA10K3A1A	76 mm	10 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
I	GA10K3A1B	GA10K3A1B	76 mm	10 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
I	GA10K3A1C	GA10K3A1C	76 mm	10 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
I	GA10K3A1D	GA10K3A1D	76 mm	10 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
I	GA10K4A1A	GA10K4A1A	76 mm	10 kΩ	± .25 %	3694 K	±.5 %	-40 – 125 °C
I	GA10K4A1B	GA10K4A1B	76 mm	10 kΩ	± .5 %	3694 K	±.5 %	-40 – 125 °C
I	GA10K4A1C	GA10K4A1C	76 mm	10 kΩ	± 1 %	3694 K	±.5 %	-40 – 125 °C
I	GA10K4A1D	GA10K4A1D	76 mm	10 kΩ	± 2 %	3694 K	±.5 %	-40 – 125 °C
I	GA2.2K3A1A	11033270-00	76 mm	2.252 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
I	GA2.2K3A1B	11025821-00	76 mm	2.252 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
I	GA2.2K3A1C	11024456-00	76 mm	2.252 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
I	GA30K5A1A	GA30K5A1A	76 mm	30 kΩ	± .25 %	3942 K	±.5 %	-40 – 125 °C
I	GA30K5A1B	GA30K5A1B	76 mm	30 kΩ	± .5 %	3942 K	±.5 %	-40 – 125 °C
I	GA30K5A1C	20033193-00	76 mm	30 kΩ	± 1 %	3942 K	±.5 %	-40 – 125 °C
I	GA30K5A1D	GA30K5A1D	76 mm	30 kΩ	± 2 %	3942 K	±.5 %	-40 – 125 °C
I	GA30K6A1A	GA30K6A1A	76 mm	30 kΩ	± .25 %	4261 K	±.5 %	-40 – 125 °C
I	GA30K6A1B	GA30K6A1B	76 mm	30 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
I	GA30K6A1C	GA30K6A1C	76 mm	30 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
I	GA30K6A1D	GA30K6A1D	76 mm	30 kΩ	± 2 %	4261 K	±.5 %	-40 – 125 °C
I	GA3K3A1A	GA3K3A1A	76 mm	3 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
I	GA3K3A1B	GA3K3A1B	76 mm	3 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
I	GA3K3A1C	GA3K3A1C	76 mm	3 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
I	GA3K3A1D	GA3K3A1D	76 mm	3 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
I	GA50K6A1A	GA50K6A1A	76 mm	50 kΩ	± .25 %	4261 K	±.5 %	-40 – 125 °C
I	GA50K6A1B	GA50K6A1B	76 mm	50 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
I	GA50K6A1C	GA50K6A1C	76 mm	50 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
I	GA5K3A1A	GA5K3A1A	76 mm	5 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
I	GA5K3A1B	GA5K3A1B	76 mm	5 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
I	GA5K3A1C	GA5K3A1C	76 mm	5 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
I	GA5K3A1D	GA5K3A1D	76 mm	5 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
II	20033196-00	20033196-00	76 mm	2.252 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
II	20033202-00	20033202-00	76 mm	5 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
II	20033203-00	20033203-00	76 mm	5 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
II	20033205-00	20033205-00	76 mm	30 kΩ	± 2 %	3942 K	±0.5 %	-40 – 125 °C
II	20033211-00	20033211-00	76 mm	50 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
II	20033212-00	20033212-00	76 mm	100 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
II	GA100K6A1IA	GA100K6A1IA	76 mm	100 kΩ	± .25 %	4261 K	±0.5 %	-40 – 125 °C
II	GA100K6A1IB	GA100K6A1IB	76 mm	100 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
II	GA100K6A1ID	GA100K6A1ID	76 mm	100 kΩ	± 2 %	4261 K	±.5 %	-40 – 125 °C
II	GA10K3A1IA	GA10K3A1IA	76 mm	10 kΩ	± .25 %	3976 K	±0.5 %	-40 – 125 °C
II	GA10K3A1IB	GA10K3A1IB	76 mm	10 kΩ	± .5 %	3976 K	±0.5 %	-40 – 125 °C
II	GA10K3A1IC	GA10K3A1IC	76 mm	10 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
II	GA10K3A1ID	GA10K3A1ID	76 mm	10 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
II	GA10K4A1IA	GA10K4A1IA	76 mm	10 kΩ	± .25 %	3694 K	±.5 %	-40 – 125 °C
II	GA10K4A1IB	GA10K4A1IB	76 mm	10 kΩ	± 1 %	3694 K	±.5 %	-40 – 125 °C
II	GA10K4A1IC	GA10K4A1IC	76 mm	10 kΩ	± 1 %	3694 K	±.5 %	-40 – 125 °C
II	GA2.2K3A1IA	11028086-00	76 mm	2.252 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
II	GA2.2K3A1IB	11033130-00	76 mm	2.252 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
II	GA2.2K3A1IC	20033195-00	76 mm	2.252 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
II	GA30K5A1IA	GA30K5A1IA	76 mm	30 kΩ	± .25 %	3942 K	±0.5 %	-40 – 125 °C
II	GA30K5A1IB	GA30K5A1IB	76 mm	30 kΩ	± .5 %	3942 K	±.5 %	-40 – 125 °C
II	GA30K5A1IC	GA30K5A1IC	76 mm	30 kΩ	± 1 %	3942 K	±0.5 %	-40 – 125 °C
II	GA30K6A1IA	GA30K6A1IA	76 mm	30 kΩ	± .25 %	4261 K	±.5 %	-40 – 125 °C
II	GA30K6A1IB	GA30K6A1IB	76 mm	30 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
II	GA30K6A1IC	20033206-00	76 mm	30 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
II	GA30K6A1ID	20033208-00	76 mm	30 kΩ	± 2 %	4261 K	±.5 %	-40 – 125 °C
II	GA3K3A1IA	GA3K3A1IA	76 mm	3 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
II	GA3K3A1IB	GA3K3A1IB	76 mm	3 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
II	GA3K3A1IC	20033198-00	76 mm	3 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
II	GA3K3A1ID	GA3K3A1ID	76 mm	3 kΩ	± 2 %	3976 K	±.5 %	-40 – 125 °C
II	GA50K6A1IA	GA50K6A1IA	76 mm	50 kΩ	± .25 %	4261 K	±.5 %	-40 – 125 °C
II	GA50K6A1IB	GA50K6A1IB	76 mm	50 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
II	GA50K6A1ID	GA50K6A1ID	76 mm	50 kΩ	± 2 %	4261 K	±.5 %	-40 – 125 °C
II	GA5K3A1IA	GA5K3A1IA	76 mm	5 kΩ	± .25 %	3976 K	±.5 %	-40 – 125 °C
II	GA5K3A1IB	GA5K3A1IB	76 mm	5 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
III	20033218-00	20033218-00	46 mm	10 kΩ	± .5 %	3694 K	±.5 %	-40 – 125 °C
III	20033220-00	20033220-00	46 mm	30 kΩ	± .5 %	3942 K	±.5 %	-40 – 125 °C
III	GA100K6A1W2	20033228-00	46 mm	100 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
III	GA3K3A1W2	20033216-00	46 mm	3 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
III	GA50K6A1W2	20033227-00	46 mm	50 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
III	GA5K3A1W2	20033217-00	46 mm	5 kΩ	± .5 %	3976 K	±.5 %	-40 – 125 °C
IV	GA30K6A1W3	20033229-00	46 mm	30 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
IV	GA50K6A1W3	20033230-00	46 mm	50 kΩ	± .5 %	4261 K	±.5 %	-40 – 125 °C
V	GA1K2A1	GA1K2A1	76 mm	1 kΩ	± .5 %	3348 K	±.5 %	-40 – 100 °C
V	GA1K7A1	GA1K7A1	76 mm	1 kΩ	± .5 %	3499 K	±.5 %	-40 – 100 °C
VI	GA10K3A1AM	GA10K3A1AM	76 mm	10 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
VI	GA10K4A1AM	GA10K4A1AM	76 mm	10 kΩ	± 1 %	3694 K	±.5 %	-40 – 125 °C
VI	GA2.2K3A1AM	11026046-00	76 mm	2.252 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
VII	GA0.1K1A1-25	20033252-00	76 mm	.1 kΩ	± 1 %	3187 K	±.5 %	-40 – 125 °C
VII	GA10K4A1-25	20033259-00	76 mm	10 kΩ	± 1 %	3694 K	±.5 %	-40 – 125 °C
VII	GA1K2A1-25	20033253-00	76 mm	1 kΩ	± 1 %	3348 K	±.5 %	-40 – 100 °C
VII	GA1K7A1-25	20033254-00	76 mm	1 kΩ	± 1 %	3499 K	±.5 %	-40 – 100 °C
VII	GA2K3A1-25	20033256-00	76 mm	2 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
VII	GA30K5A1-25	20033260-00	76 mm	30 kΩ	± 1 %	3942 K	±.5 %	-40 – 125 °C
VII	GA30K6A1-25	20033261-00	76 mm	30 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
VII	GA3K3A1-25	20033257-00	76 mm	3 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C
VII	GA50K6A1-25	20033262-00	76 mm	50 kΩ	± 1 %	4261 K	±.5 %	-40 – 125 °C
VII	GA5K3A1-25	20033258-00	76 mm	5 kΩ	± 1 %	3976 K	±.5 %	-40 – 125 °C

Applications

Temperature sensing, control and compensation
Tight Tolerance Instrumentation
Assembly into probes for a wide variety of applications
General Instrumentation and medical applications
Temperature sensing, control and compensation

Downloads

Standard Epoxy NTC Thermistors datasheet (pdf)
