The TMC2210-EVAL allows evaluation of the TMC2210 in combination with the TRINAMIC evaluation board system, or as a stand-alone-board.
To work together with the TMCL-IDE PC-software the MCU board "Landungsbruecke" is necessary. The software can be downloaded free of charge from the ADI Trinamic website.
TMC2210-EVAL uses the standard schematic and offers several options in order to test different modes of operation.

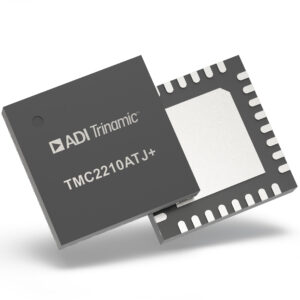

The TMC2210 is a Step/Direction Stand-Alone Driver for Two-Phase Bipolar Stepper Motors up to 2.0A RMS (3.0A peak).
For diagnosis all signals between MCU board and TMC2210 are accessible with probes on the "Eselsbrücke" bridge board.
Additionally required is a Power Supply (max. 36V).
A complete kit together with the MCU board "Landungsbruecke" is also available as TMC2210-EVAL-KIT.
