FT8161N-HALL-FOC+EMF

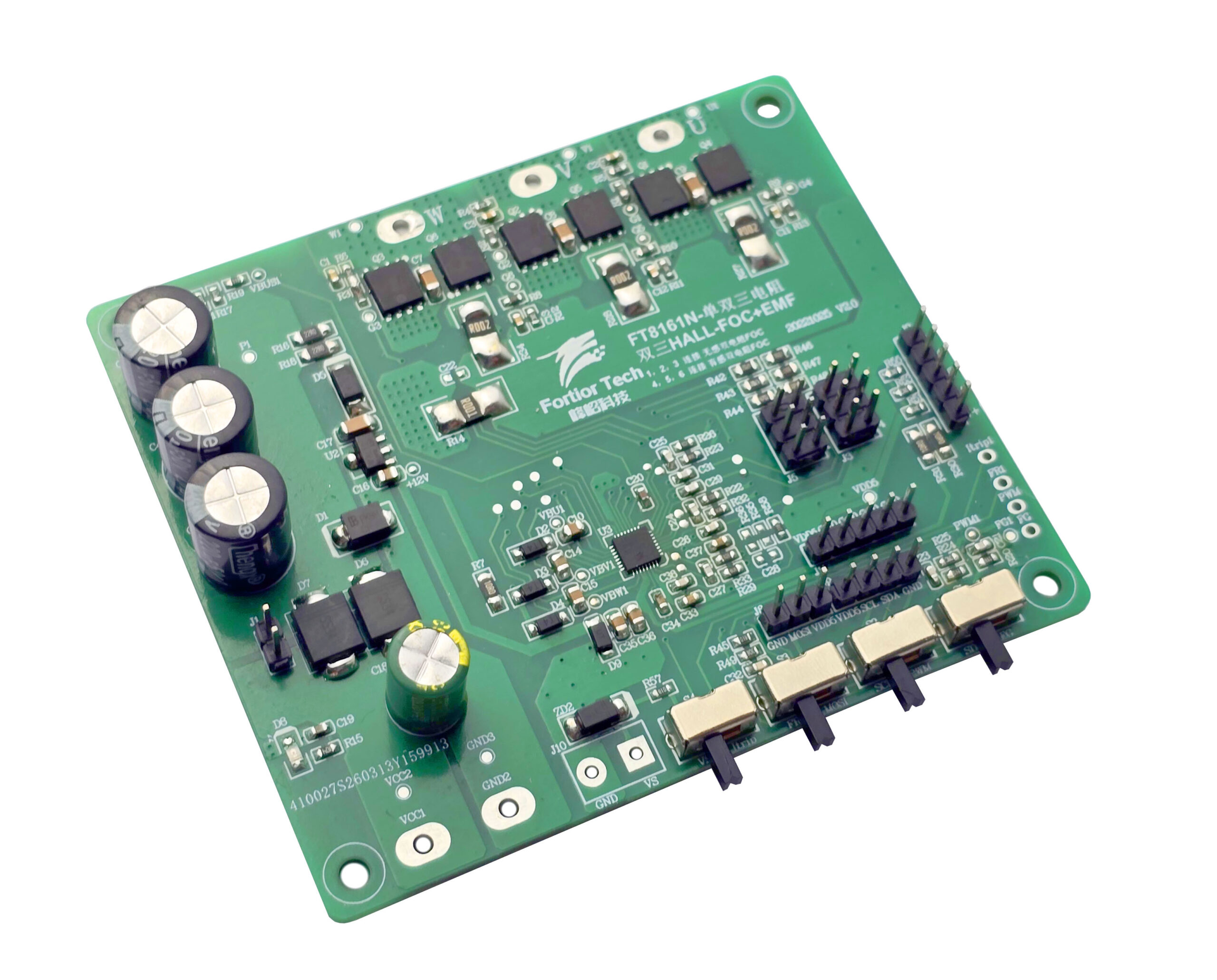

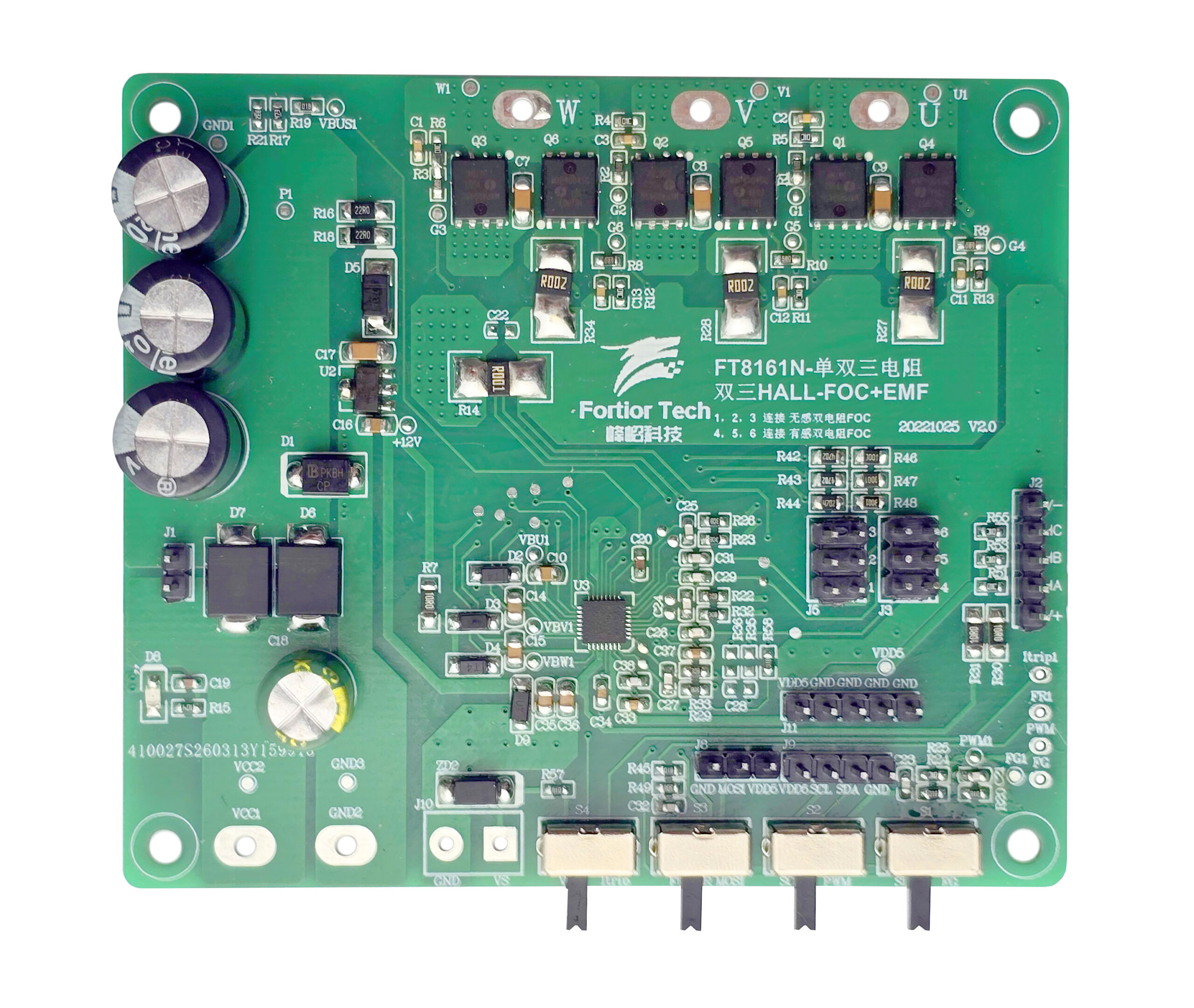

FT8161N Evaluation Board 30V/10A

The Fortior FT8161N-HALL-FOC+EMF is a dedicated evaluation board for the FT8161N.

Voltage: 20…30 V

Max. Current: 10A

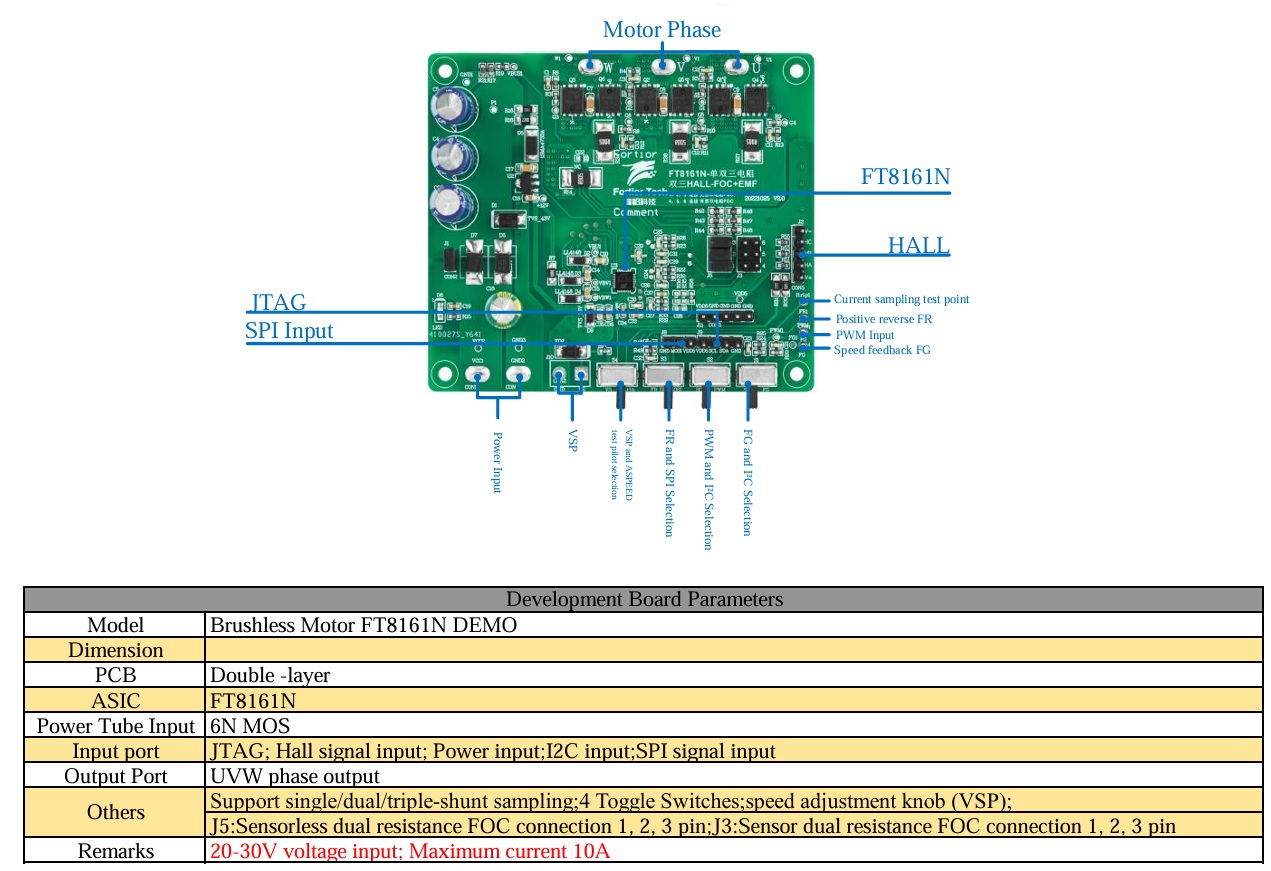

Technical Data

Order code:

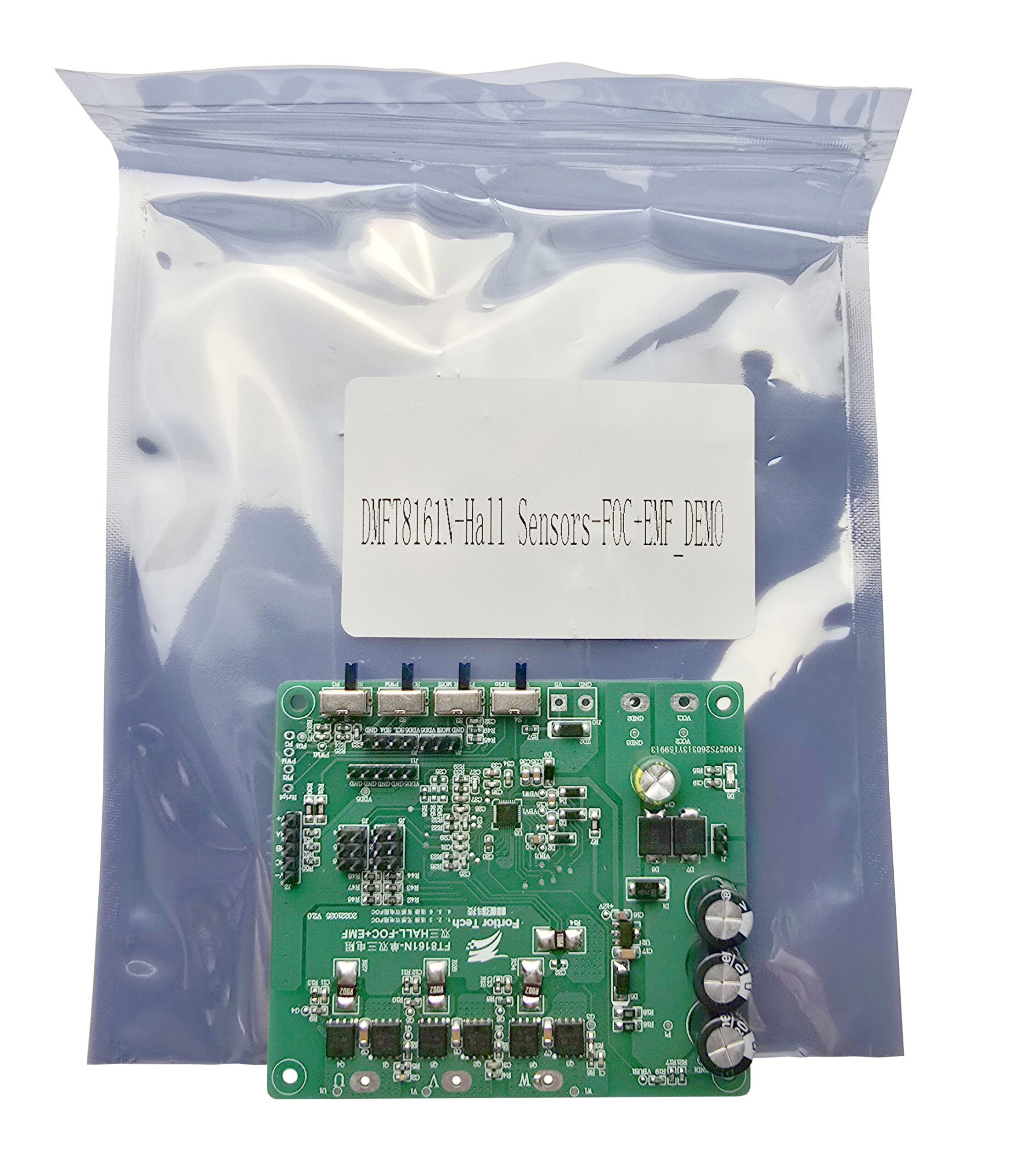

DMFT8161N-Hall Sensors-FOC+EMF_DEMO

Downloads:

FT8161N-HALL-FOC+EMF Schematic (PDF)

USB adapter for Fortior motor controller ASICs without integrated MCU

ASIC Emulator
Read more

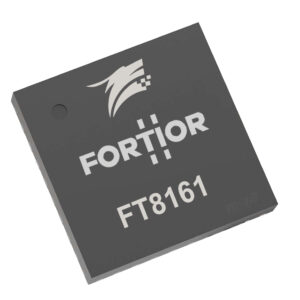

3-ph. Motor Control ASIC (ME), 6N Gate-Driver 140V, sensorless FOC

FT8161
Read more
