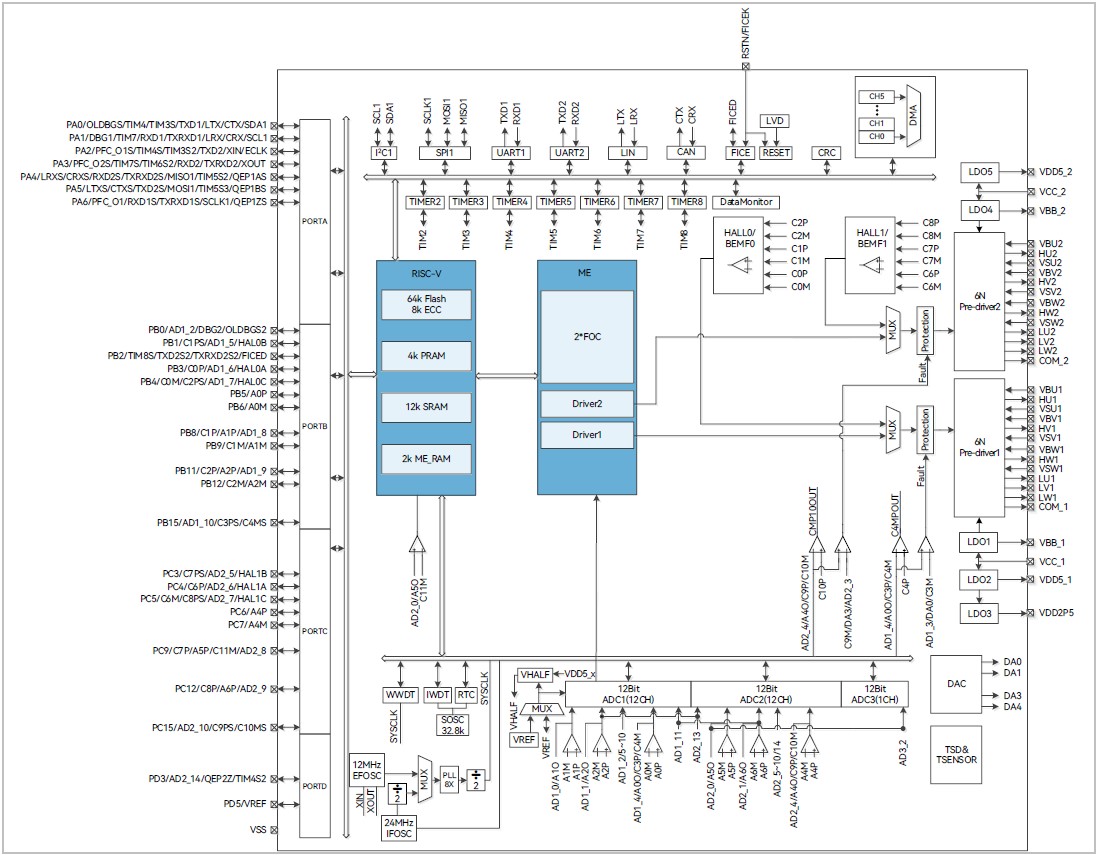

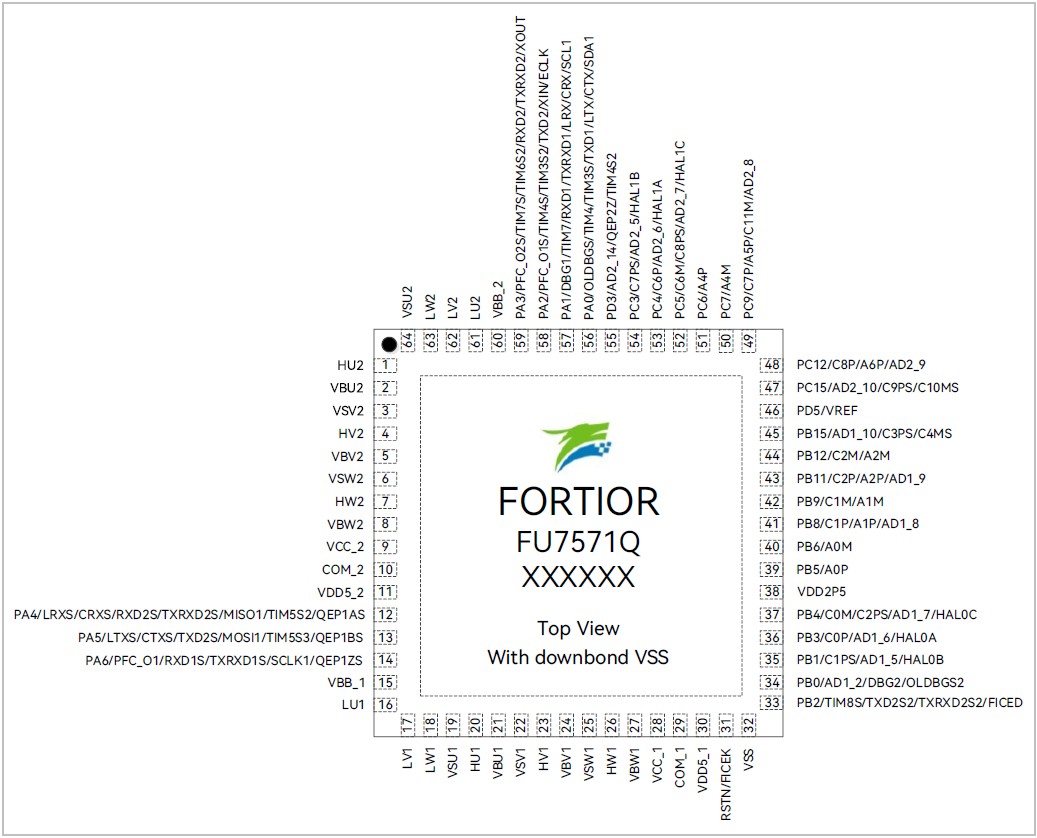

The high-performance motor drive chip incorporates ME core and RISC-V core. ME core integrates FOC module and CORDIC module that allow for automatic calculation of FOC or square-wave control by the hardware for sensored/sensorless BLDC/PMSM motors. RISC-V core is used for parameter configuration and routine processing. The dual cores work in parallel to achieve high-performance motor control. Interleaved two-phase boost PFC. The chip integrates high-speed operational amplifiers, comparators, high-speed ADC, CRC, SPI, I2C, UART, LIN, CANFD, DataMonitor, Timers, built-in LDO, which are suitable for FOC or square-wave based BLDC/PMSM motors.
| P/N: | FU7512 P | FU7512 L | FU7541 Q | FU7561 Q | FU7571 Q |
| Package | LQFP48 8 x 8 mm |
LQFP64 10 x 10 mm |
QFN48 6 x 6 mm |
QFN56 7 x 7 mm |
QFN64-56 9 x 9 mm |
| Motion Engine – ME | x | x | x | x | x |
| Dual Motor | x | x | x | x | x |
| FOC hardware | x | x | x | x | x |
| PFC hardware | x | x | – | – | x |
| MCU core | RISC-V | RISC-V | RISC-V | RISC-V | RISC-V |
| System clock [MHz] | 48 /24 | 48 /24 | 48 /24 | 48 /24 | 48 /24 |
| Flash [kB] | 64 | 64 | 64 | 64 | 64 |
| SRAM [kB] | 12 | 12 | 12 | 12 | 12 |
| PRAM [kB] | 4 | 4 | 4 | 4 | 4 |
| GPIO | 38 | 53 | 29 | 37 | 29 |
| I²C | 1 | 2 | 1 | 1 | 1 |
| UART | 2 | 2 | 2 | 2 | 2 |
| SPI | 1 | 2 | – | 2 | 1 |
| CAN | 1 | 1 | 1 | 1 | 1 |
| LIN | 1 | 1 | 1 | 1 | 1 |
| BiSS | 1 | 1 | – | 1 | – |
| DMA | x | x | x | x | x |
| Timer | 9 | 9 | 9 | 9 | 9 |
| PWM driver output | 2 | 2 | – | 1 | – |
| PreDriver | – | – | 2* 3P3N | 6N | 2* 6N |
| Driver Voltage, max. [V] | – | – | 28 | 120 | 120 |
| Drive Current, max. + [A] | – | – | 0,15 | 0,6 | 0,6 |
| Drive Current, max. – [A] | – | – | 0,09 | 0,6 | 0,6 |
| Sensor/Sensorless Square Wave | x | x | x | x | x |
| Sensor SVPWM | x | x | x | x | x |
| Sensor FOC | x | x | x | x | x |
| Sensorless FOC | x | x | x | x | x |
| ADC | 3 | 3 | 3 | 3 | 3 |
| ADC resolution [bit] | 12 | 12 | 12 | 12 | 12 |
| ADC 1 channels | 13 | 13 | 12 | 12 | 12 |
| ADC 2 channels | 13 | 14 | 13 | 12 | 12 |
| ADC 3 channels | 3 | 3 | 2 | 1 | 1 |
| DAC | 5 | 5 | 4 | 4 | 1 |
| DAC resolution [bit] | 9 / 8 / 6 | 9 / 8 / 6 | 9 / 6 | 9 / 6 | 9 / 6 |
| OP | 7 | 7 | 6 | 6 | 6 |
| Comparator | 8 | 8 | 7 | 7 | 7 |
| Temp. range | -40…85°C | -40…85°C | -40…85°C | -40…85°C | -40…85°C |
