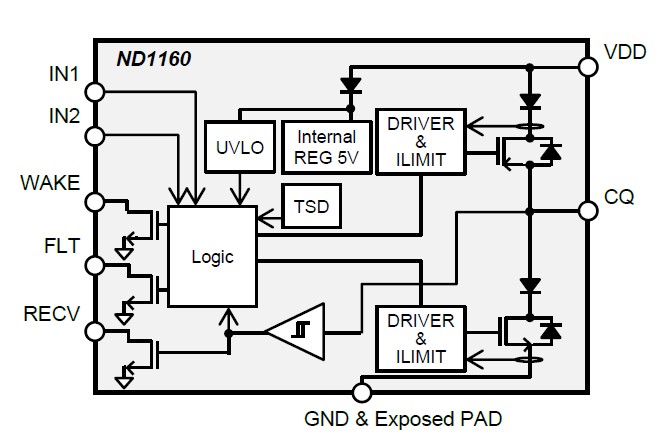

ND1160 is an IO-Link device transceiver using Bi-CMOS process. The current capacity is 200 mA and the operating voltage range is guaranteed from 8.5 V to 36 V. High-side, low-side, and push-pull operation can be set depending on the logic of the input terminal. Compliant with IO-Link standard and can detect the status of connected devices. In addition, the ND1160 is integrated the over current protection, the thermal shutdown and reverse current protection. It supports COM1, COM2 and COM3 modes.

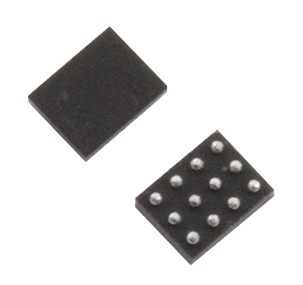

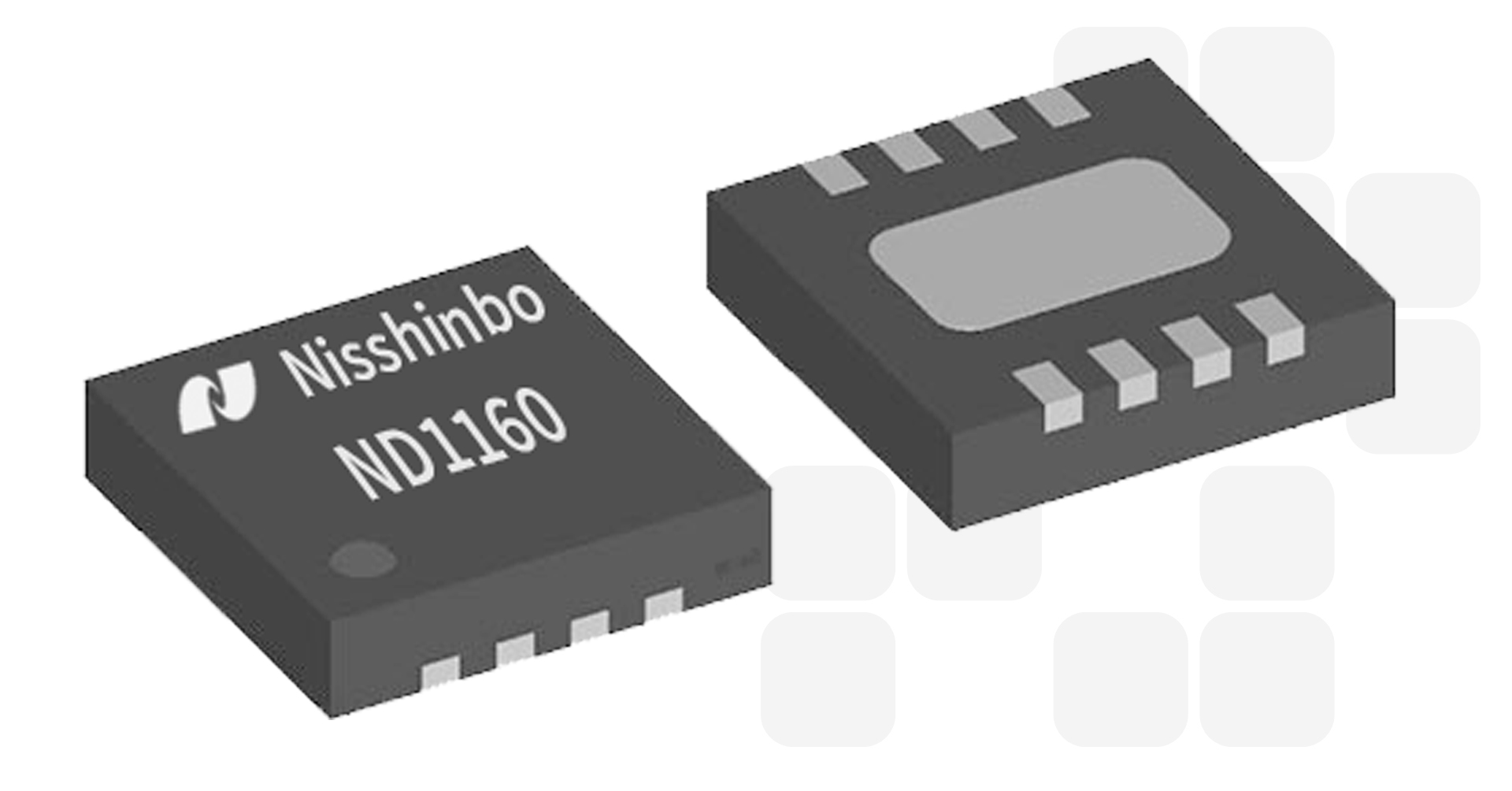

Thanks to its small housing, the ND1160 also fits into designs with very limited space.
