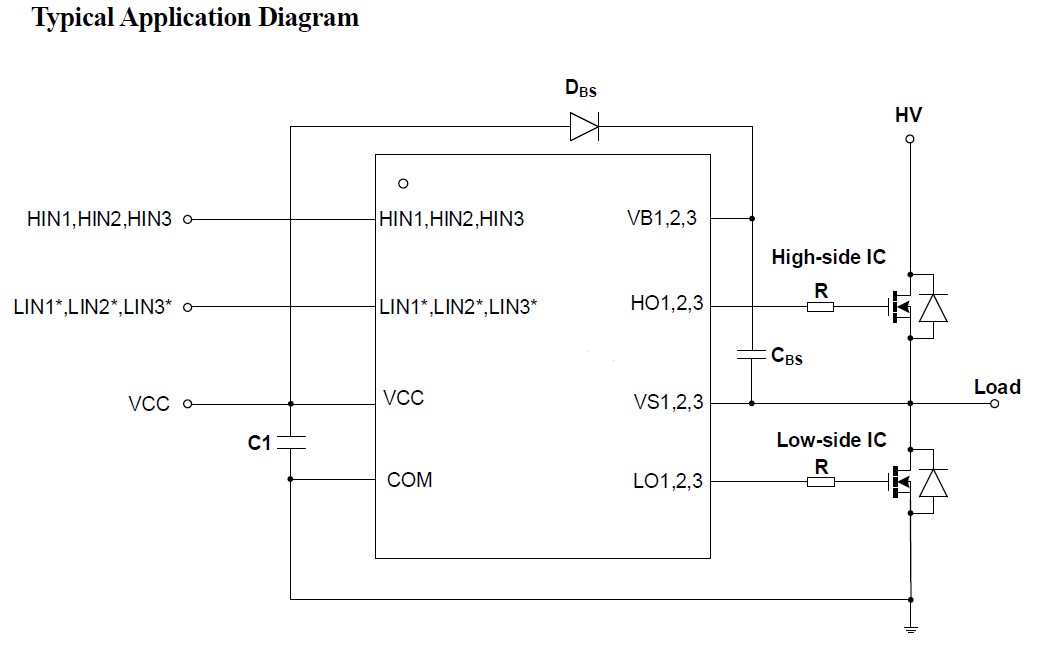

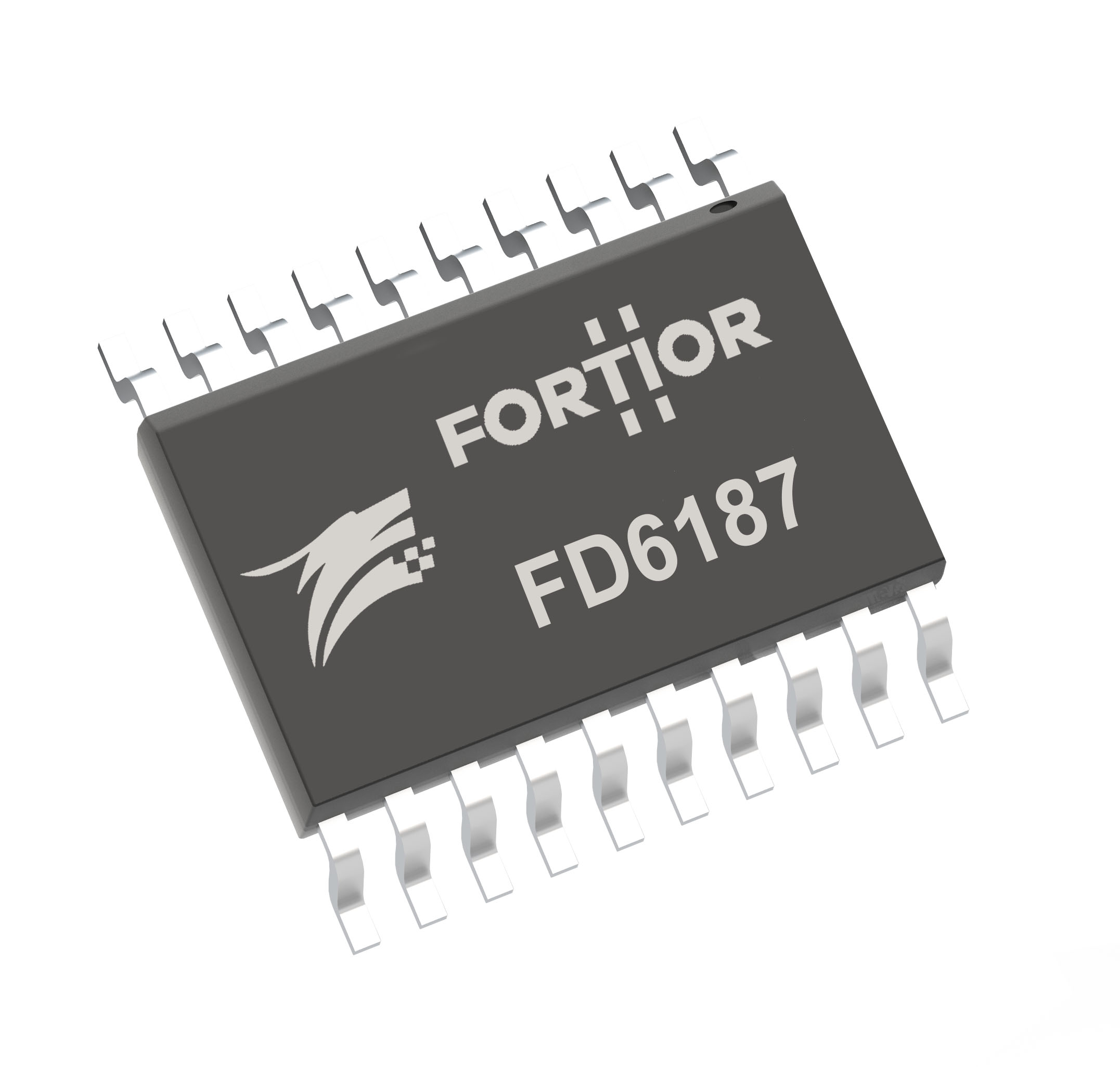

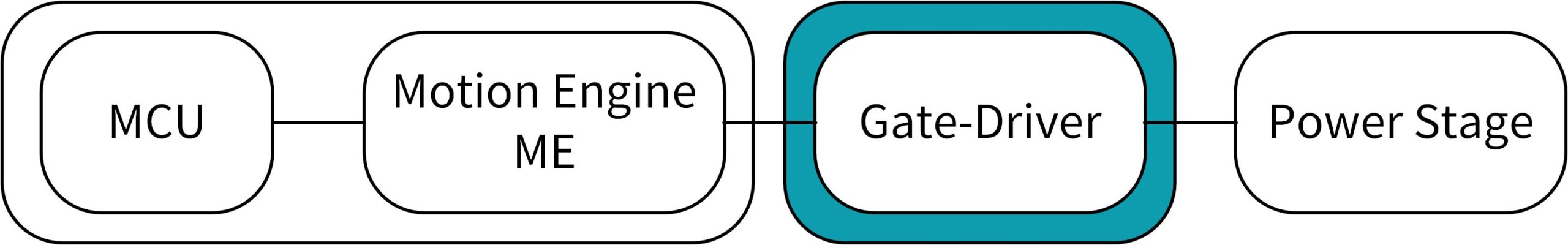

The FD6187 from Fortior is an integrated three-phase gate driver designed to control external MOSFET power stages. Three independent half-bridge drivers provide the high-side and low-side gate signals required for a three-phase inverter. With an operating voltage of up to 180 V and a gate drive current of ±0,8 A, the device is particularly suitable for compact BLDC and PMSM motor drives with external power MOSFETs.
The gate driver operates from a supply voltage of 5 V to 22 V. Its 3,3 V and 5 V compatible logic inputs allow direct interfacing with a wide range of motor-control MCUs and controllers.

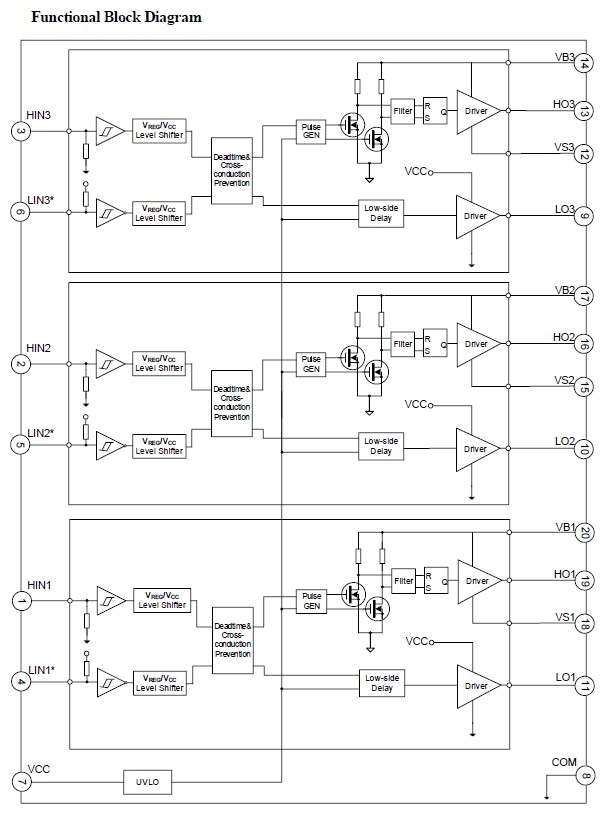

For reliable operation, the FD6187 integrates undervoltage lockout (UVLO), cross-conduction prevention and deadtime insertion. An integrated input filter suppresses short disturbance pulses at the control inputs, improving the noise immunity of the power stage.

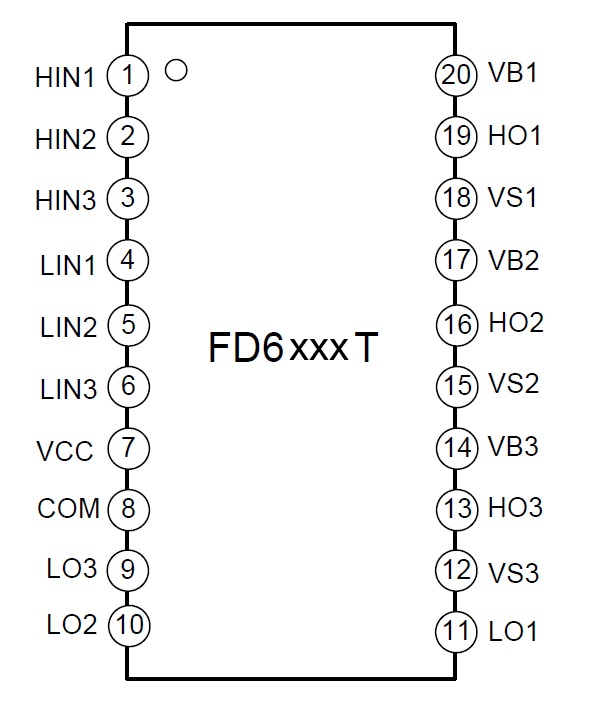

| P/N: | FD6187 T | FD6189 T |
|---|---|---|

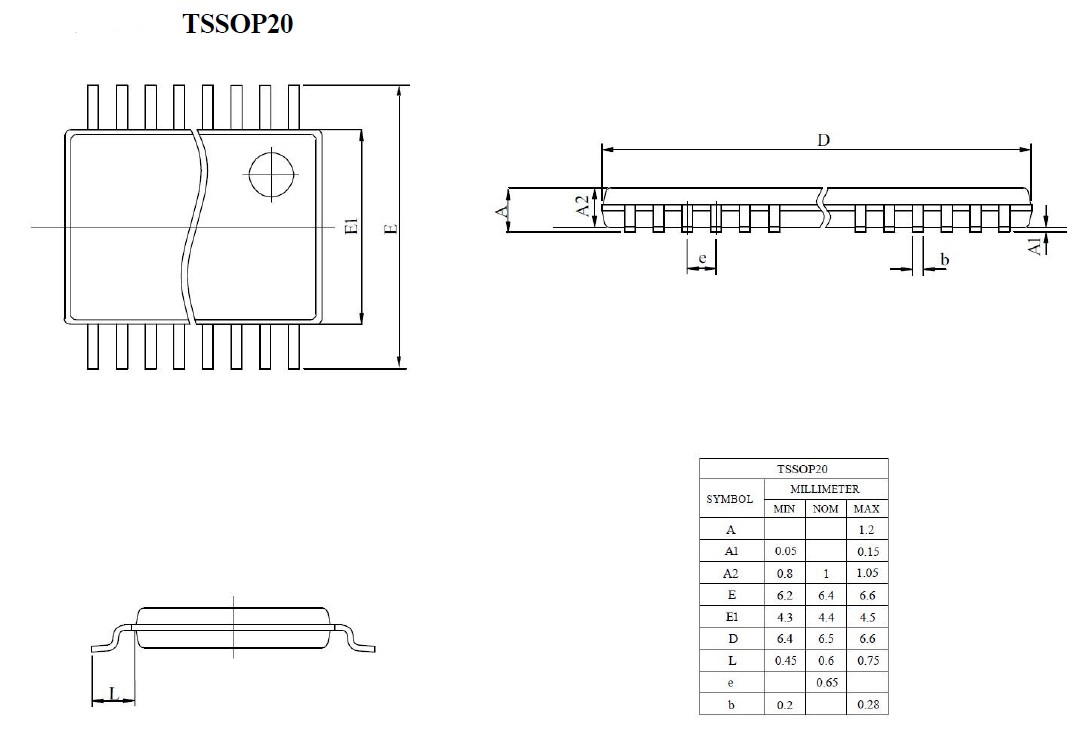

| Package | TSSOP20 | TSSOP20 |
| Topology | 3-ph. / 3 Half-Bridges | 3-ph. / 3 Half-Bridges |
| Max. Voltage | 180 V | 140 V |
| Gate Drive Current | +0,8 / -0,8 A | +0,8 / -0,8 A |
| Supply Voltage | 5…22 V | 5…22 V |
| Logic Input | 3,3 / 5 V | 3,3 / 5 V |
| UVLO | VCC | VCC |
| Cross-Conduction Prevention | Yes | Yes |
| Deadtime | 100 ns | 100 ns |
| Input Filter | Yes | Yes |
