LRMO

Linear Piezo Motor 0,2 N / 9 mm

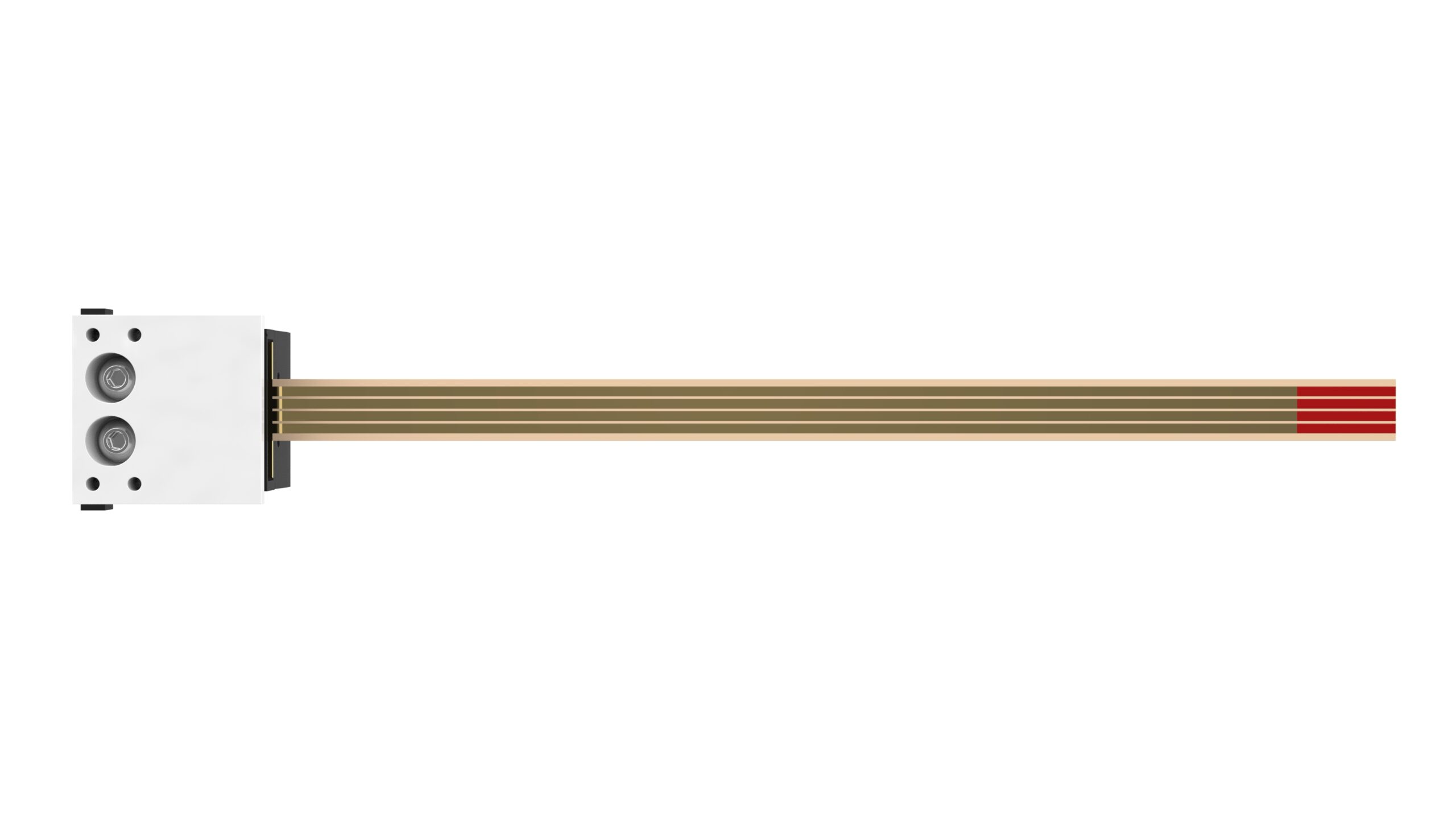

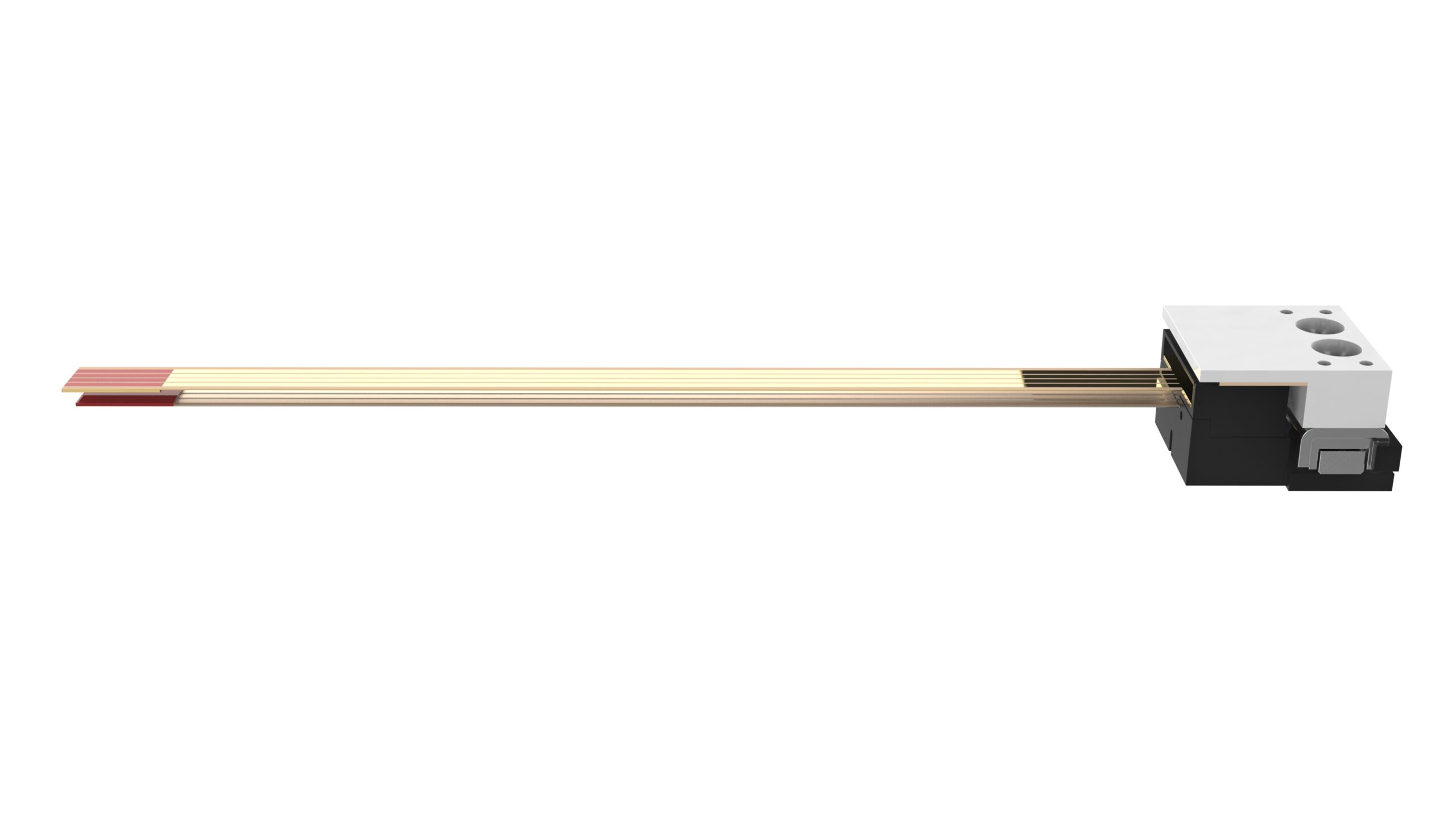

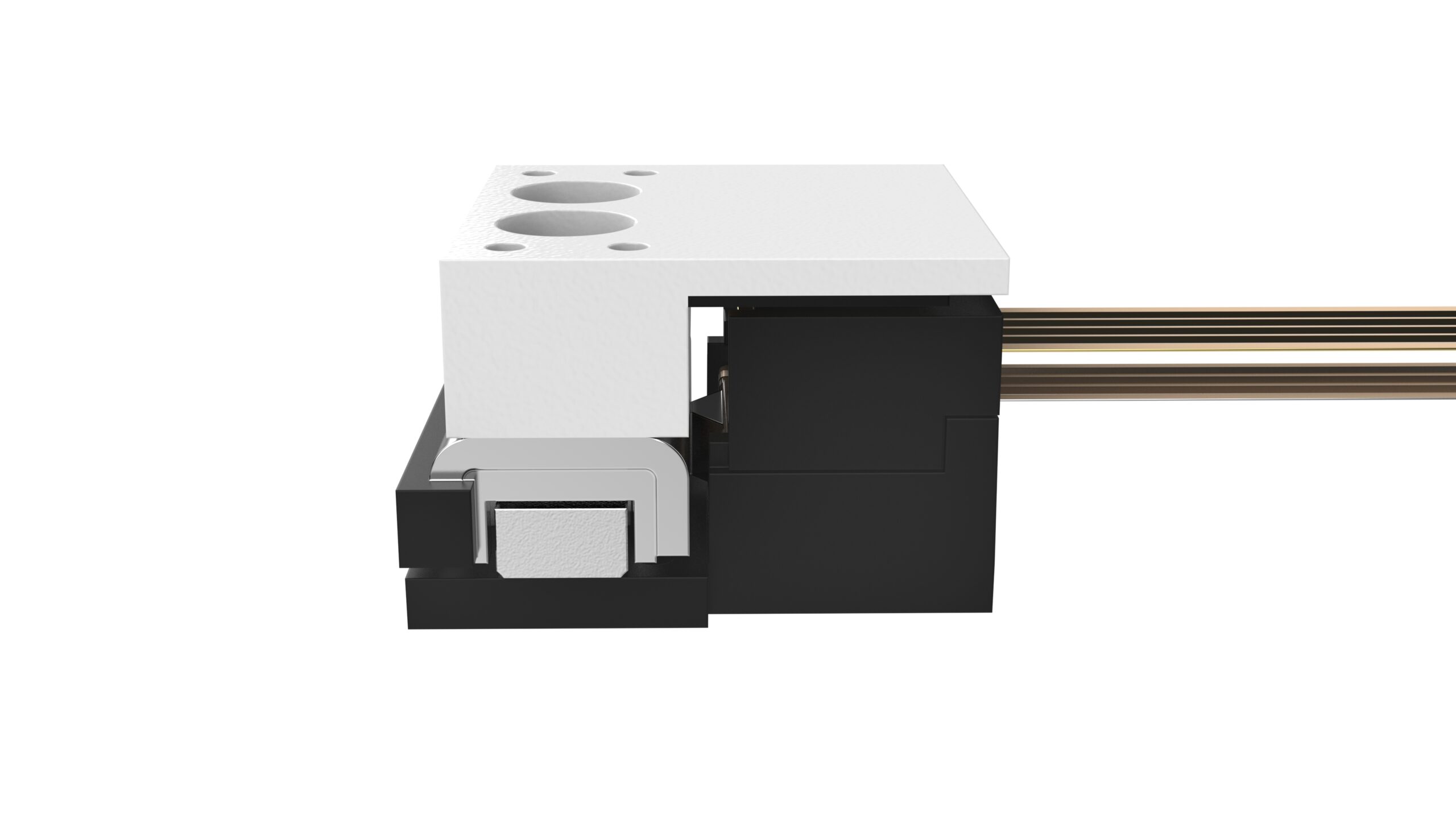

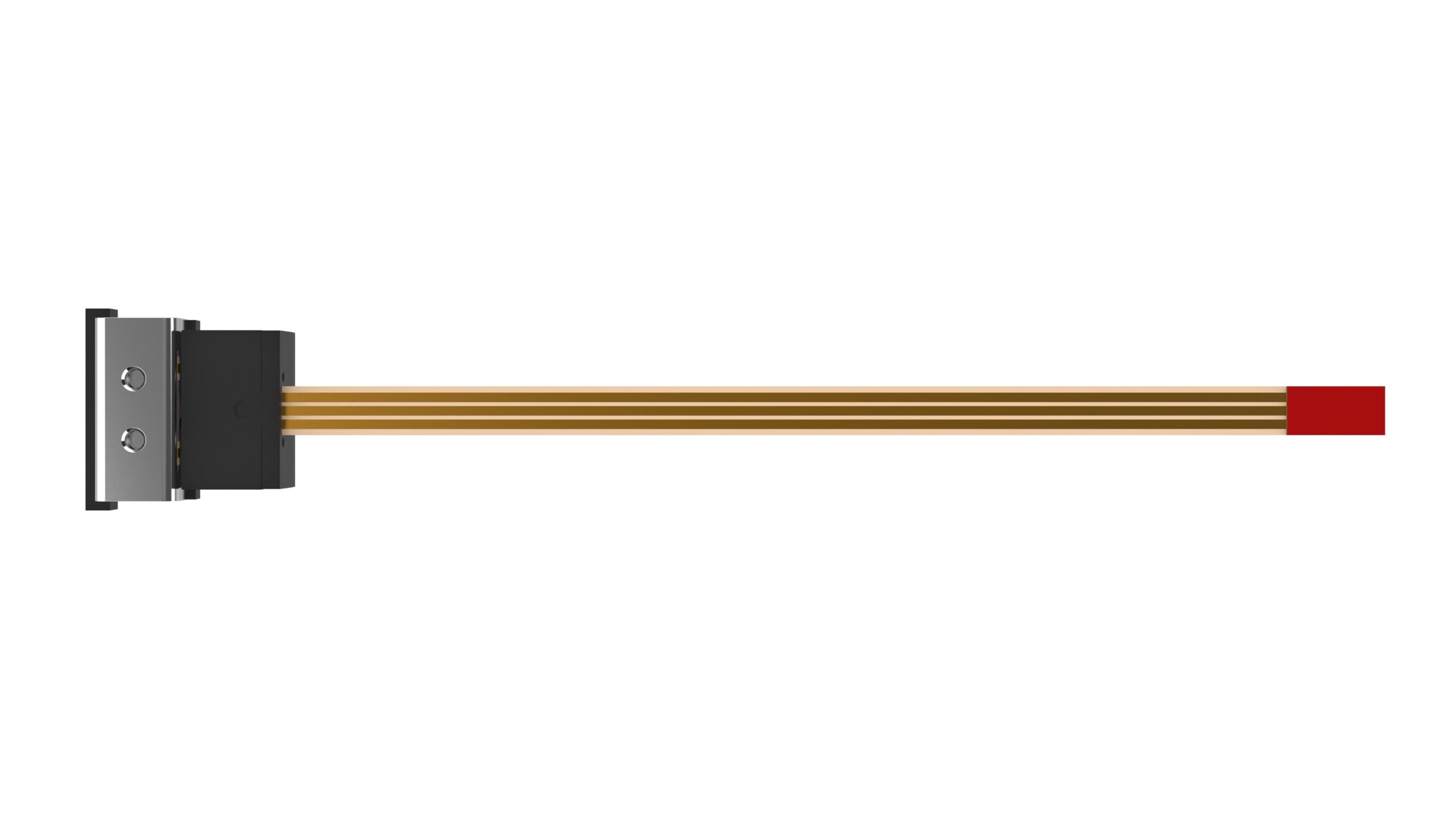

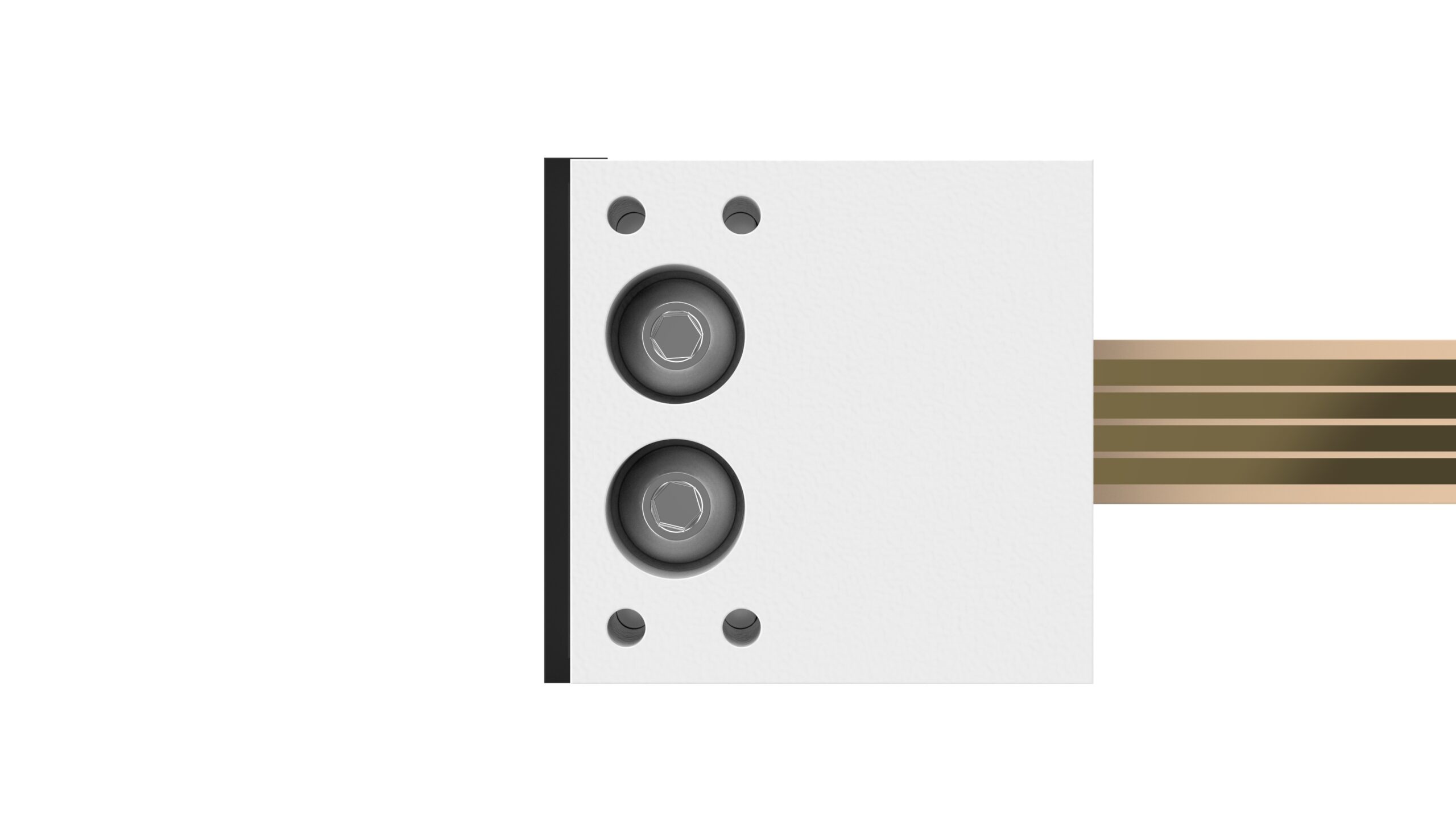

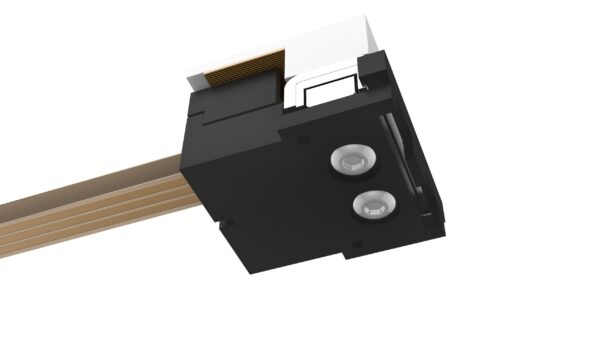

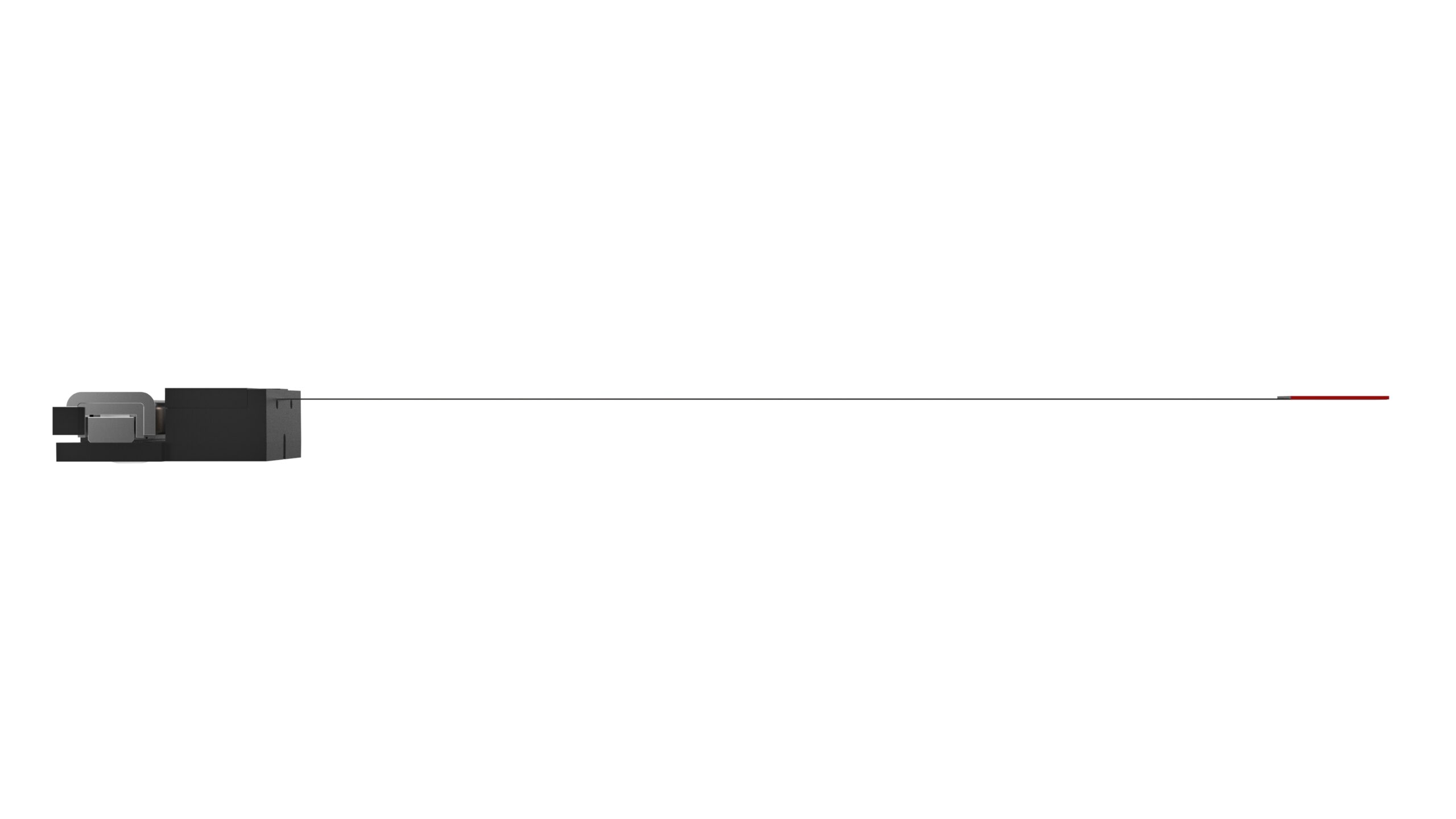

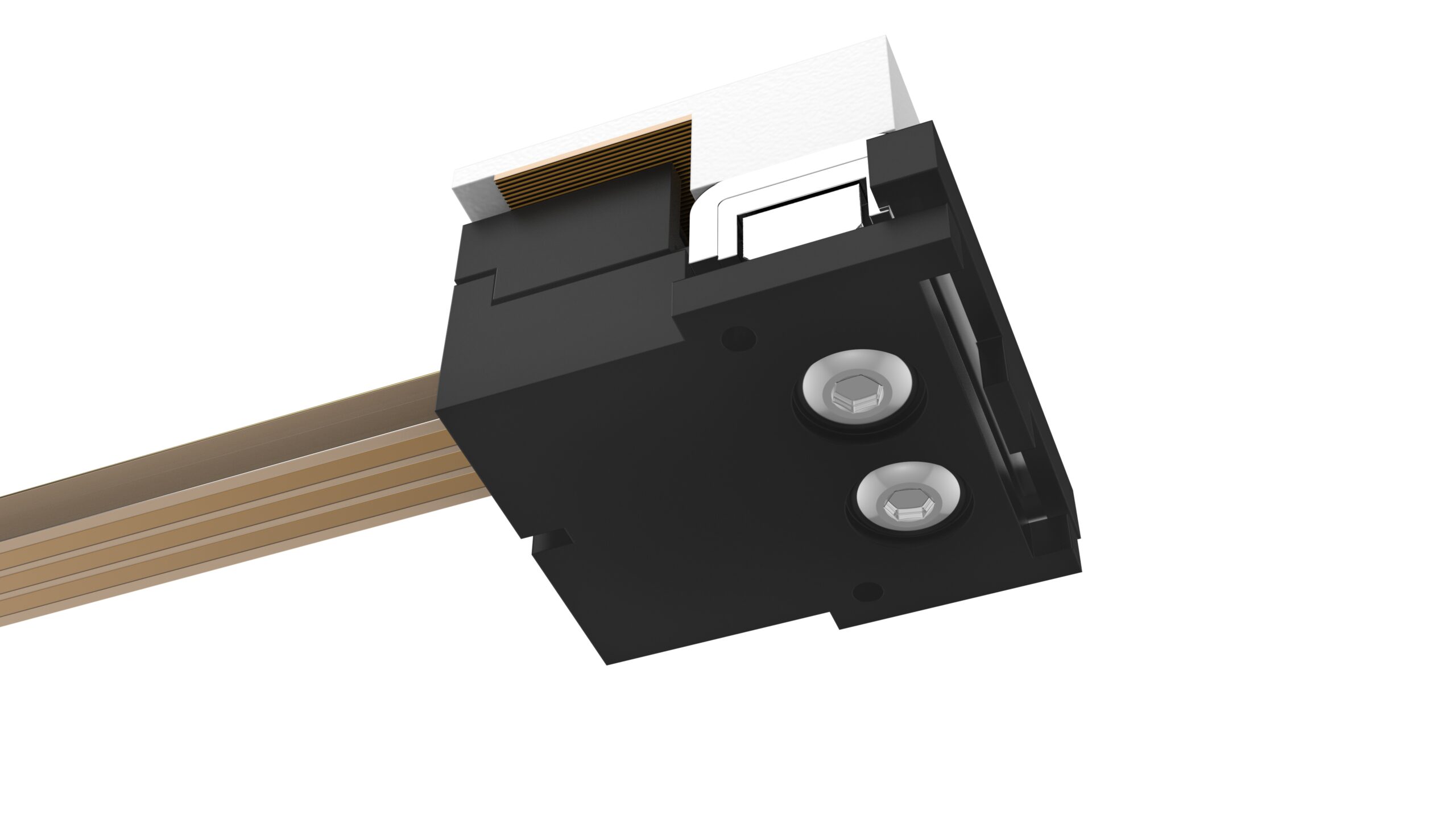

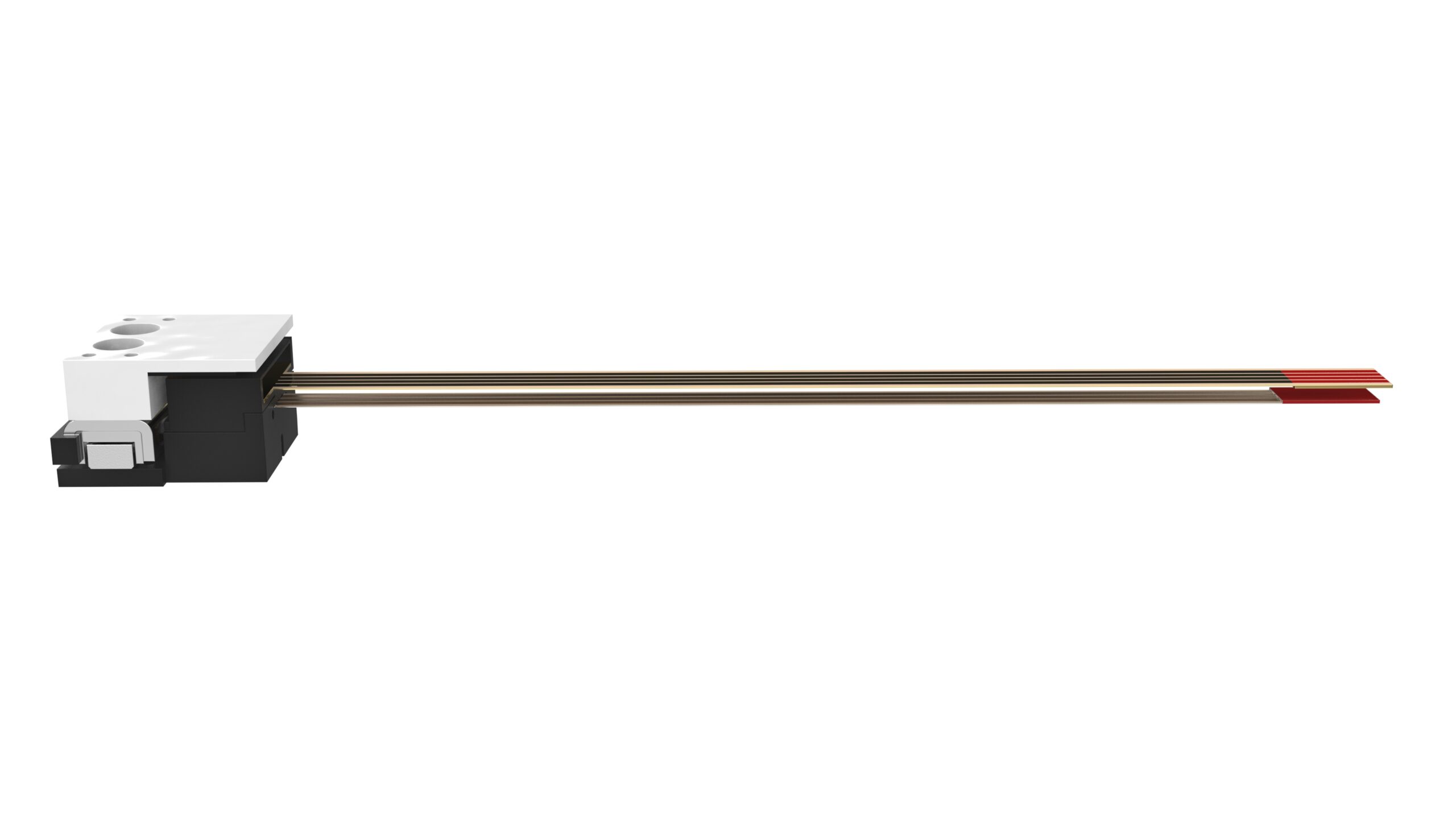

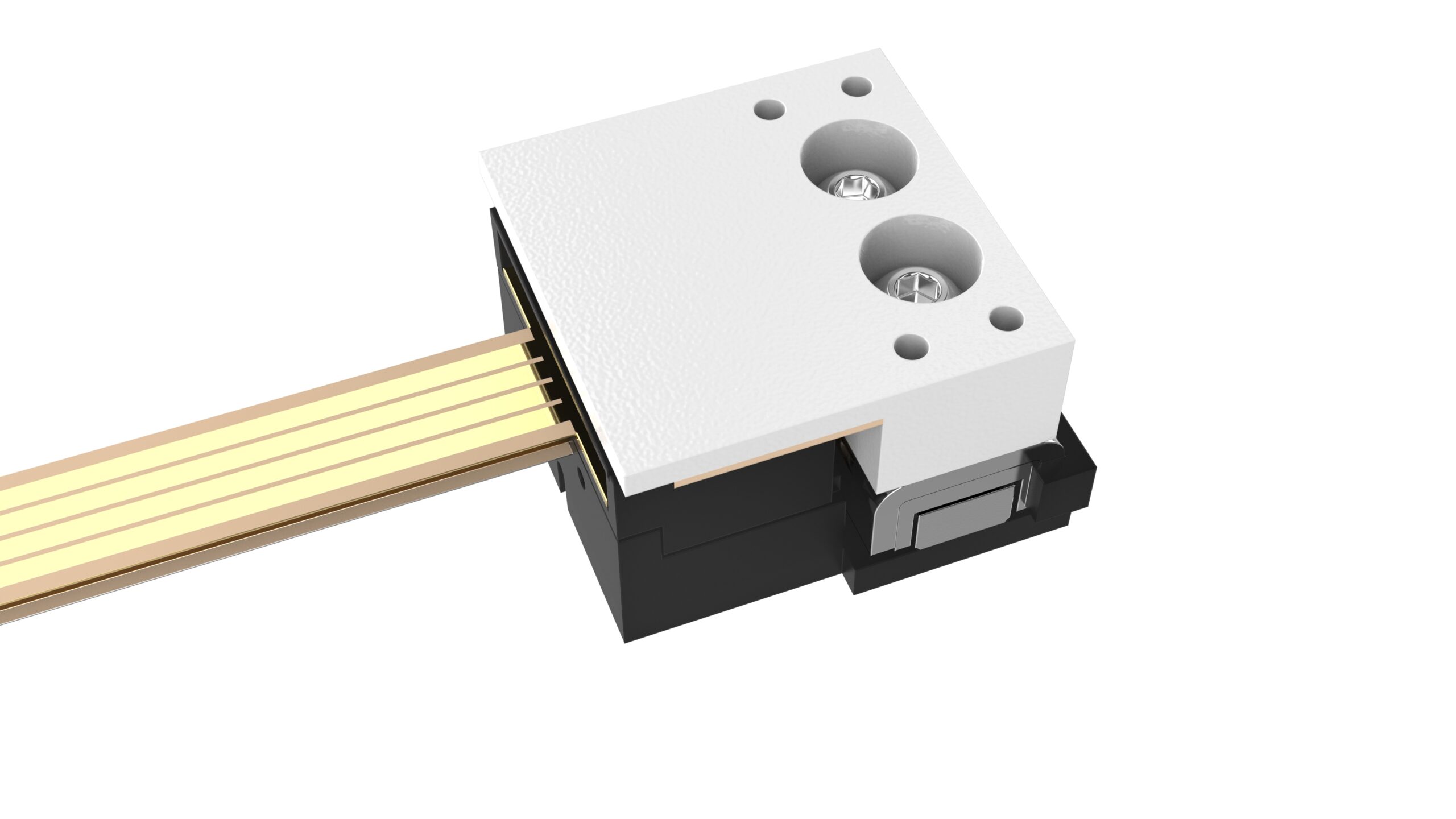

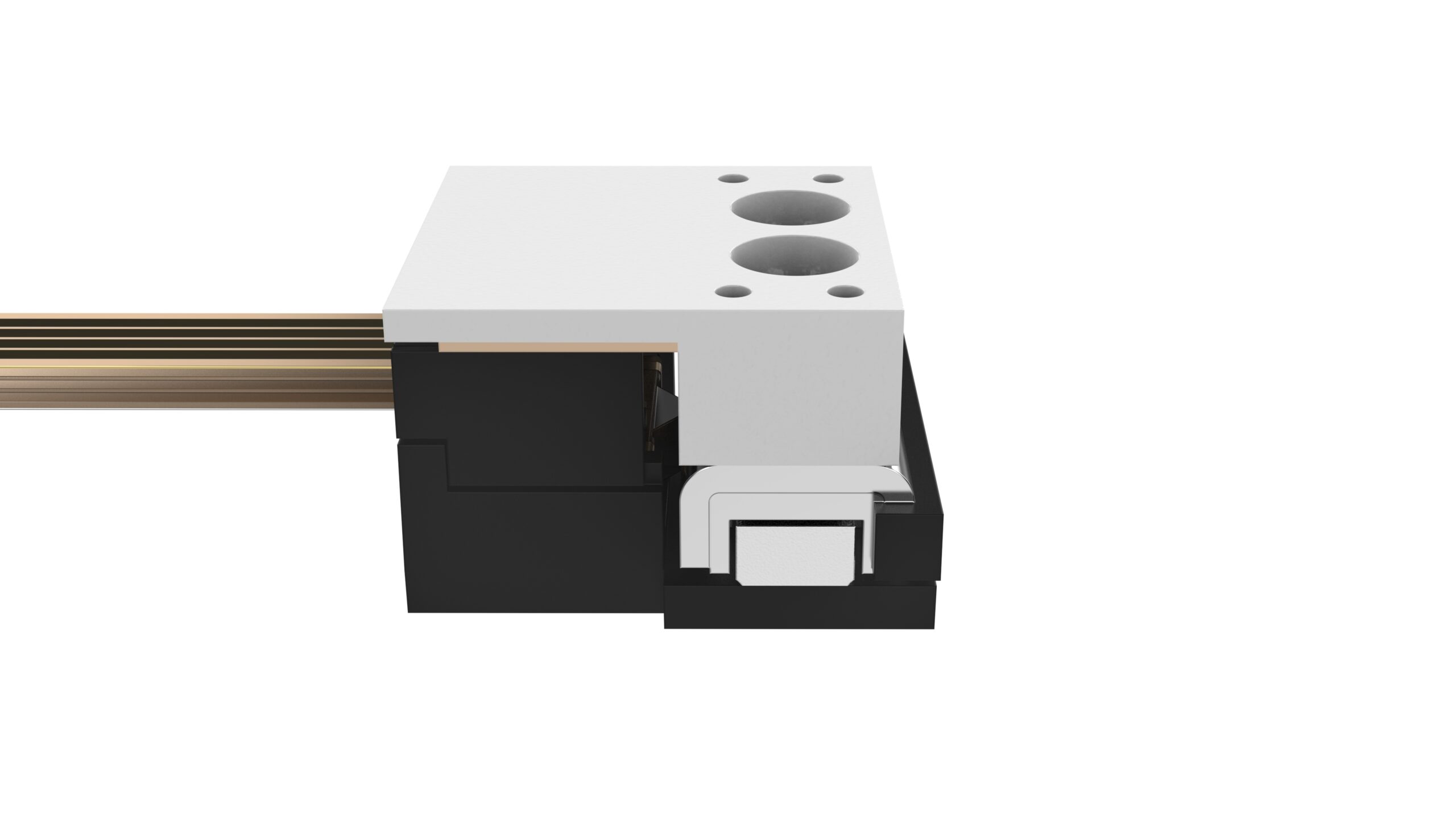

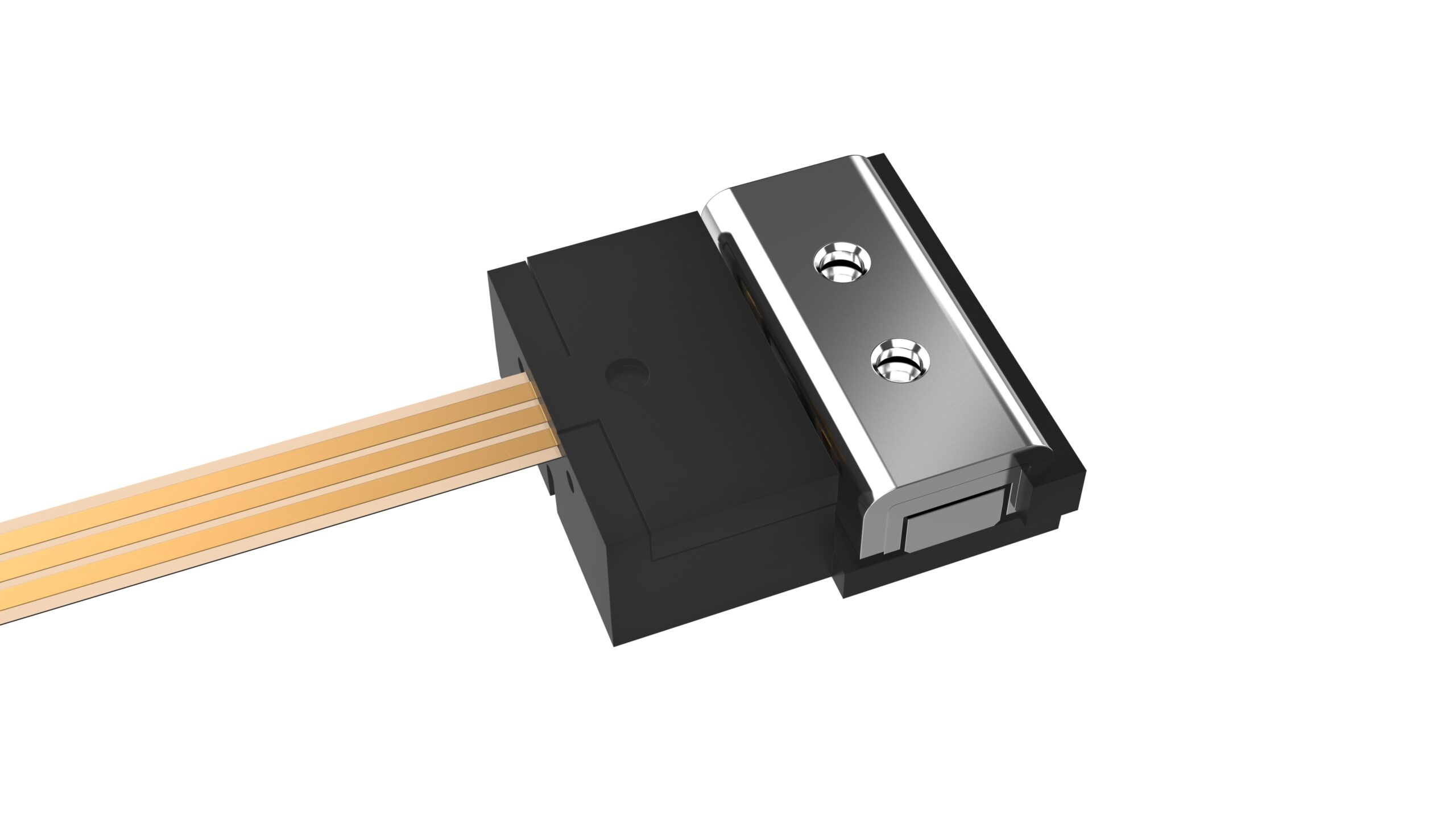

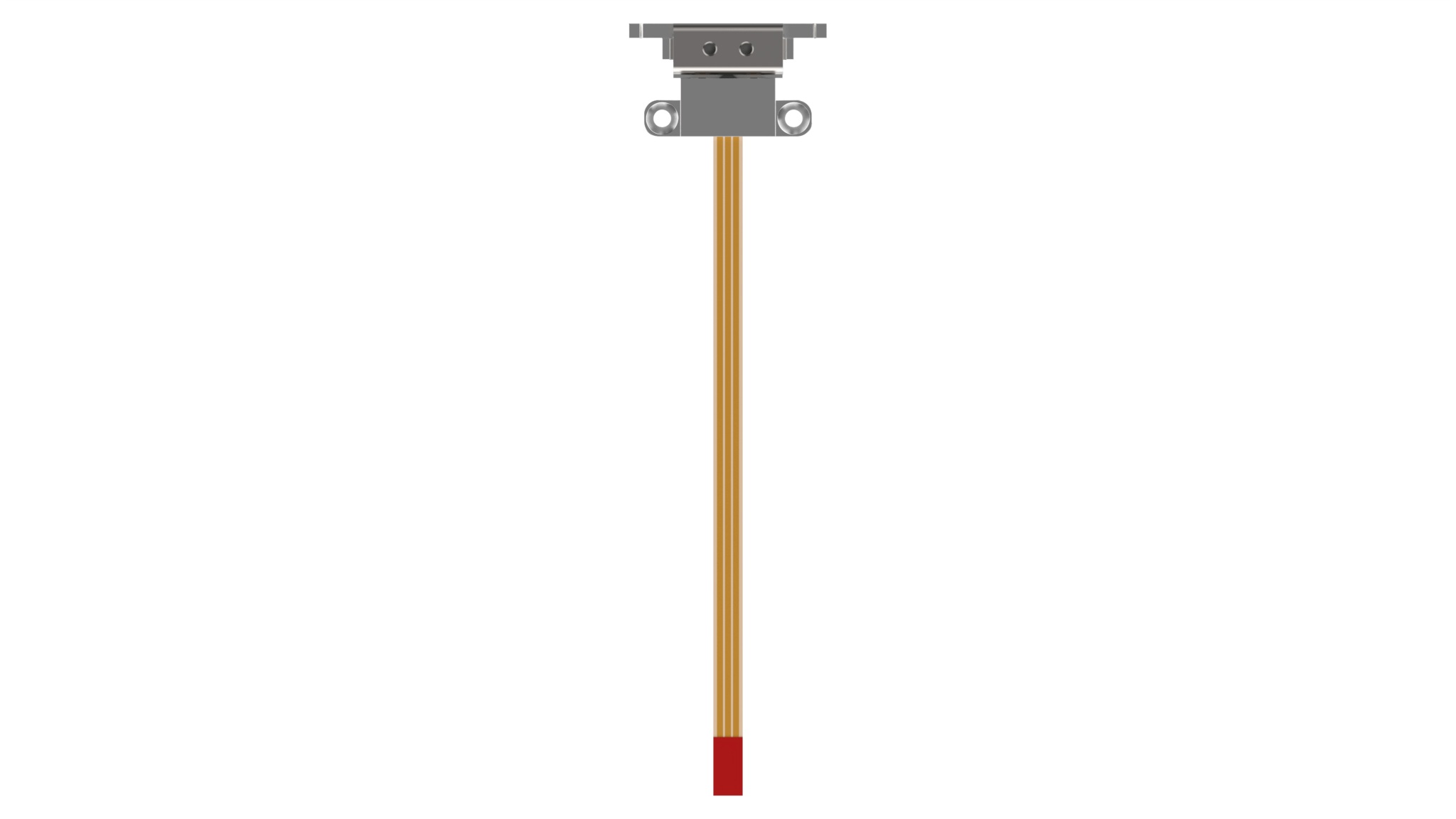

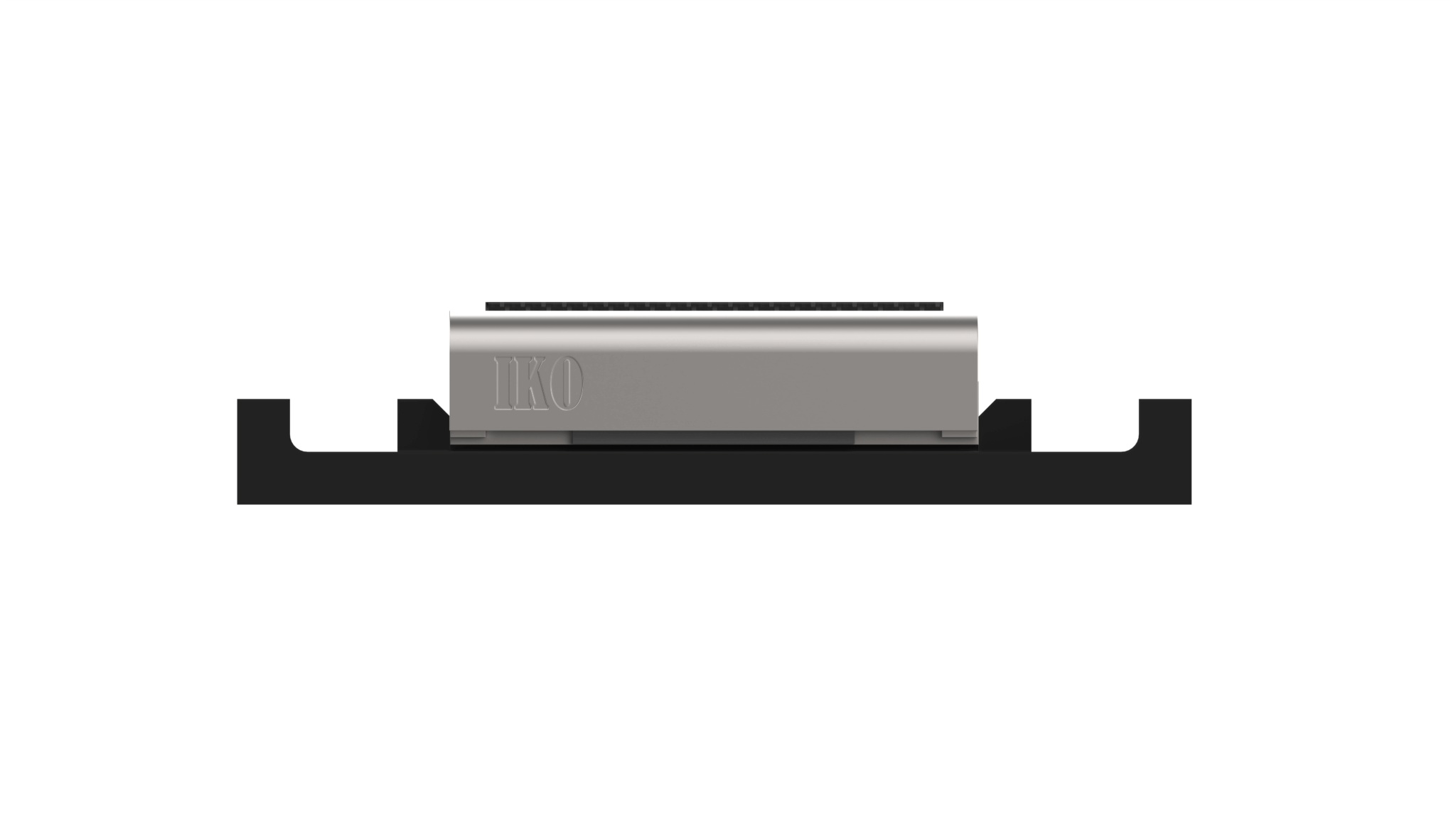

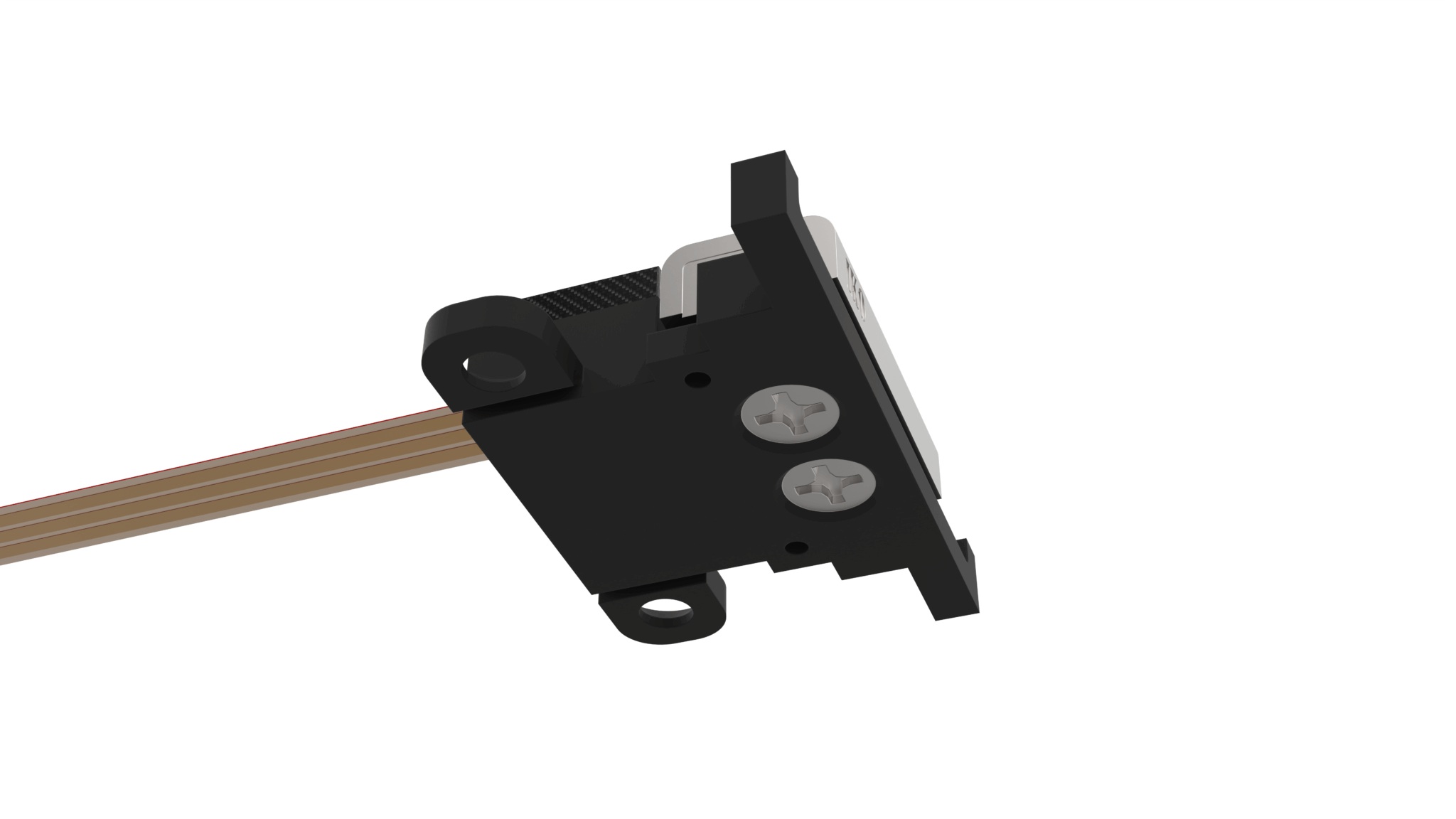

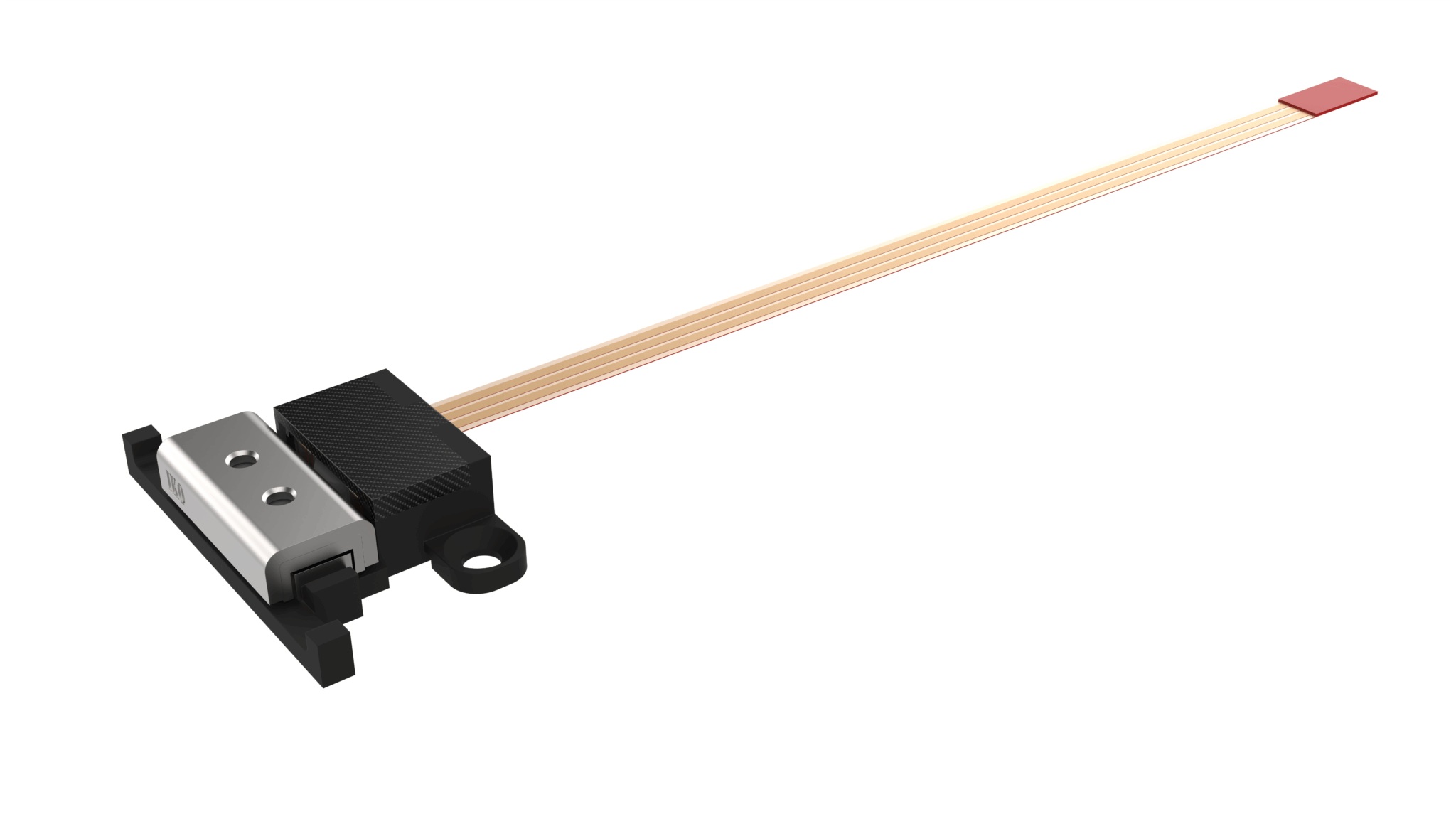

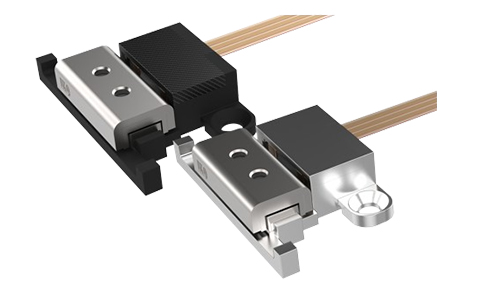

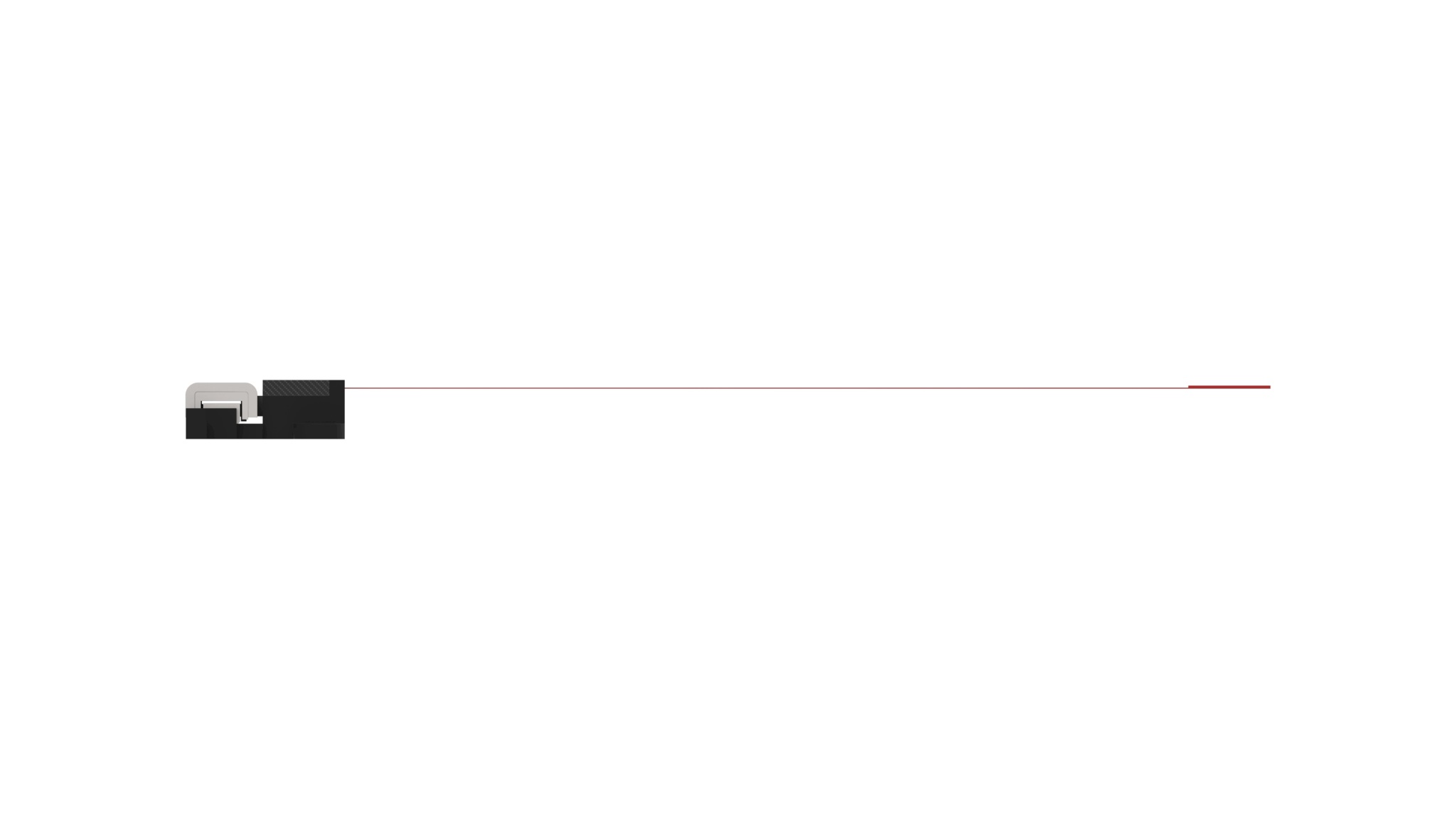

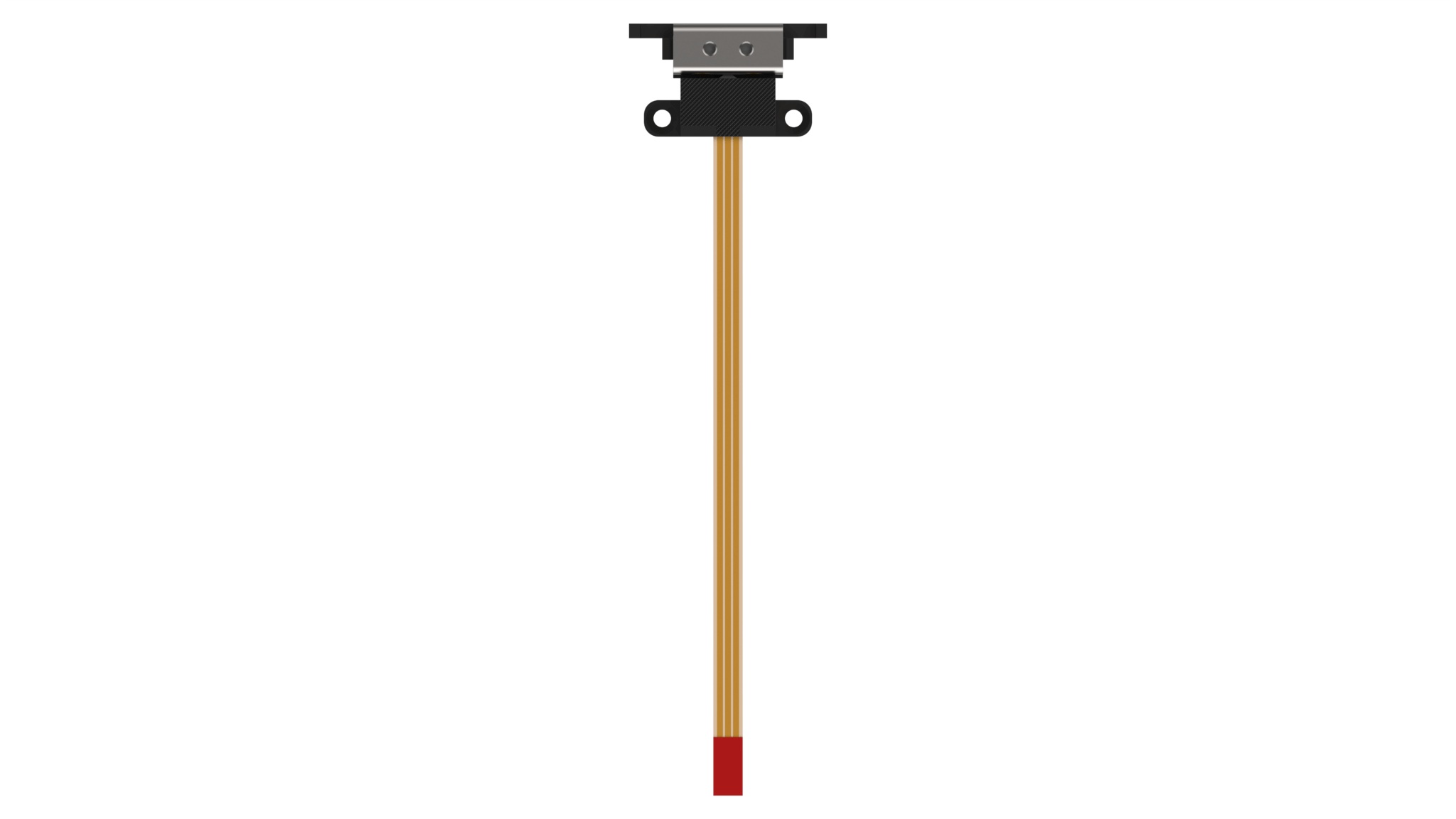

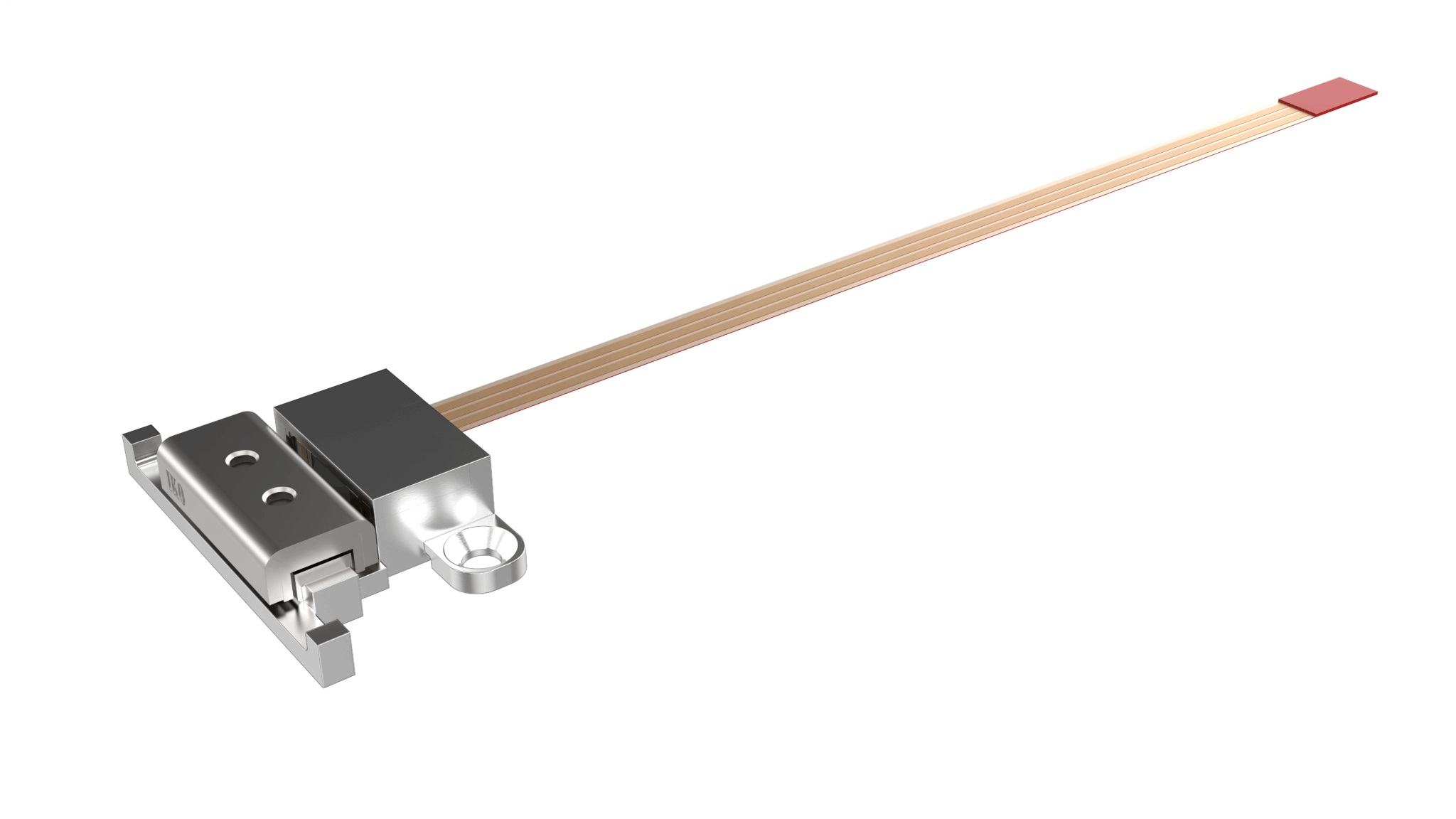

LRMO (plastic) and LRMO-M (metal) series piezo linear motor without Encoder

Key Features

Push/Pull Force: > 0,2 N
Resolution: > 25.000 steps per mm
Max Speed: >0,2 m/s
Fast Response Time: < 30 µs
Low Voltage: 5,0 V DC
Low Power: 0,15 W to 1,5 W
Energy efficient: Zero power consumption in hold

Piezo Motor Company’s new range of miniature piezomotors sets new benchmarks for compact, high-performance rotary and linear piezoelectric actuators/motors. We’ve combined lightweight design with superior precision and functionality.

These piezomotors are exceptionally energy-efficient, requiring no power in the hold position while still maintaining full torque and force. This efficiency makes them ideal for demanding OEM applications where performance and cost-effectiveness are paramount.

Designed to operate at low voltage (5,0 VDC) and small currents (e.g., 30 mA), the new PMC piezomotors are available with optional factory-installed encoders and boast several distinctive features:

Constructed from modern, reinforced engineered thermoplastics for reliability and affordability.
Unmatched precision and resolution.
Ultra-fast response times and exceptional start-stop capabilities.
High torque relative to size, optimized for direct-drive applications.
Support for stepping and continuous modes of operation.
A speed dynamic range spanning six orders of magnitude.
Silent operation in continuous mode and a low voltage design to minimize electrical arcing.

Technical Data

Part No.	LRMO
Order code	LRMO-011-0270
Power Supply	5,0 V DC
Push/Pull Force	≥ 0,2 N
Self-Braking Force	≥ 0,25 N
Actuator Response Time	» 30 µs
Travel Range	9,0 mm
Max Speed (continuous mode)	» 150 mm/s
Minimum Linear Step	< 0,04 µm (<40 nm)
Linear Backlash at Change of Direction	< 0,1 µm
Elastic Stiffness	» 200 mN/µm
Linear Hysteresis	<2,0 µm
Pitch	<1 mrad
Maximum Moment Mx0.07 Nm	0,07 Nm
Roll	< 0,5 mrad
Maximum Moment My	0,12 Nm
Yaw	<1 mrad
Maximum Moment Mz	0,9 Nm
Vertical Runout	3,0 µm
Horizontal Runout	6,0 µm
Frequency Response	4 kHz
Operating Temperature	-20 °C to 80 °C
Maximum Load (at listed specification)	20 g
Maximum Tolerable Load	4,2 kgf
Max Current (continuous mode)	300 mA
Max. Current at the velocity 10mm/s (PWM mode)	30-40 mA
Max Current over velocity range	30 mA to 300 mA
Actuator Weight	3,7 g

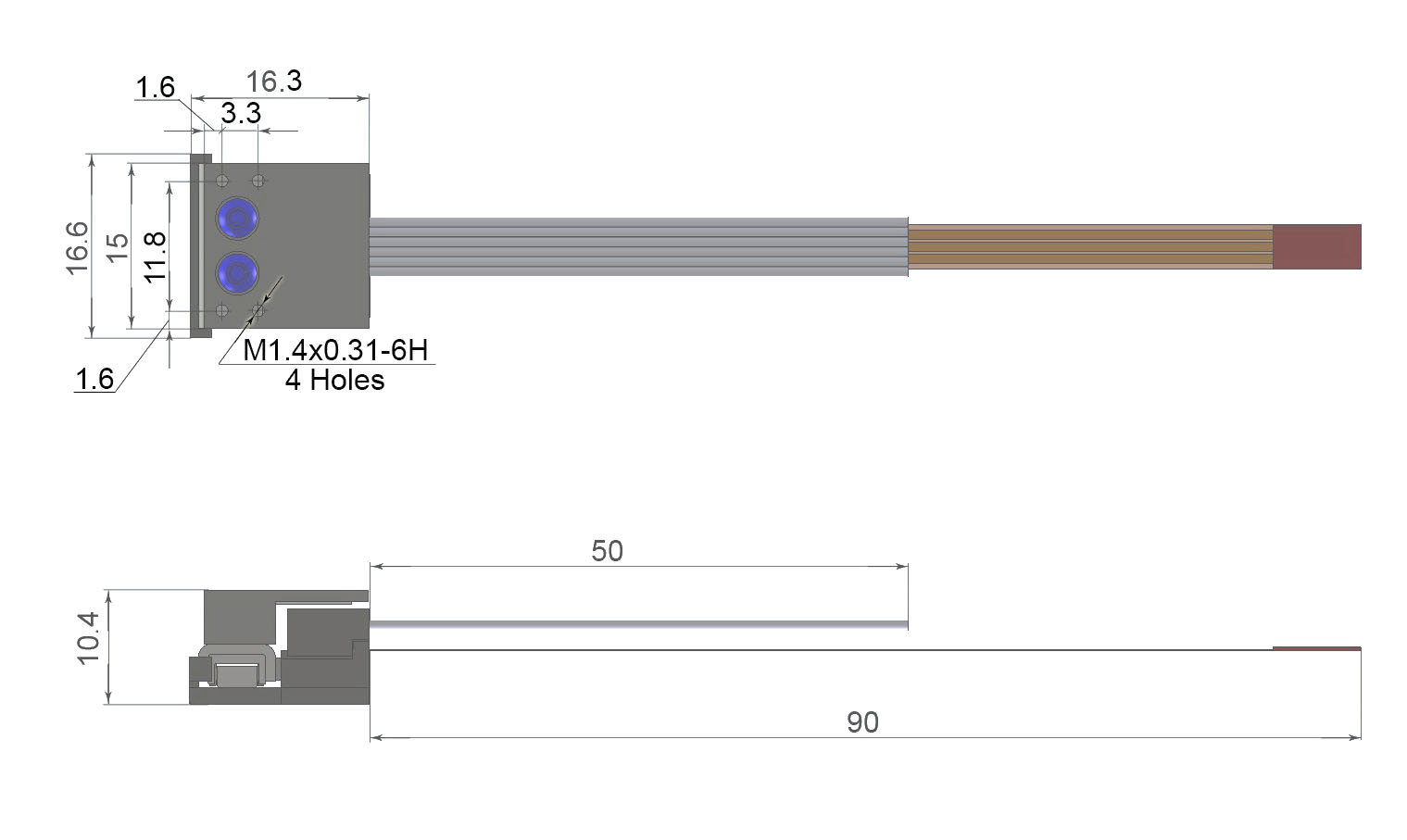

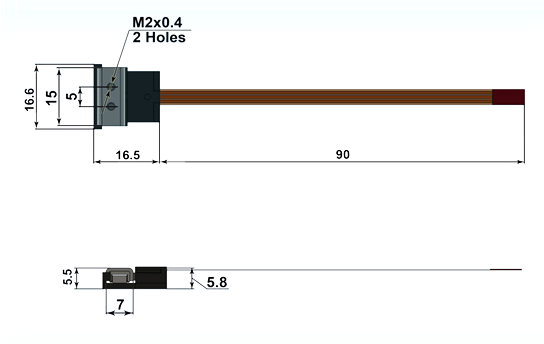

Actuator Dimensions	16,6 × 16,5 × 5,8mm

Ordering Information

Model	Part Number	Description
LRMO	ROMO-011-0270	LRMO Linear motor, plastic enclosure, without Encoder
LRMO-KIT	ROMO-011-0271	LRMO Linear motor, plastic enclosure, without Encoder, ROLR-PCB Electronic Driver PCB, cables, 120/240 VAC to 5 V DC or 7,5 V DC wall power adapter

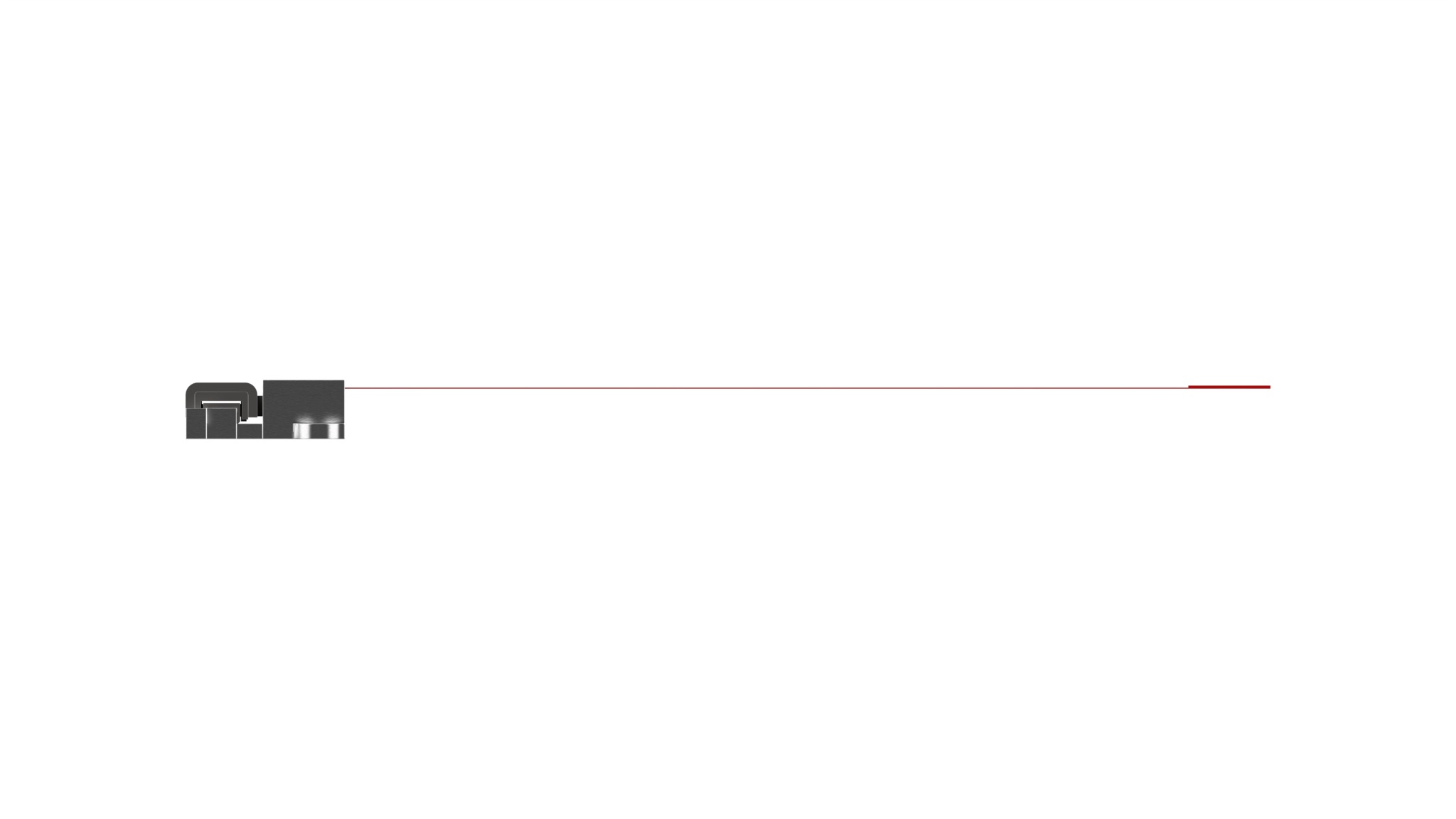

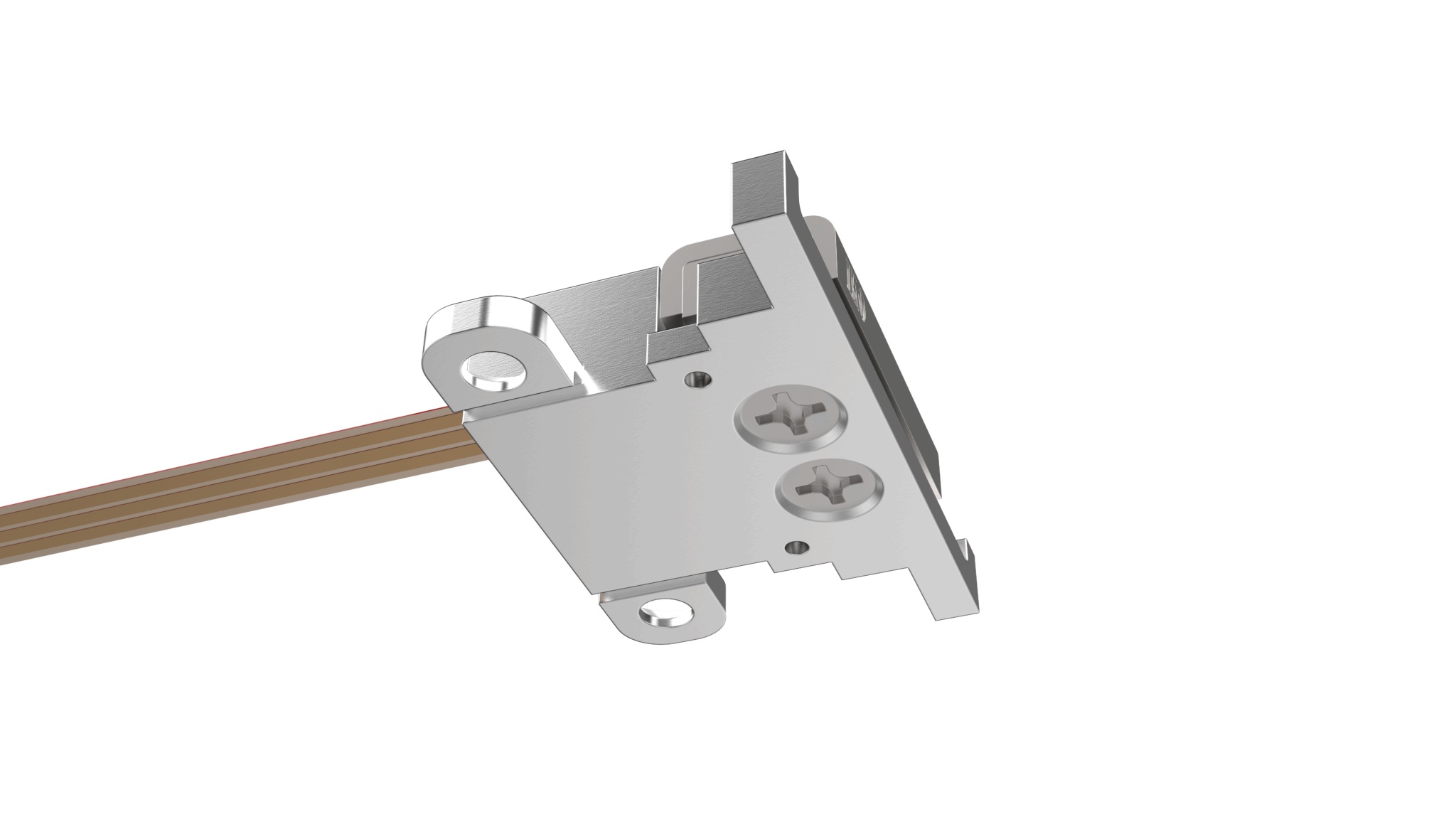

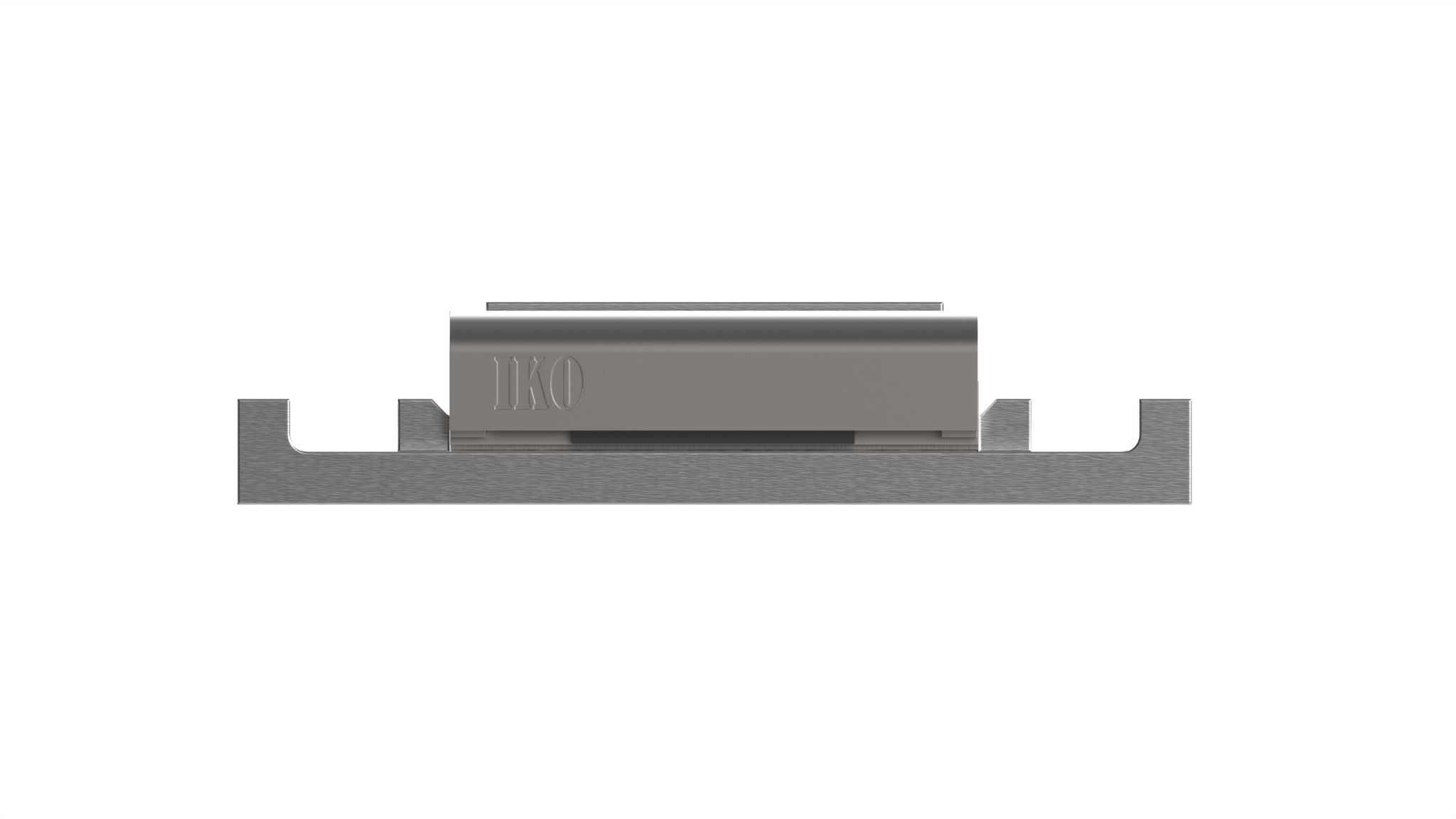

LRMO-M	ROMO-012-0270	LRMO Linear motor, metal enclosure, without Encoder
LRMO-M-KIT	ROMO-012-0271	LRMO Linear motor, metal enclosure, without Encoder, ROLR-PCB Electronic Driver PCB, cables, 120/240 VAC to 5 V DC or 7,5 V DC wall power adapter
