LRMO-XYZ

Ultra-Compact Piezoelectric XYZ Stage

Introducing the LRMO-XYZ the world’s smallest lightweight piezoelectric XYZ platform designed for superior precision and expanded functionality for advanced applications.

Key Advantages of LRMO-XYZ System

Compact light weight design
Superior Resolution: > 40 nm = 25,000 steps per mm of linear travel with 9 mm of travel per axis
Max Speed: ca. 0,15 m/s
Fast Response Time: ca. 30 µs
Low Voltage Design: 5 V DC
Zero power consumption in hold mode
Optical encoder (optional): 2,66 µm close loop resolution

Design Principle

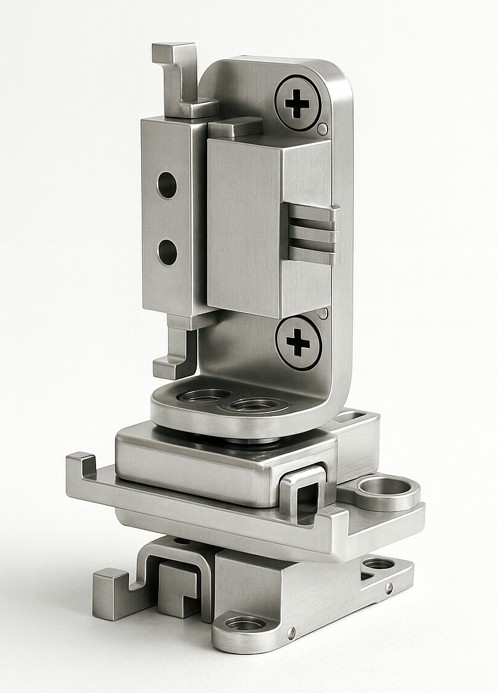

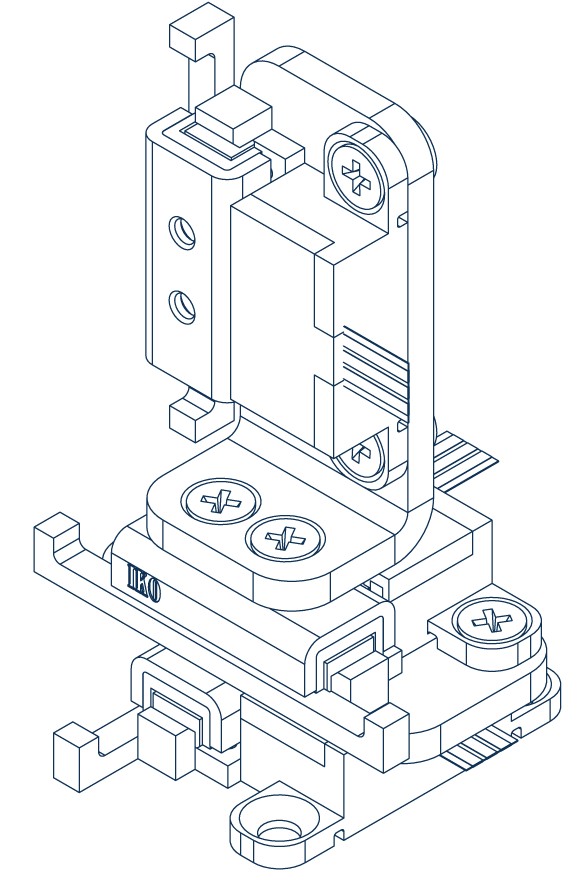

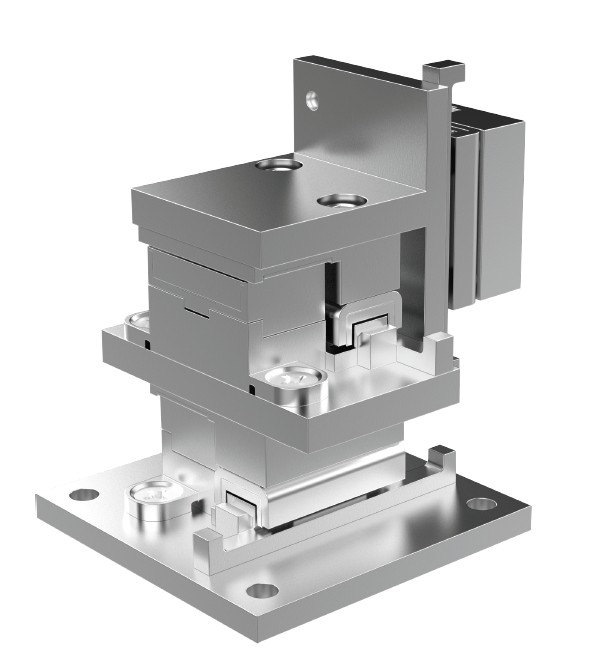

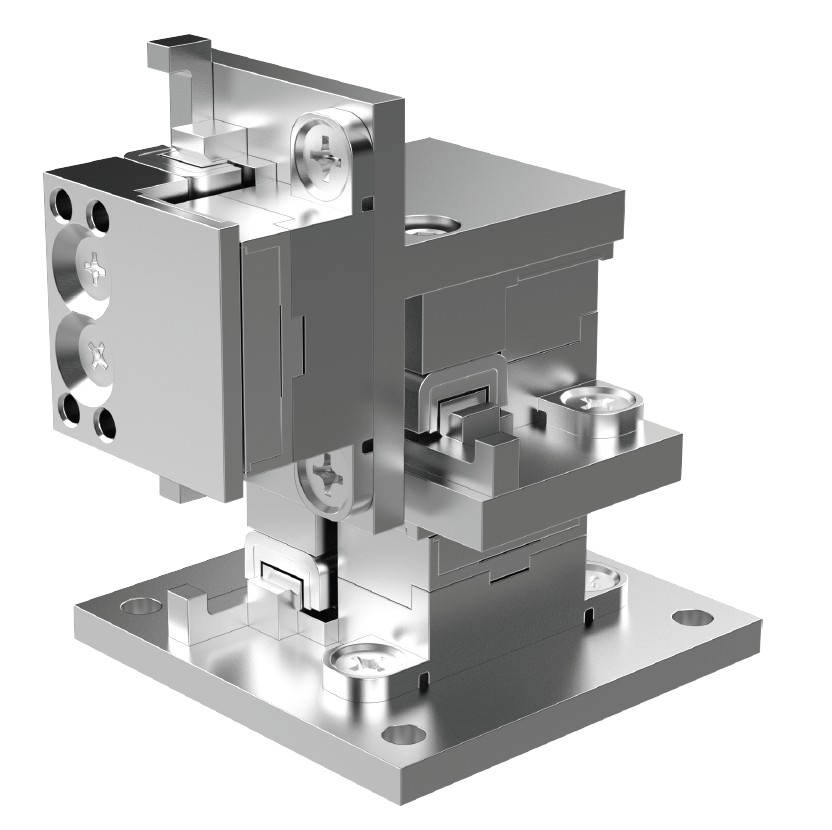

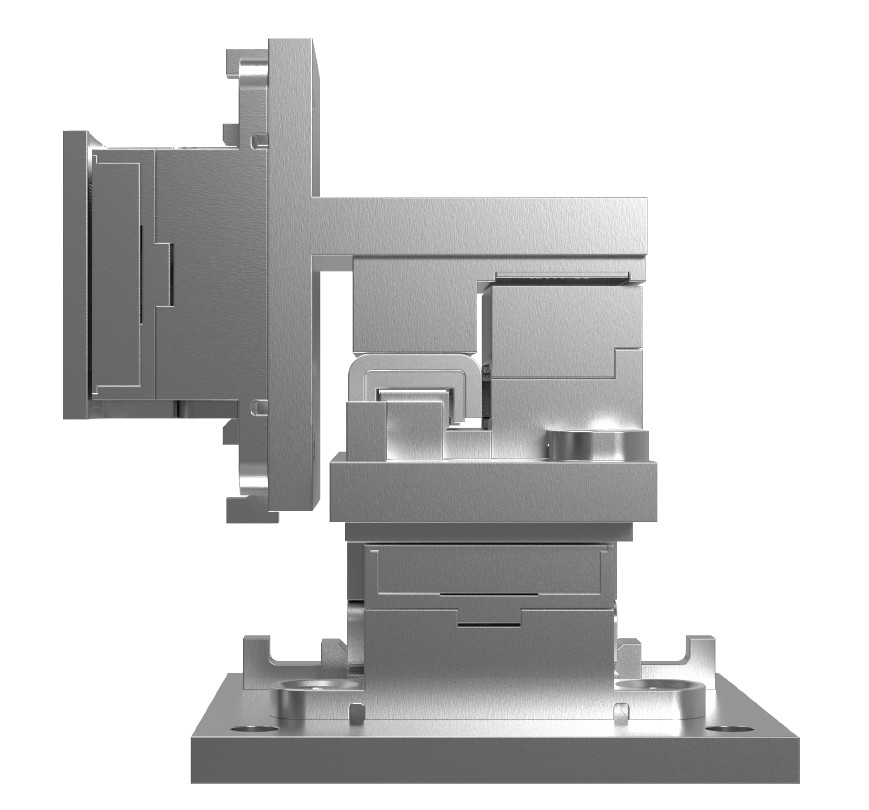

The LRMO-XYZ system integrates three precision miniature linear piezomotors (PMC Model# LRMO) into a compact XYZ stage, providing precise multi-axis motion in an ultra-small footprint. It is ideal for space-limited applications where silent operation, zero backlash, and sub-micron resolution are required. The LRMO-XYZ offers reliable, high-precision XYZ motion control for delicate applications where traditional XYZ designs are too bulky, heavy or generate electromagnetic interference, making it ideal for next-generation motion solutions in optics, life sciences, and precision instrumentation.

Electronic Driver Supports UART & I2C

The electronic driver is designed to offer an economical interface for user control. Motion of the motor is achieved via PWM (Pulse Width Modulation) control signals. The driver PCB also supports UART and I2C interfaces. The driver PCB is pre-programmed for software configurability, optimizing drive signals and integrating controls. Motor operation can be finely regulated through closed-loop control using an optional encoder factory-installed on the actuator.

Technical Data

Part No.	LRMO-XYZ
Power Supply	5,0 V DC
Push/Pull Force	≥ 0,2 N
Self-Braking Force	≥ 0,25 N
Actuator Response Time	» 30 µs
Travel Range	9,0 mm
Max Speed (continuous mode)	» 150 mm/s
Minimum Linear Step	< 0,04 µm (<40 nm)
Linear Backlash at Change of Direction	< 0,1 µm
Elastic Stiffness	» 200 mN/µm
Linear Hysteresis	<2,0 µm
Pitch	<1 mrad
Maximum Moment Mx0.07 Nm	0,07 Nm
Roll	< 0,5 mrad
Maximum Moment My	0,12 Nm
Yaw	<1 mrad
Maximum Moment Mz	0,9 Nm
Vertical Runout	3,0 µm
Horizontal Runout	6,0 µm
Frequency Response	4 kHz
Operating Temperature	-20 °C to 80 °C
Maximum Load (at listed specification)	20 g
Maximum Tolerable Load	4,2 kgf
Max Current (continuous mode)	300 mA
Max. Current at the velocity 10mm/s (PWM mode)	30-40 mA
System Weight	3,7 g

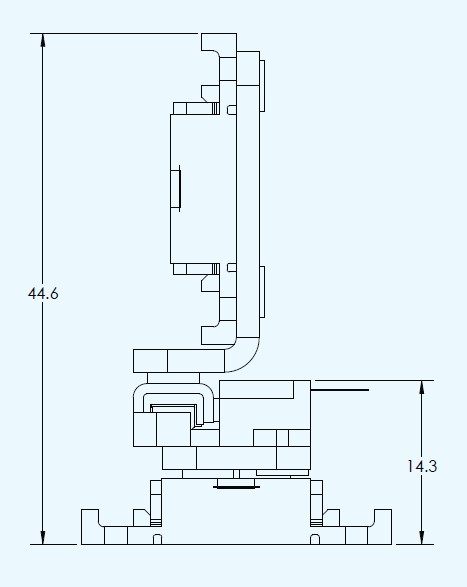

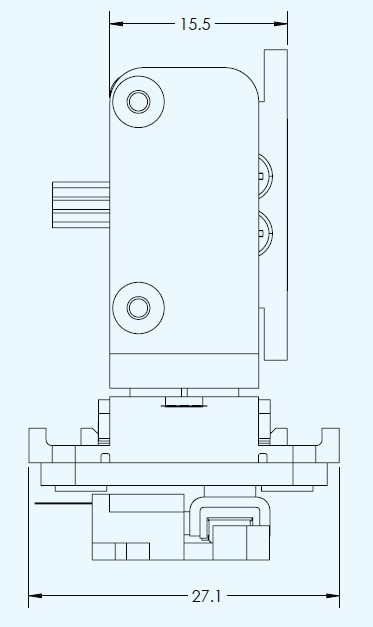

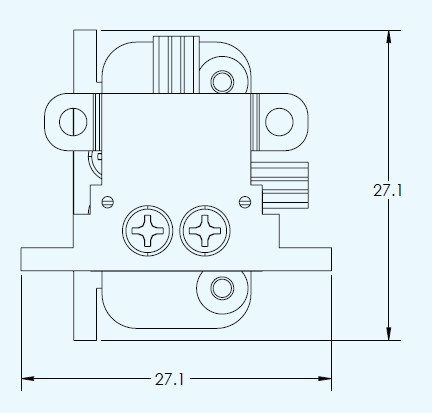

System Dimensions	44,6 x 27,1 x 27,1 mm

Ordering Information

Part Number	Description
LRMO-XYX-SYS	3-Axis positioning system (non-encoder version), 3 X Driver PCB’s, I2C adapter board, Raspberry Pi Controller interface with LCD Display and Python API, 120/240 VAC to 5 VDC power adapter and cables.
LRMO-XYZ-E-SYS	3-Axis positioning system (with optical encoders), 3 X Driver PCB’s, I2C adapter board, Raspberry Pi Controller interface with LCD Display and Python API close-loop software, 120/240 VAC to 5 VDC power adapter and cables.
